Default Switch and Jumper Settings

GPIO DIP Switch SW2

See
Figure A-1
X-Ref Target - Figure A-1
Table A-1: SW2 Default Switch Settings
VC707 Evaluation Board
UG885 (v1.4) May 12, 2014
Figure 1-2, page 10 Item 24 for location of SW2. Default settings are shown in
and details are listed in
ON Position = 1

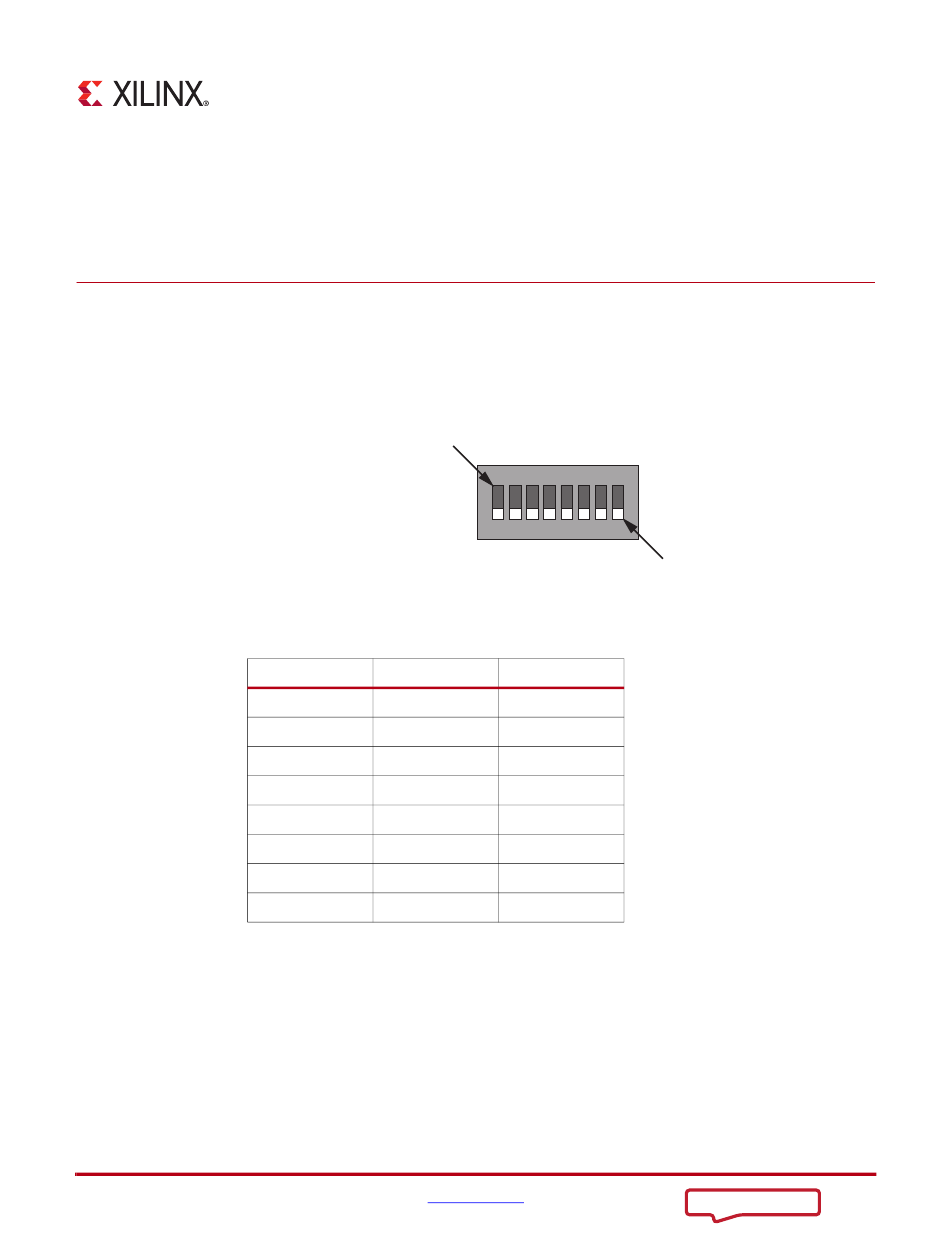

Figure A-1: SW2 Default Settings
Position Function
1 GPIO_DIP_SW0
2 GPIO_DIP_SW1
3 GPIO_DIP_SW2
4 GPIO_DIP_SW3
5 GPIO_DIP_SW4
6 GPIO_DIP_SW5
7 GPIO_DIP_SW6
8 GPIO_DIP_SW7
www.xilinx.com
Table A-1.
1 2 3 4 5 6 7 8
SW2
OFF Position = 0
Default
Off
Off
Off
Off
Off
Off
Off
Off
Appendix A
UG885_aB_01_020612
