Chapter 1: VC707 Evaluation Board Features
X-Ref Target - Figure 1-33
VCC12_P
Power Plane
Power Controller 1 (Core)
From SW12
PMBus Address 52
Switching Regulator
1.0V at 20A
Switching Regulator
1.8V at 20A
Switching Regulator
3.3V at 10A
Switching Regulator
0V - 3.3V at 10A
Power Controller 2 (Aux)
PMBus Address 53
Switching Regulator
2.5V at 10A
Switching Regulator
1.5V at 10A
Switching Regulator
1.0V at 10A
Switching Regulator
1.2V at 10A
Power Controller 3
PMBus Address 54
Switching Regulator
2.0V at 10A
Switching Regulator
1.0V at 10A
Switching Regulator
1.8V at 10A
Switching Regulator
1.8V at 10A
70
Send Feedback
U42
U25
U20
U12
U43
U21
U22
U64
U62
U63

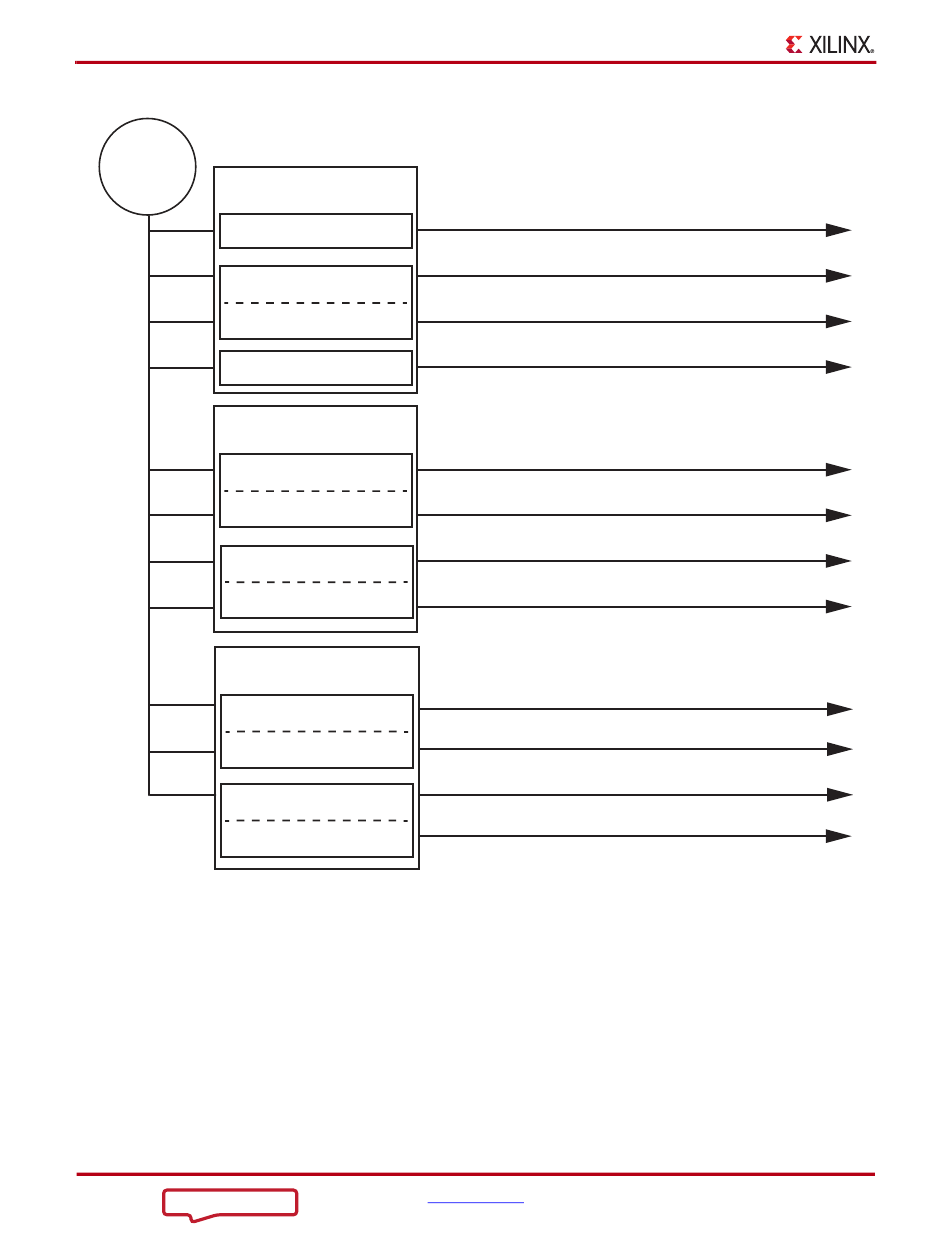

Figure 1-33: Onboard Power Regulators
www.xilinx.com
VCCINT
VCCAUX
VCC3V3
VADJ
VCC2V5
VCC1V5
MGTAVCC
MGTAVTT
VCCAUX_IO
VCCBRAM
MGTVCCAUX
VCC1V8
UG885_c1_30_032412
VC707 Evaluation Board
UG885 (v1.4) May 12, 2014
