Summary of Contents for Xilinx VC707

  • Page 1 VC707 Restoring Flash Contents April 2015 XTP208...

  • Page 2: Revision History

    NOTICE OF DISCLAIMER: The information disclosed to you hereunder (the “Information”) is provided “AS-IS” with no warranty of any kind, express or implied. Xilinx does not assume any liability arising from your use of the Information. You are responsible for obtaining any rights you may require for your use of this Information.
  • Page 3 Overview Xilinx VC707 Board Software Requirements VC707 Setup Restoring VC707 G18 BPI Flash References Note: This presentation applies to the VC707...
  • Page 4 – BPI Slot #2 MIG XTP206 – BPI Slot #3 IBERT XTP210 – BPI Slot #4 BIST XTP205 Files for Flash Restoration – VC707 Restoring Flash Design Files (2015.1 C) – Available through http://www.xilinx.com/vc707 Note: Presentation applies to the VC707...

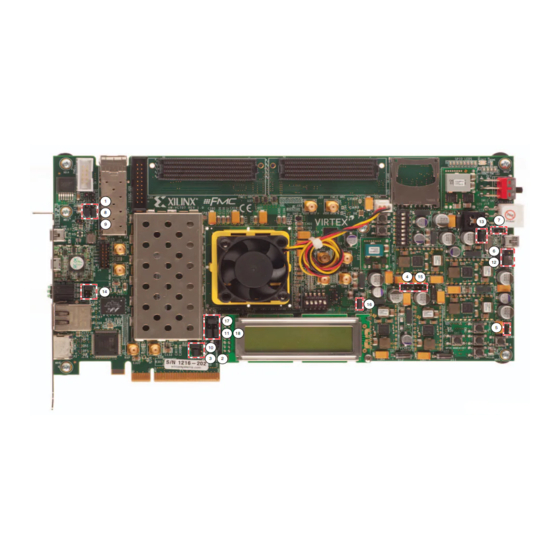

  • Page 5 Xilinx VC707 Board...
  • Page 6 Vivado Software Requirements Xilinx Vivado Design Suite 2015.1, Design Edition Note: Presentation applies to the VC707...
  • Page 7 Restoring VC707 G18 BPI Flash...
  • Page 8 VC707 Setup Connect a USB Type-A to Micro-B cable to the USB JTAG (Digilent) connector on the VC707 board – Connect this cable to your PC – Power on the VC707 board...
  • Page 9 Restoring VC707 G18 BPI Flash Unzip the VC707 Restoring Flash Design Files (2015.1 C) ZIP file to your C:\ drive – Available through http://www.xilinx.com/vc707 Note: Presentation applies to the VC707...
  • Page 10 Set SW11 to 00010 (1 = on, Position 1 → Position 5, left to right) – This enables Master BPI configuration from the Linear Flash • Flash A25, A24 = 00 • FPGA mode pins M[2:0] = 010 Note: Presentation applies to the VC707...
  • Page 11 Restoring VC707 G18 BPI Flash Set SW2 to 00000000 (1 = on, Position 1 → Position 8) – Some SW2 settings can cause the MultiBoot design to interfere with iMPACT...
  • Page 12 Restoring VC707 G18 BPI Flash Open a Vivado Tcl Shell: Start → All Programs → Xilinx Design Tools → Vivado 2015.1 → Vivado 2015.1 Tcl Shell Note: Presentation applies to the VC707...
  • Page 13 Restoring VC707 G18 BPI Flash In the Vivado Tcl Shell type: cd C:/vc707_restore_flash source vc707_program_bpi.tcl Note: Takes about 6 minutes...
  • Page 14 – BPI Slot #2 MIG • See XTP206 - VC707 MIG Tutorial – BPI Slot #3 IBERT • See XTP210 - VC707 GTX IBERT Tutorial – BPI Slot #4 BIST • See XTP205 - VC707 BIST Tutorial Note: Presentation applies to the VC707...
  • Page 15 References...
  • Page 16 References 7 Series Configuration – 7 Series FPGAs Configuration User Guide • http://www.xilinx.com/support/documentation/user_guides/ug470_7Series_Config.pdf Vivado Release Notes – Vivado Design Suite User Guide - Release Notes – UG973 • http://www.xilinx.com/support/documentation/sw_manuals/xilinx2015_1/ ug973-vivado-release-notes-install-license.pdf – Vivado Design Suite 2015.x - Vivado Known Issues •...
  • Page 17 Documentation...
  • Page 18 – Design Advisory Master Answer Record for Virtex-7 FPGAs • http://www.xilinx.com/support/answers/42944.htm VC707 Documentation – Virtex-7 FPGA VC707 Evaluation Kit • http://www.xilinx.com/products/boards-and-kits/ek-v7-vc707-g.html – VC707 Getting Started Guide – UG848 • http://www.xilinx.com/support/documentation/boards_and_kits/ vc707/ug848-VC707-getting-started-guide.pdf – VC707 User Guide – UG885 • http://www.xilinx.com/support/documentation/boards_and_kits/ vc707/ug885_VC707_Eval_Bd.pdf...
