Office Alarms Panel

Overview

....................................................................................................................................................................................................................................
Purpose
....................................................................................................................................................................................................................................
365-575-783R1.1
Issue 1, June 2002
This section provides information on the Office Alarms Panel that
provides visual alarm indicators of the overall operating status of the
™
LambdaXtreme Transport network element.
Office Alarms Panel Location
The Office Alarms panel is located on the Fan Assembly and Office
Alarm Display Assembly circuit pack, which is visible from the front
of the network element. In a System Bay, it is located between
shelves 3 and 4. In a Repeater, it is located between shelves 1 and 2.
Display
Figure 1-1, "LambdaXtreme Transport User Panel" (1-7)
Office Alarms panel, located in the System Bay, between each pair of
shelves, on the 'Fan Assembly & Office Alarms Assembly' circuit
pack.

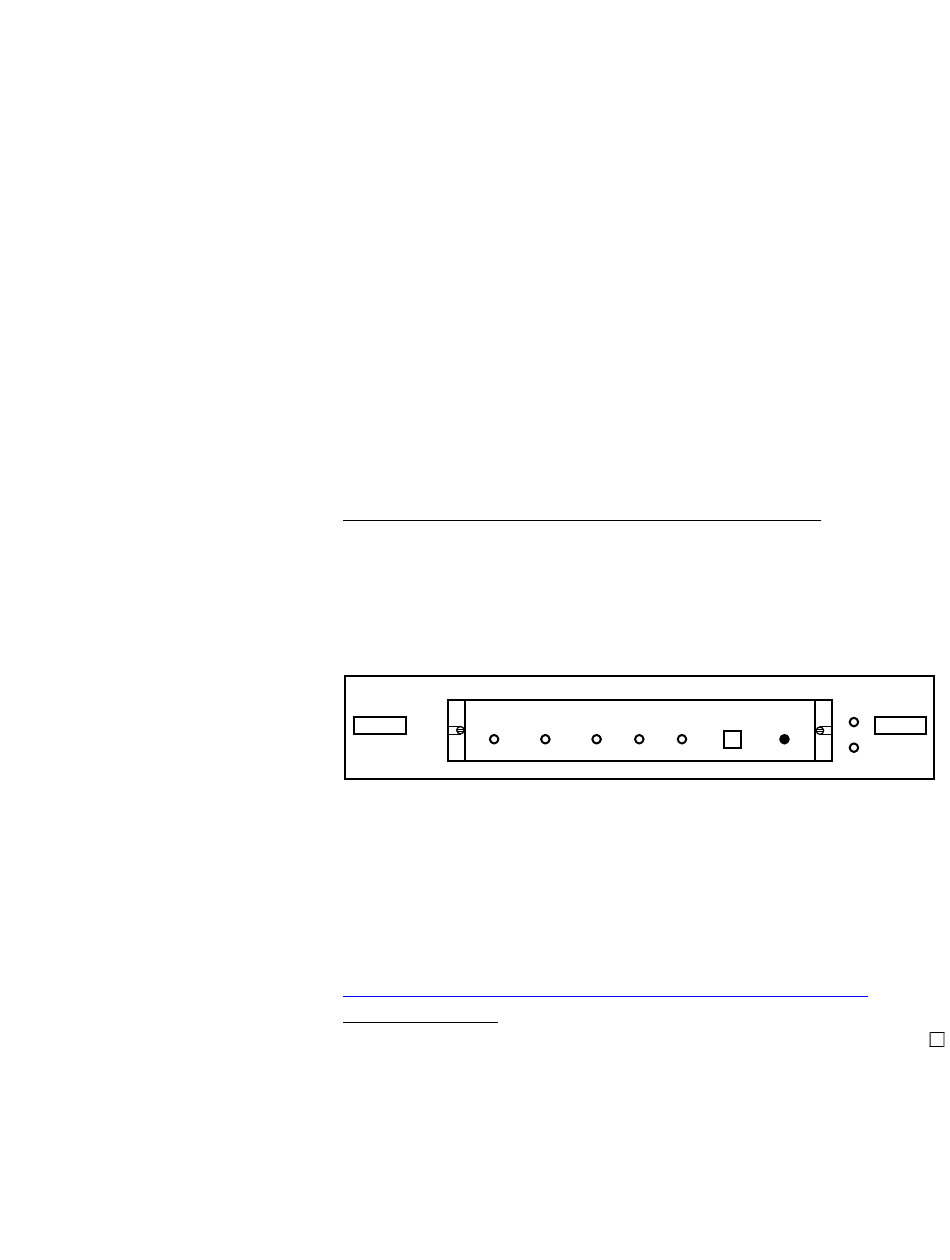

Figure 1-1 LambdaXtreme Transport User Panel
FAN ASSEMBLY & OFFICE ALARM DISPLAY ASSEMBLY
CR
PROMPT DEFFERED
The Office Alarms panel features from left to right, three alarm
indicator LEDs, two status indicator LEDs, and two control
buttons/switches. Each LED is labeled with the SONET-based name
above the light, and the SDH-based name below. In case of suspected
trouble, the LEDs can be tested using the procedure detailed in
"TAP-612: Address 'Test alarm in progress' and 'Test LED in
progress'" (6-177).
Lucent Technologies - Proprietary
See notice on first page
OFFICE ALARMS
MJ MN ABN NE ACTY
INFO-N SUPPRESS
Alarms and Indicators
shows the
FAULT
ACO RESTART
ACTIVE
1 - 7
