APR for a Two-Fiber Cut

....................................................................................................................................................................................................................................
APR Activation
....................................................................................................................................................................................................................................
3 - 8

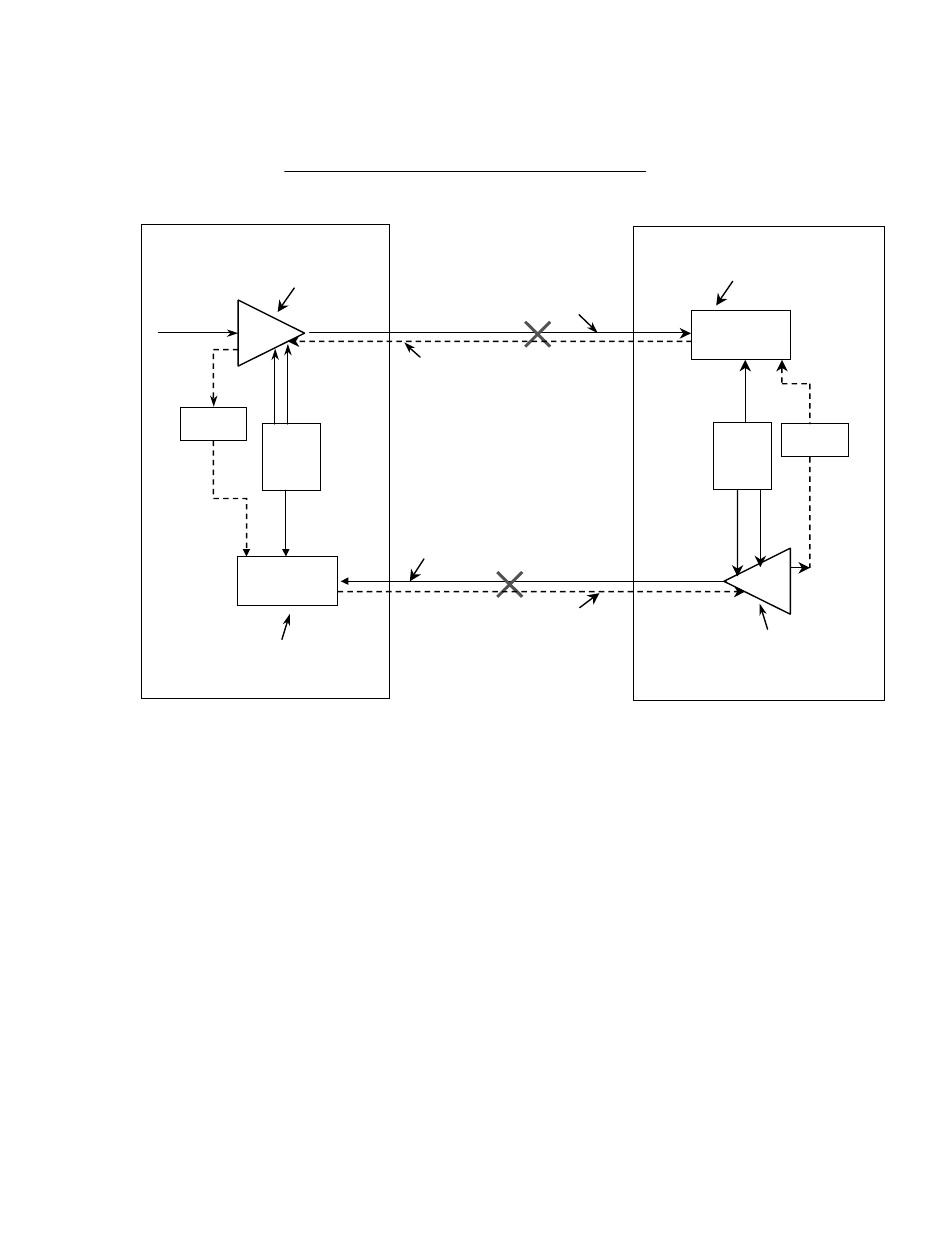

Figure 3-3, "APR for two-fiber cuts" (3-8)
Figure 3-3 APR for two-fiber cuts
NE1
OSC LOS
OA
Copropagating
Raman
SUPVY
RPG
RP
OSC LOS
When both fibers between two adjacent NEs are cut simultaneously,
the two NEs react identically because both NEs detect a loss of
Supervisory signal and loss of DWDM signal. Each NE detects the
loss of the supervisory channel and initiates the APR procedure to
lower the copropagating and counterpropagating Raman power
associated with the two fibers.
