DLP-606: Inspect and Clean Optical Fiber
Connectors
....................................................................................................................................................................................................................................
7 - 1 4
CLETOP cassette shutter door is now open and ready for cleaning the
connector.

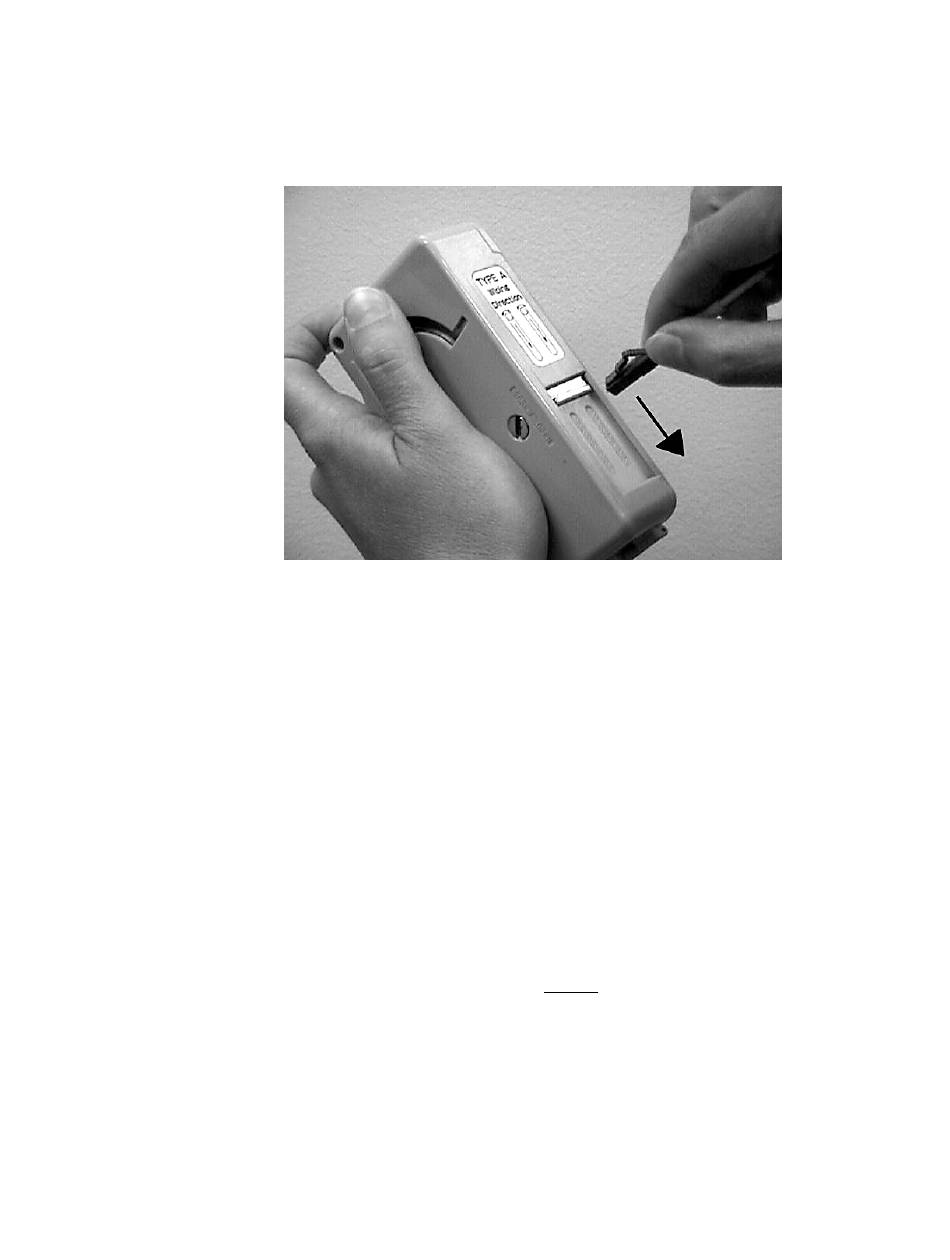

Figure 7-3 CLETOP Cleaner
............................................................................................................................................................
Insert and press the connector ferrule endface perpendicular against
4
the cleaning cloth in the first of two slots of the cleaner.
Drag it down in the direction indicated by the arrows on the cleaner.
Do not release the lever of the cassette.
............................................................................................................................................................
Lift the connector from the first slot and rotate it 90 degrees and
5
repeat the wiping procedure using the second slot. Be sure the ferrule
is pressed snug against the cleaning cloth while dragging the ferrule to
assure the proper cleaning action.
............................................................................................................................................................
Release the cassette lever allowing the shutter door to close to its
6
initial position. Continue with
............................................................................................................................................................
Wrap a Luminex cleaning cloth around the ferrule and rotate the
7
connector housing, cleaning the outside periphery of ferrule.
Follow this by folding an unused portion of the cloth over the end of
the ferrule endface and then with light pressure from the thumb,
Lucent Technologies - Proprietary
See notice on first page
Detail Level Procedures
Step 8.
