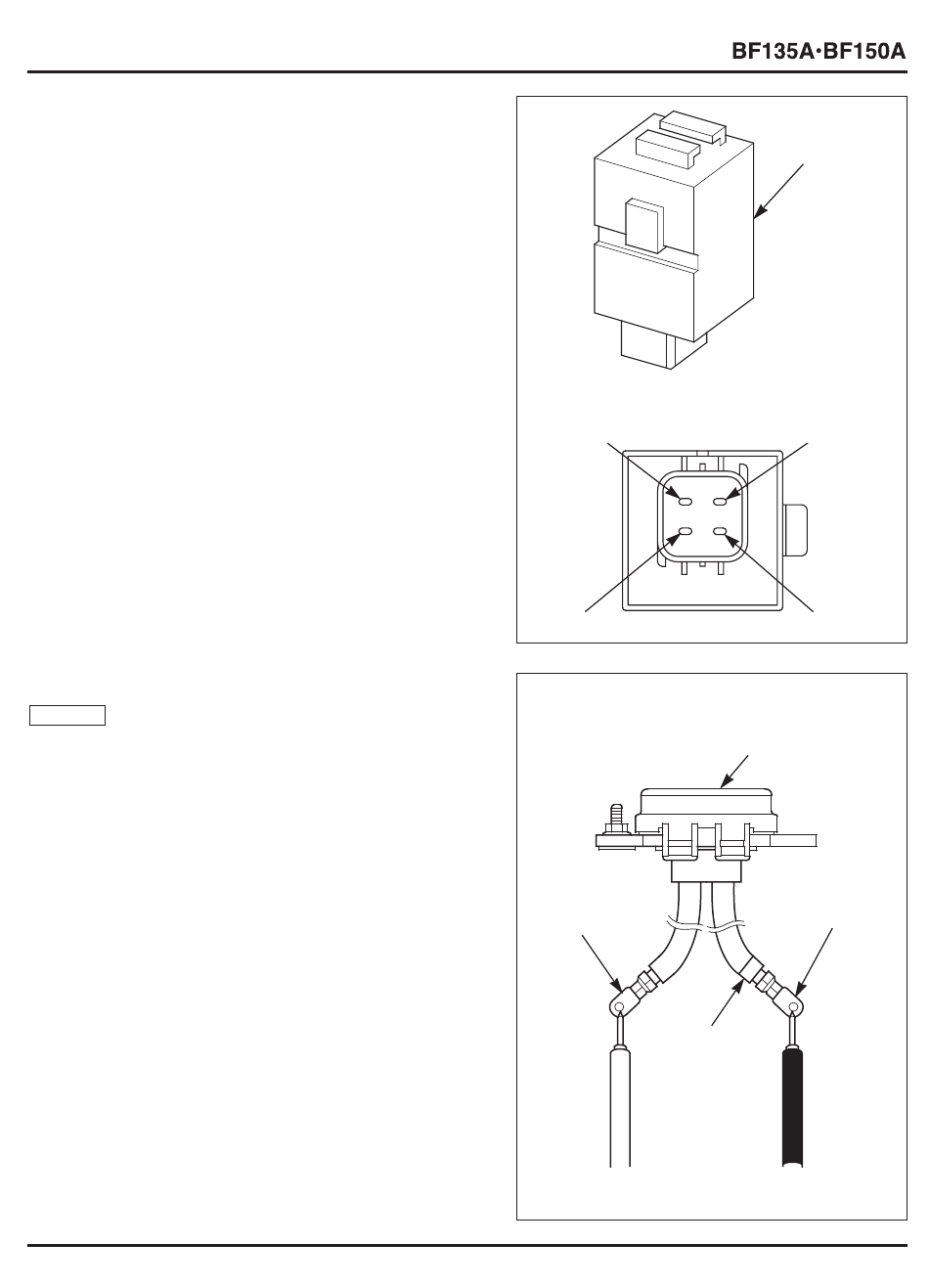

• LAF RRELAY
Connect the battery positive (+) terminal to the LAF relay No.3
terminal and the battery negative (–) terminal to the No.4
terminal. There must be continuity between the No.1 and No.2
terminal of the LAF relay.
• ALTERNATOR FUSE BOX/FUSE
NOTICE
Disconnect the positive (+) and negative (–) starter cables from
the battery before inspection and replacement of the alternator
fuse box/fuse.
1) Check the 90A fuse for continuity.
– If there is no continuity, replace the 90A fuse with the
spare fuse.
– If there is continuity, install the 90A fuse on the alternator
fuse box and check for continuity between the cable
terminals.
2) When installing the spare fuse on the reverse side of the
cover, install so that the stamp of "90A" is at your side.
18-25
[2]
CONNECTOR VIEWED FROM
THE FRONT SIDE
[3] NO.3 TERMINAL
[6] No. 4 TERMINAL
[4]
To STARTER
MOTOR B
TERMINAL
[3]
RED TAPE
[1]
LAF RELAY
[4]
No. 1 TERMINAL
[5] No. 2 TERMINAL
[1]
ALTERNATOR
FUSE BOX
[2]
To ALTERNATOR
B TERMINAL
