Honda BF135A Manual page 123

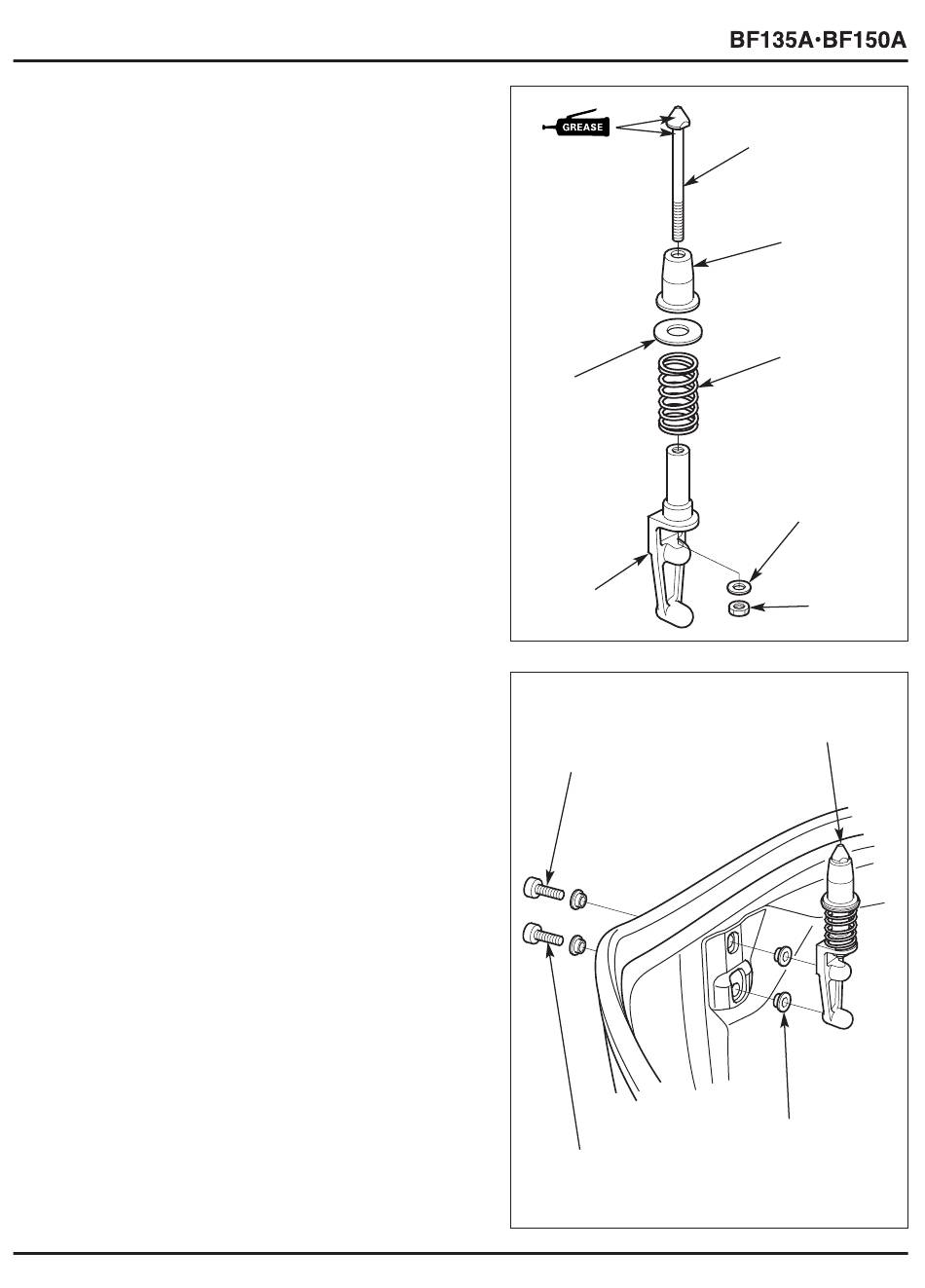

e. HOOK BRACKET ASSEMBLY
1) Apply grease to the cover lock bolt installation part of the
hook bracket.
2) Install the lock adjusting spring, 12 mm washer and the
hook damper on the hook bracket.
3) Apply grease to the flanged part of the cover lock bolt.
Apply grease to the straight part under the flange of the
cover lock bolt, too. Install the cover lock bolt on the hook
bracket.
4) Position the 6 mm washer and 6 mm hex. nut on the cover
lock bolt and tighten the 6 mm hex. nut securely.
f. HOOK BRACKET ASSEMBLY INSTALLATION
1) Install the four 6.5 x 10 x 11.5 mm distance collars on the
engine cover (Rear L./R. side hook brackets only).
Install the three 6.5 x 10 x 11.5 mm distance collars on the
engine cover (Front side hook bracket only).
2) Position the hook bracket assembly on the engine cover
and secure it with the two 6 x 20 mm socket bolts (Rear
L./R. side hook brackets only).
Position the hook bracket assembly on the engine cover
and secure it with the 6 x 20 mm socket bolt and the 6 x 16
mm socket bolt (Front side hook bracket only).
4-4
[7]
12 mm
WASHER
[6]
HOOK
BRACKET
[1]
6 x 20 mm SOCKET BOLT
(2) [Rear L./R. sides only]
(1) [Front side only]
[3]
6.5 x 10 x 11.5 mm
[4]
DISTANCE COLLAR
6 x 16 mm SOCKET
(4) [Rear L./R. sides only]
BOLT
(3) [Front side only]
[Front side only]
[1]
COVER LOCK
BOLT
[2]
HOOK
DAMPER
[3]
LOCK
ADJUSTING
SPRING
[4]
6 mm
WASHER
[5]
6 mm HEX.
NUT
[2]
HOOK BRACKET
ASSEMBLY
