19) Push in the head of the mud guard clips in the numbered
sequence securely.
20) Check that the lip on the reverse side of the under cover
grommet is set on the engine under cover.
• Check that the under cover grommet adheres to the
engine under cover securely.
21) Connect the power tilt switch 3P connector.
22) Install the power tilt switch 3P connector on the connector
bracket B.
Clamp the alternator fuse cable, PGM-FI main relay wire
and the power tilt switch wire with the wire harness clip.
23) Tighten the flush plug cap on the R. engine under cover.
24) Install the following parts.
– Electric part cover (P. 3-22)
– Front separate cover (P. 4-7)
– Engine cover (P. 4-2)
4-19

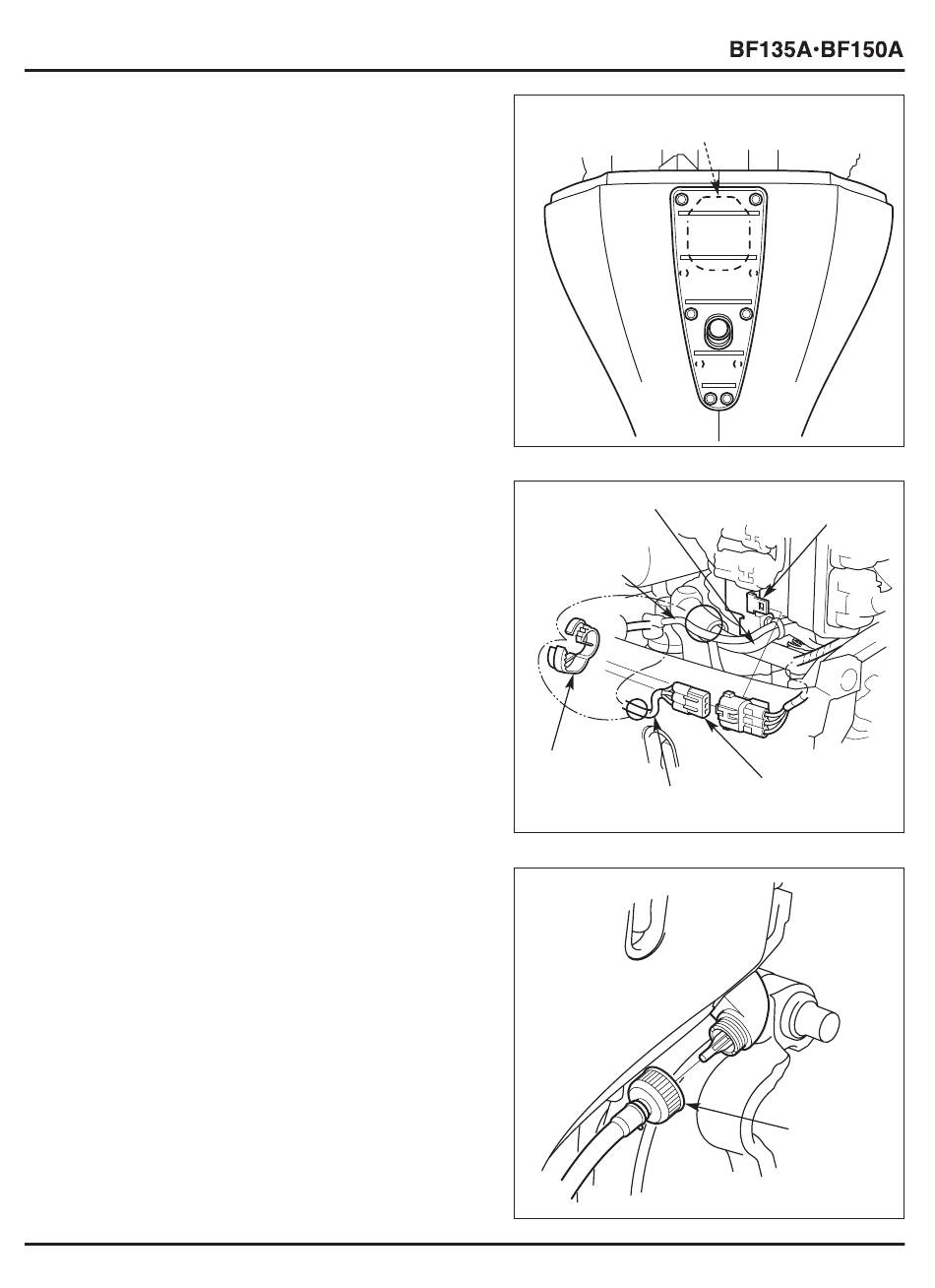

[1] LIP on the reverse side
of the grommet.
⑤
①
③
[2] ALTERNATOR FUSE
CABLE
[1]
PGM-FI
MAIN RELAY
WIRE
[6]
WIRE
HARNESS
[5]
CLIP
POWER TILT
SWITCH WIRE
⑥
②
④
[3] CONNECTOR
BRACKET B
[4]
POWER TILT
SWITCH
3P CONNECTOR
[1]
FLUSH PLUG
CAP
