8) Align the projections at the front side (i.e. swivel case side)
of the L. engine under cover with the recess in the R. engine
under cover as shown.
9) With the R. engine under cover held in alignment with the
L. engine under cover described in step 7, install the R.
engine under cover by aligning the hole in the R. engine
under cover with the projection on the R. side cover
bracket.
10) Check that the cover lock cable B sets underside the R.
engine under cover as shown.
4-16
[4]

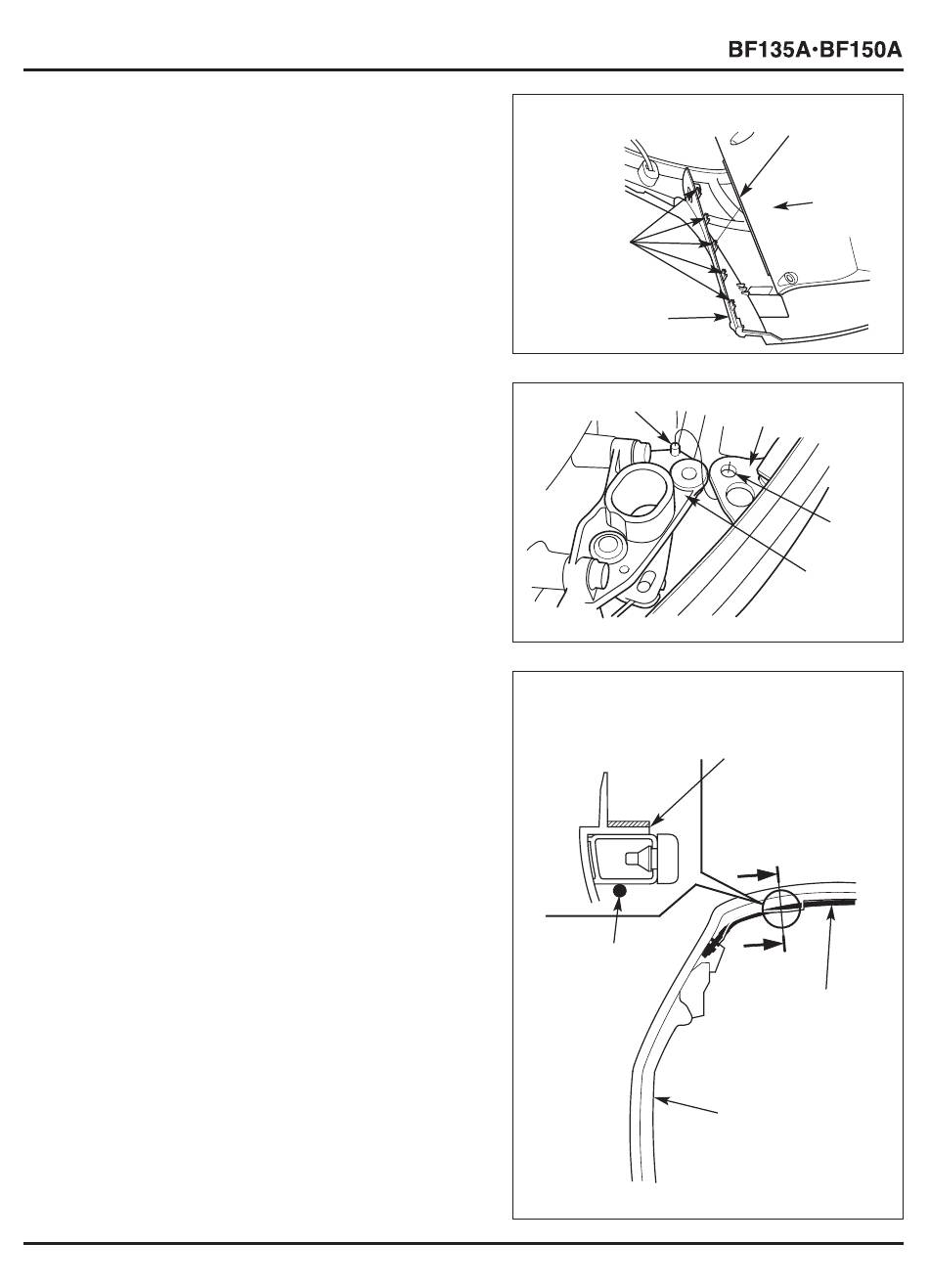

PROJECTIONS
[3]
L. ENGINE UNDER
COVER
[1] PROJECTION
[1]
Cross-section
viewed from A-A
side.
[3] COVER LOCK
CABLE B
[1] RECESS
[2]
R. ENGINE
UNDER
COVER
[2] R. ENGINE UNDER
COVER
[3]
HOLE
[4] R. SIDE
COVER
BRACKET
[2]
R. ENGINE UNDER
COVER
A
A
[3]
COVER LOCK
CABLE B
[2]
R. ENGINE UNDER
COVER
