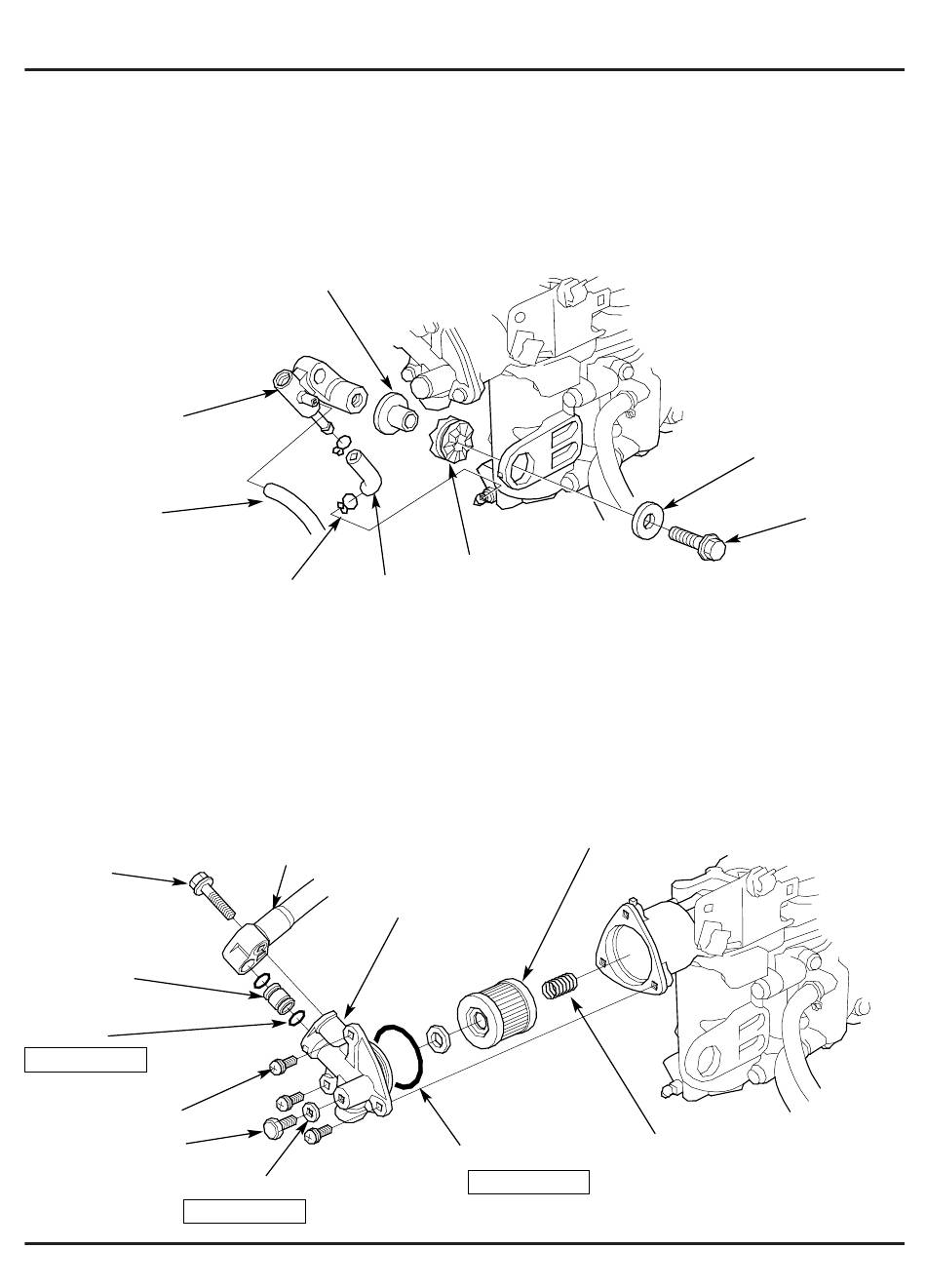

b. DISASSEMBLY
1) Disconnect the 4.5 x 55 mm fuel tube.
2) Remove the 8 x 35 mm flange bolt and the 8 mm washer.
Remove the vapor separator stay.
3) Remove the collar and the vapor separator grommet.
[7]
VAPOR SEPARATOR
STAY
[6]
3.5 x 420 mm
DRAIN TUBE
[5]
TUBE CLIP B8 (2)
4) Remove the 6 x 25 mm flange bolt and remove the high
pressure side fuel hose.
5) Remove the collar and the O-rings.
Replace the O-rings on assembly.
6) Remove the three 5 mm screws and remove the strainer
cover, O-ring, fuel strainer and the spring.
6 x 25
[9]
COLLAR
[5]
O-RING (2)
Do not reuse.
[8] 5 mm SCREW (3)
[7] SERVICE CHECK
BOLT
[6]
SEALING WASHER
Do not reuse.
5-113
[1] COLLAR
[4]
4.5 x 55 mm
FUEL TUBE
[1] FUEL HOSE
(HIGH PRESSURE
SIDE )
[2]
STRAINER COVER
[3]
VAPOR SEPARATOR
GROMMET
[3]
FUEL STRAINER
(HIGH PRESSURE SIDE)
[5]
O-RING
Do not reuse.
BF135A•BF150A
[2]
8 mm WASHER
8 x 35
[4] FILTER SPRING
