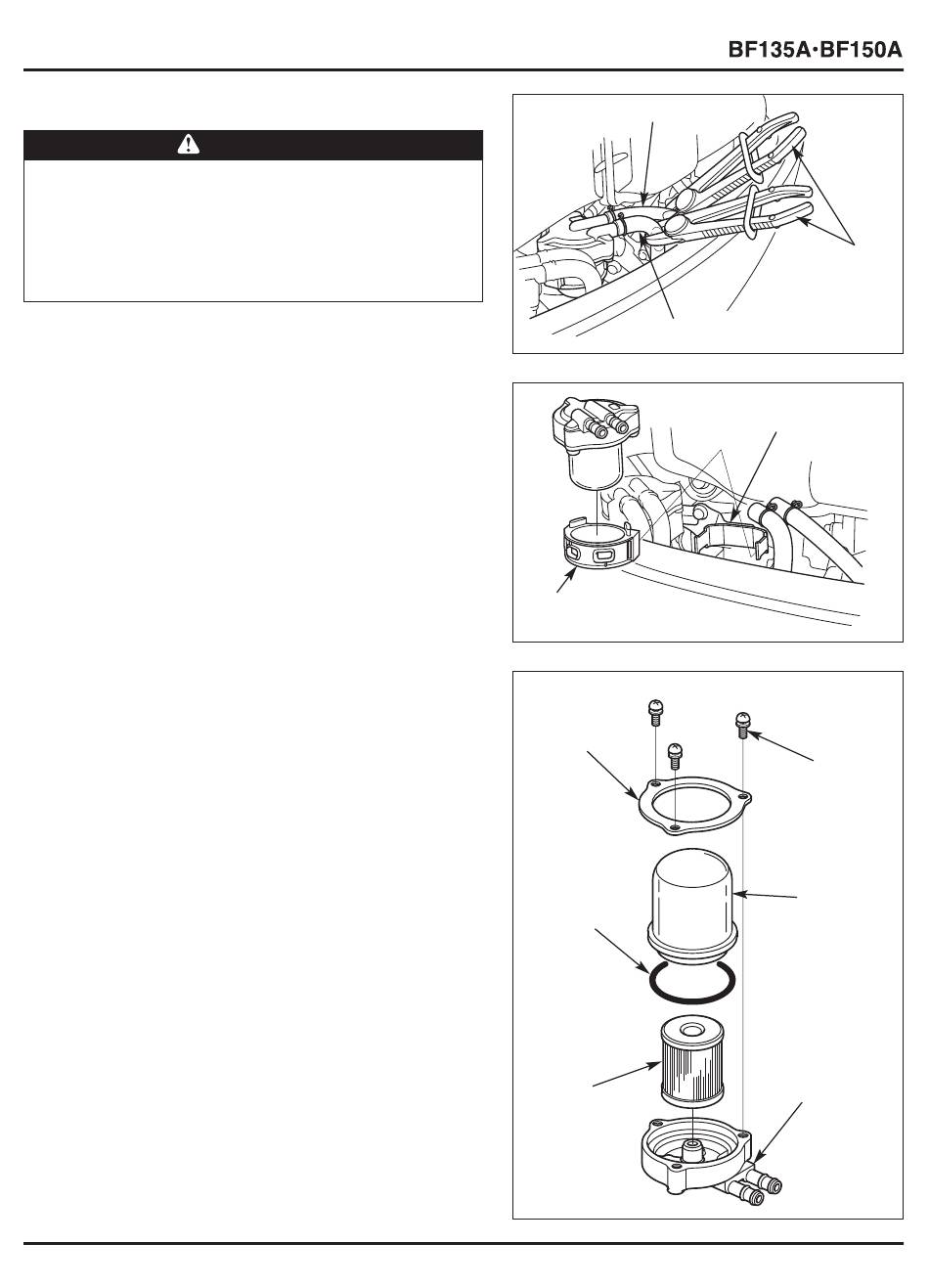

Honda BF135A Manual page 105

Removal:
Gasoline is highly flammable and explosive.
You can be burned or seriously injured when handling fuel.
• Keep heat, sparks and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
1) Clamp the fuel tube C and E securely with the two
commercially available tube clips.
2) Remove the strainer suspension from the fuel strainer stay.
3) Disconnect the fuel tube C and E from the fuel strainer (low
pressure side).
Remove the strainer suspension from the fuel strainer cup.
• Before disconnecting the fuel tubes, be sure to clamp the
fuel tubes with a tube clips to prevent the gasoline from
leaking.
Disassembly/Cleaning:
1) Remove the three 5 x 12 mm screws from the fuel strainer
body, then remove the plate and the fuel strainer cup.
2) Clean the water or sediment in the cup, and if necessary,
replace the strainer.
3) Replace the O-ring with a new one on assembly.
Assembly:
1) Install a new fuel strainer on the fuel strainer body.
2) Set a new O-ring on the fuel strainer cup.
Install the fuel strainer cup and the plate on the fuel strainer
body.
3) Tighten the three 5 x 12 mm screws to the specified torque.
TORQUE: 3.4 N . m (0.35 kgf . m, 2.5 lbf . ft)
3-16
WARNING
[1] FUEL TUBE E
[3] FUEL TUBE C
[2] STRAINER
SUSPENSION
[1]
PLATE
[6]
O-RING
[5]
FUEL
STRAINER
[2]
TUBE CLIPS
(Commercially
available)
[1] FUEL STRAINER
STAY
[2] 5 x 12 mm
SCREW (3)
[3]
FUEL
STRAINER
CUP
[4]
FUEL
STRAINER
BODY
