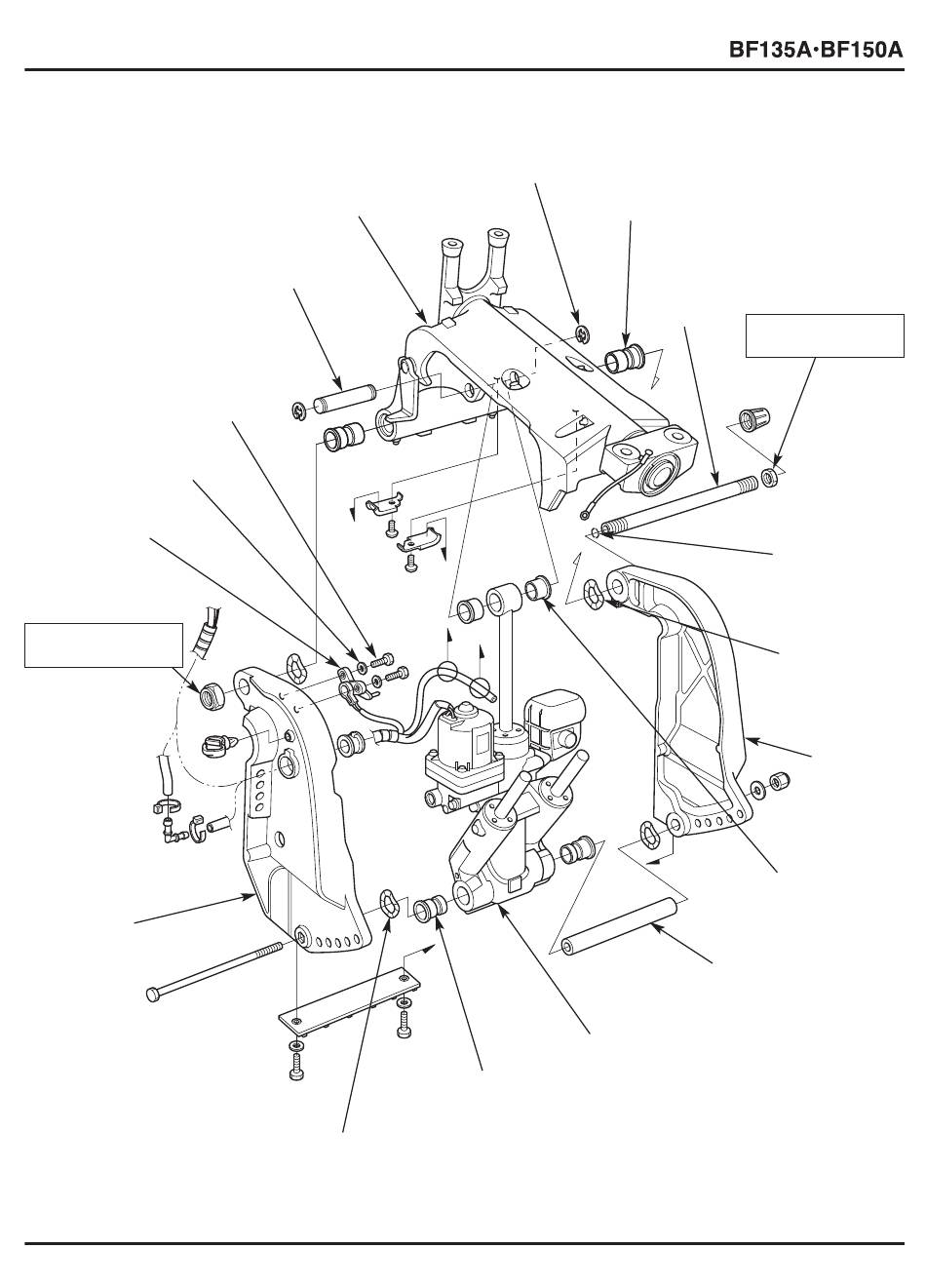

[1] UPPER CYLINDER
PIN
[19] 6 x 20 mm
HEX. NUT (2)
[18] 6 mm WASHER (2)
[17] TRIM ANGLE
SENSOR
[16] 25 x 2.5 mm SELF-
LOCKING NUT
34 N . m (3.5 kgf . m,
25 lbf . ft)
[15] L. STERN
BRACKET
15-21
[3]
15 mm E-RING (2)
[2] SWIVEL CASE
ASSEMBLY
[13]
LOWER CYLINDER
BUSHING (2)
[14] 32 mm WAVE
WASHER (2)
[4] SWIVEL CASE
BUSHING (2)
[6]
[5]
7/8-14 UNF SELF-
TILTING
LOCKING NUT
SHAFT
34 N . m (3.5 kgf . m,
25 lbf . ft)
[10] UPPER CYLINDER
[11] LOWER CYLINDER
COLLAR
[12] POWER TRIM/TILT
ASSEMBLY
[7]
15.54 x 2.26 mm
O-RING
[8]
26 mm WAVE
WASHER (2)
[9]
R. STERN
BRACKET
BUSHING (2)
