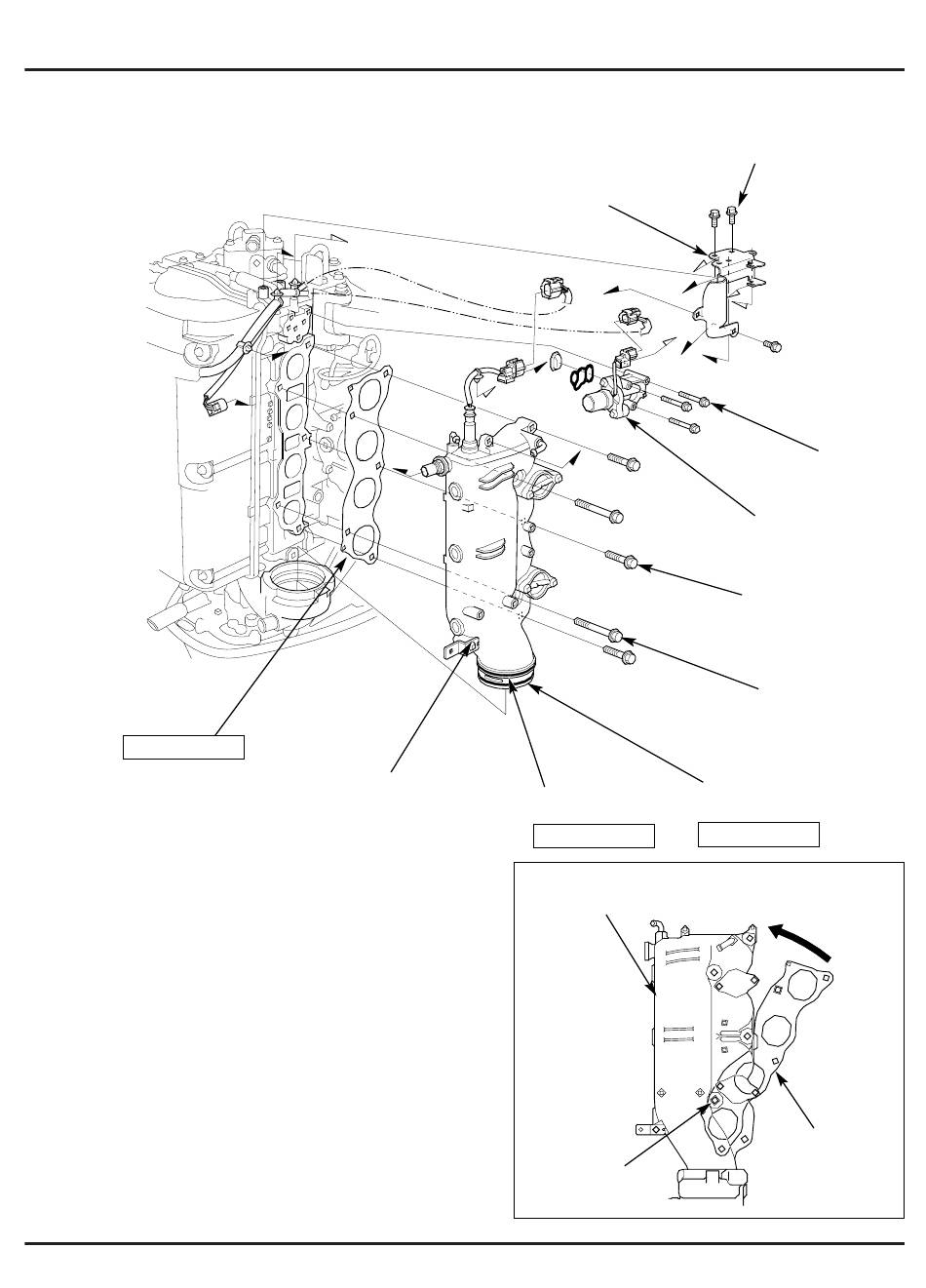

c. INSTALLATION
[6] GASKET
Do not reuse.
1) Apply the engine oil to the O-rings and install them on the
exhaust manifold assembly.
2) Set the exhaust manifold assembly on the exhaust manifold
guide.
3) Set the new gasket. Align the holes located at the lower left
side, and loosely tighten the 10 x 75 mm flange bolt as
shown.
4) Align the bolt holes by turning the gasket in the direction
shown with the arrow. Take care not to damage the gasket.
5-155
[5]
EXHAUST MANIFOLD
ASSEMBLY
[1]
CONNECTOR
BRACKET
[4] 79.9 x 3.1 mm
O-RING
Do not reuse.
[1]
EXHAUST MANIFOLD
ASSEMBLY
10 x 75
BF135A•BF150A
6 x 14 (3)
6 x 55 (3)
[2]
VTEC SOLENOID
VALVE ASSEMBLY
10 x 45 (3)
10 x 75 (2)
[3] 76.4 x 3.1 mm
O-RING
Do not reuse.
[2] GASKET
