BF135A•BF150A

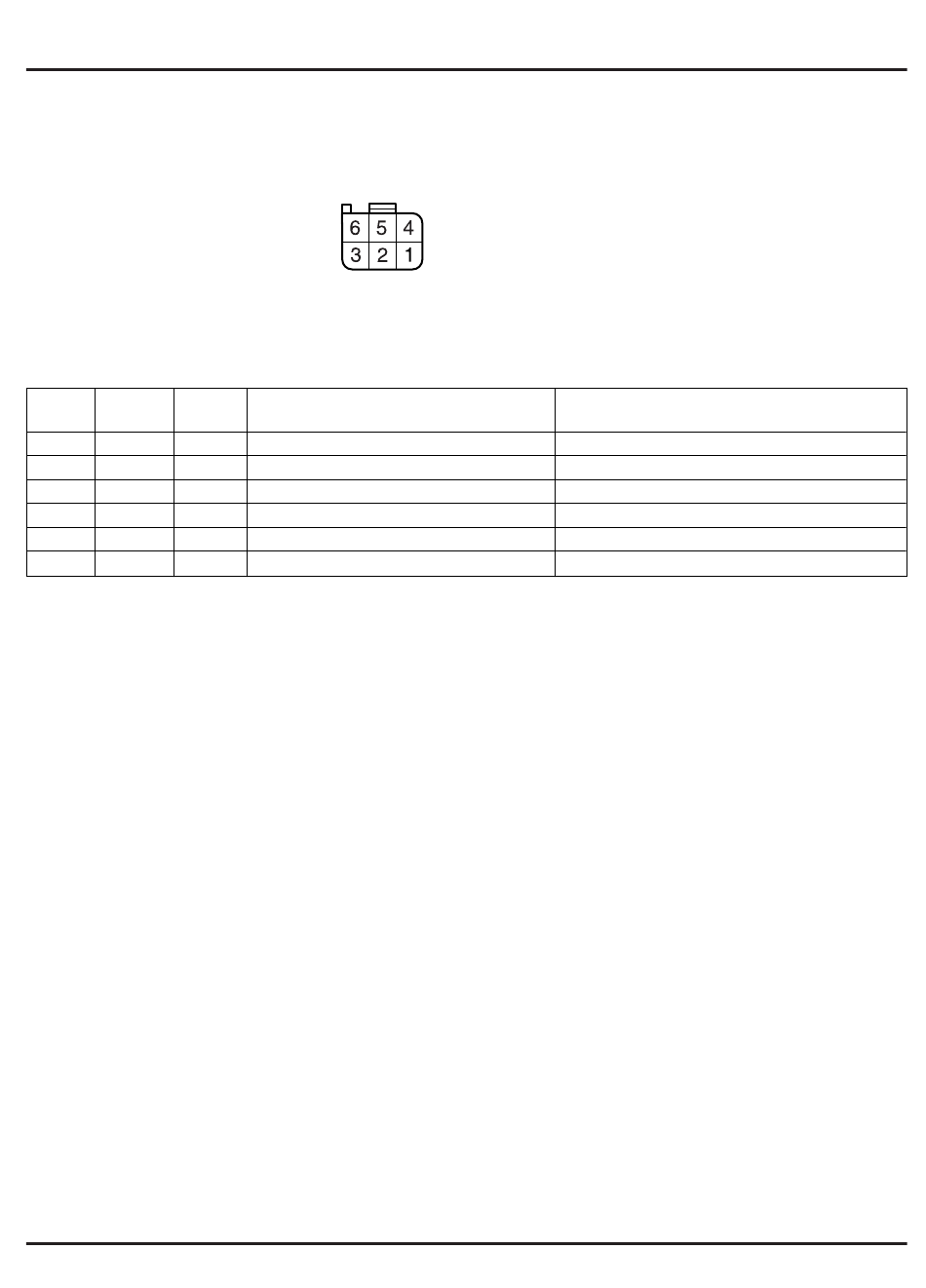

ECM CONNECTOR C
Terminal Wire Terminal
No. color mark
1 Y/Bl IGP1
2 G PG1
3 Bl/W AFHT
4 W AFHT+
5 Y/Bl IGP2
6 G/R PG2
HARNESS SIDE CONNECTOR
VIEWED FROM THE TERMINAL SIDE
Name
ECM main power 1 (Common with C5)
Power ground 1 (Common with C6)
A/F sensor heater
A/F sensor heater (+)
ECM main power 2 (Common with C1)
Power ground 2 (Common with C2)
Content/Signal
At ignition switch ON: Battery voltage
At ignition switch ON: Battery voltage
5-10
