6.8

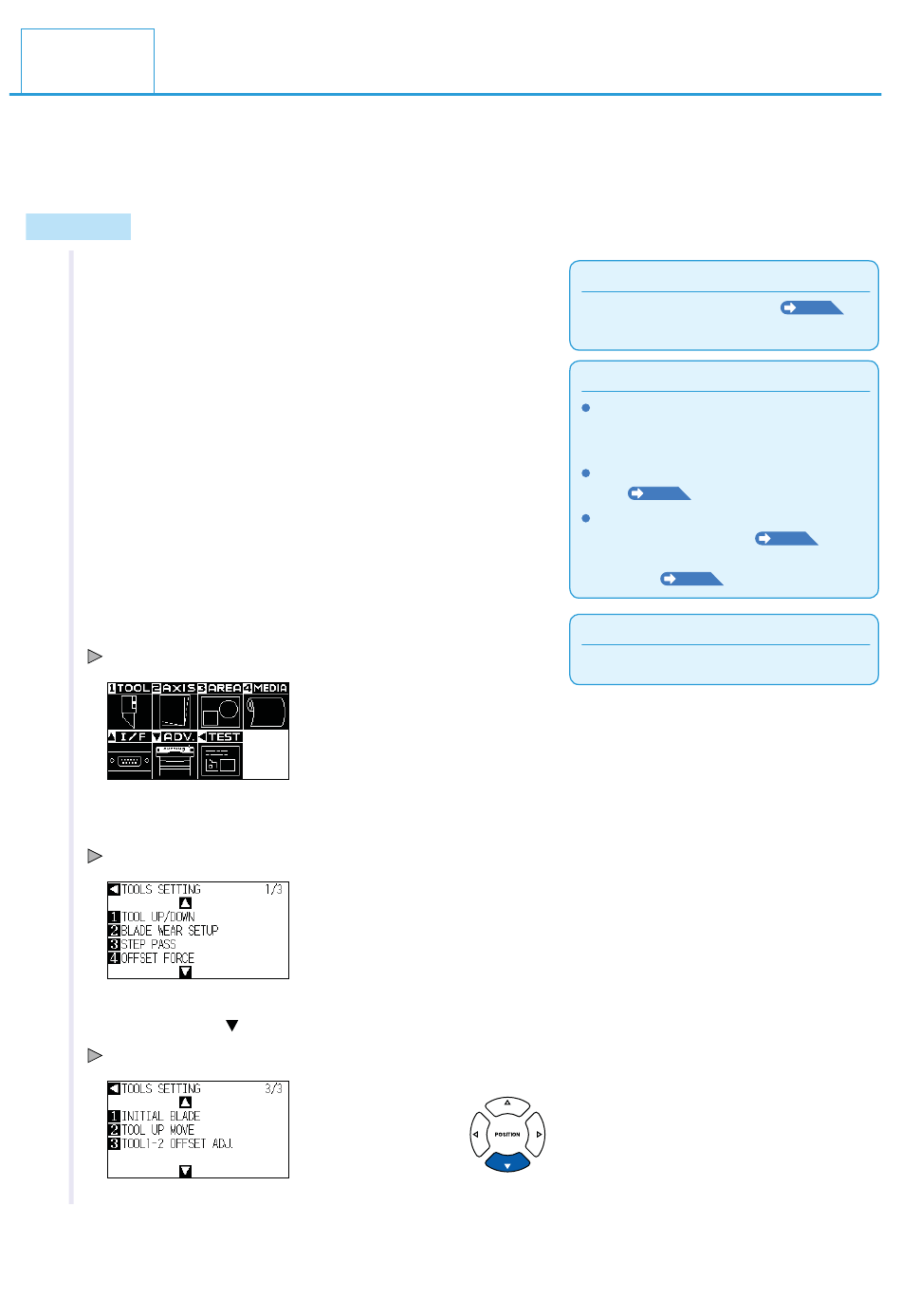

Adjust the space between tools 1 and 2
Adjusting the space between tools 1 and 2 allows you to adjust the alignment of the pen and cutter plungers.
First draw a crosshair (the reference line) with the pen set in the pen station/pen holder, then cut the crosshair
with the cutter plunger set in the cutter holder. Perform the adjustment by inputting the gap value.
Operation
1
Set media that is larger than A1 size.
2
Put the cutter plunger in the tool holder and the pen plunger
in the pen holder.
Set the tool requirements according to the tools used.
3
Press the [PAUSE/MENU] key.
MENU screen is displayed.
4
Press the [1] key (TOOL).
TOOLS SETTING screen (1/3) is displayed.
5
Press POSITION ( ) key.
TOOL SETTING screen (3/3) is displayed.
Supplement
See "Loading Media (Paper)" on
how to set supplemental media..
Supplement
The pen plunger is used for Condition No.1,
and the cutter plunger is used for Condition
No.2.
For setting the pen plunger, see "Attaching a
Tool"
For changing the tool conditions, see
"Selecting Tool Condition"
and for tool settings, see "Setting the Tool
Condition"
Supplement
Perform the settings in Normal menu.
6-22
P.2-7
P.2-4 .
P.2-29
.
P.2-30
