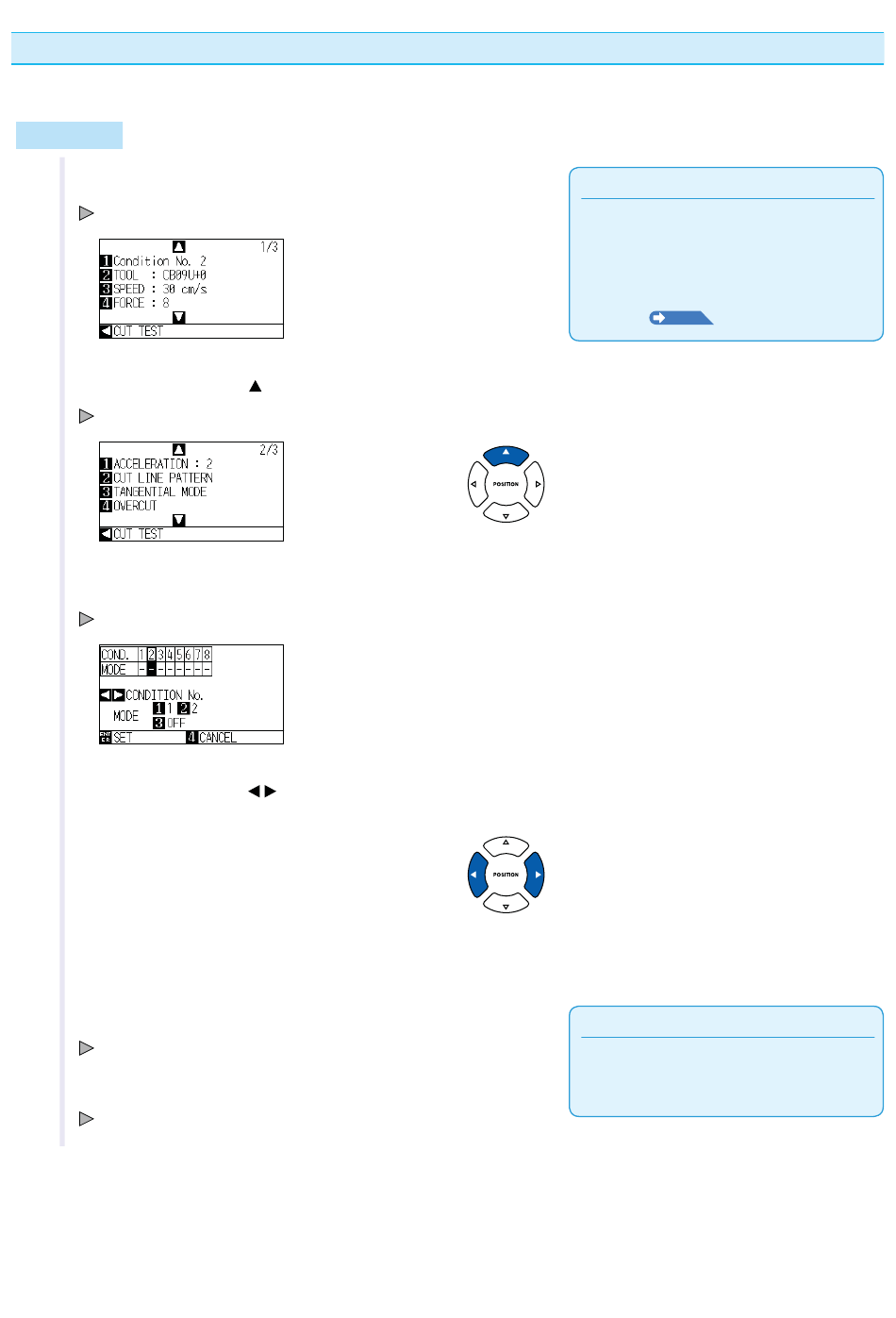

Setting the Tangential Mode

On/off and the mode of the tangential mode can be set individually for each of 2-8 tool control numbers.
Operation
1
Press the [COND/TEST] key.
CONDITION setting screen (1/3) is displayed.
2
Press the POSITION ( ) key.
CONDITION setting screen (2/3) is displayed.
3
Press the [3] key (TANGENTIAL MODE).
TANGENTIAL MODE setting screen is displayed.
4
Press the POSITION (
number (CONDITION No.).
5
Press the [1] key (MODE1), the [2] key (MODE2), or the [3]
key (OFF) and select the mode.
6
Confirm the setting and press the [ENTER] key (SET).
Setting will be set, and it will return to CONDITION setting screen (2/3).
7
Press the [COND/TEST] key.
It will return to default screen.
) keys and select the tool condition
6-3
Supplement
Condition No.1 is pen specific. When setting
up tool conditions for the cutter plunger, please
choose from Condition No.2 to Condition
No.8 under "Selecting the Tool Condition". For
more information, see "2.10 Selecting Tool
Condition" .
P.2-29
Supplement
It will return to CONDITION screen (2/3)
without changing the settings when you press
the [4] key (CANCEL).
