Setting For Condition No.2 To No.8 (For Cutter Plunger) - GRAPHTEC CE6000-120AP User Manual

6
Confirm that "PEN" is set and press the POSITION ( ) key
(PREVIOUS).
7
Press the [COND/TEST] key.
It will return to default screen.

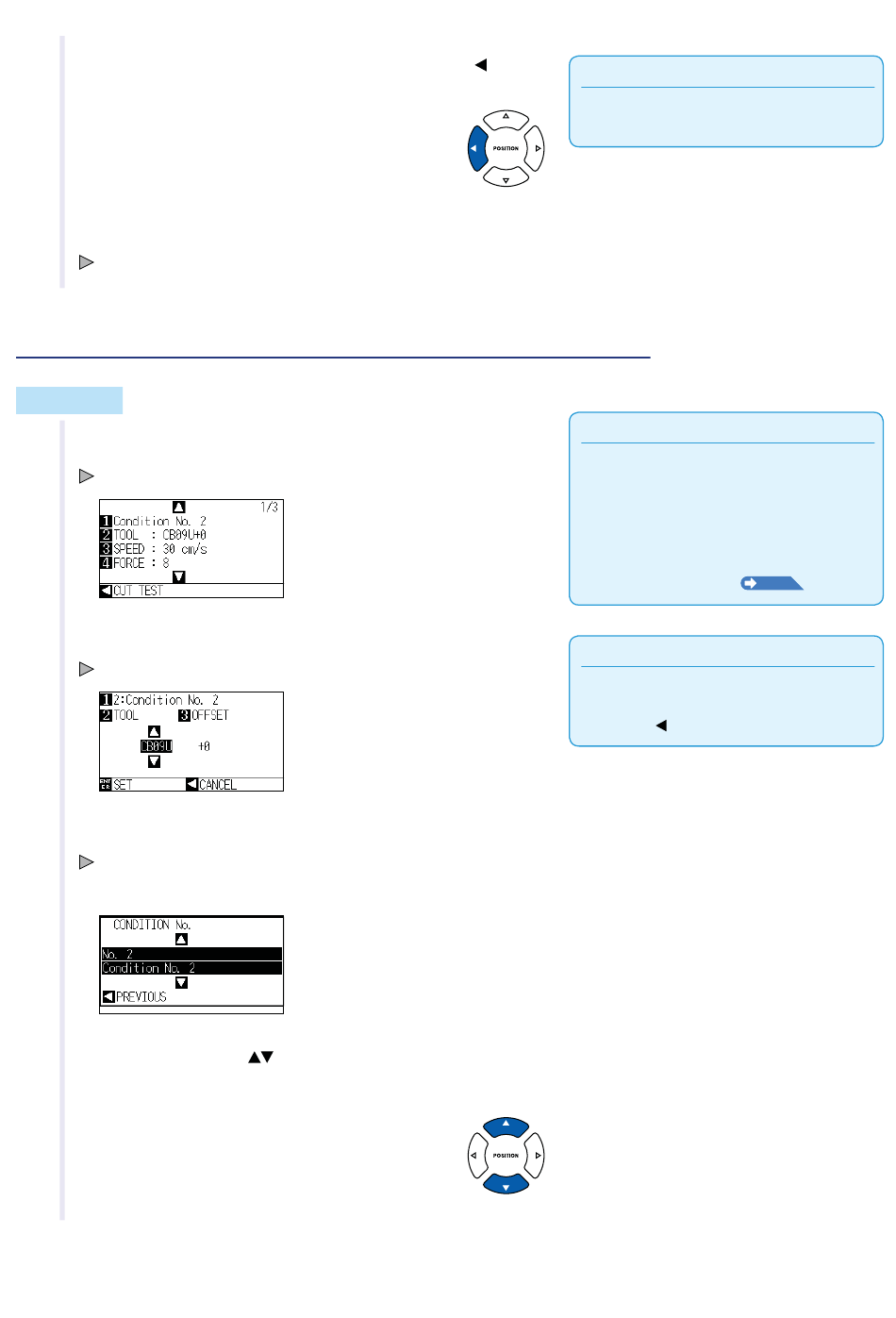

Setting for Condition No.2 to No.8 (For cutter plunger)

Operation
1
Press the [COND/TEST] key in the default screen.
CONDITION setting screen (1/3) is displayed.
2
Press the [2] key (TOOL).
TOOL setting screen is displayed.
3
Press the [1] key.
CONDITION No. selection screen is displayed.
* Display may vary depending on the selected condition number.
4
Press the POSITION (
the TOOL/OFFSET you wish to change.
From here, select "Condition No.2"
) keys to select the Condition No. of
2-32
Supplement
Please note that Condition No.1 is pen plunger
specific, and does not alter other tool settings.
Supplement
Please select Condition No.1 under "Selecting
the Tool Conditions" when setting up tool
conditions for the pen plunger, and choose
"Condition No.2" to "Condition No.8" when
setting up the tool conditions for the cutter
plunger. For more information, see "2.10
Selecting Tool Condition"
Supplement
It will return to CONDITION screen without
changing the settings when you press the
POSITION ( ) key (CANCEL).
.
P.2-29
