Position the media and the push rollers to correspond with
the width of the media.
Use the 5 push rollers to push down the sides and center of
the media. Use the grit roller position guide and make sure
the push rollers are on top of the grit rollers.
Use the grit roller position guide to make sure the push
rollers are set on top of the grit rollers.
You can adjust the center push roller's hold-down force.

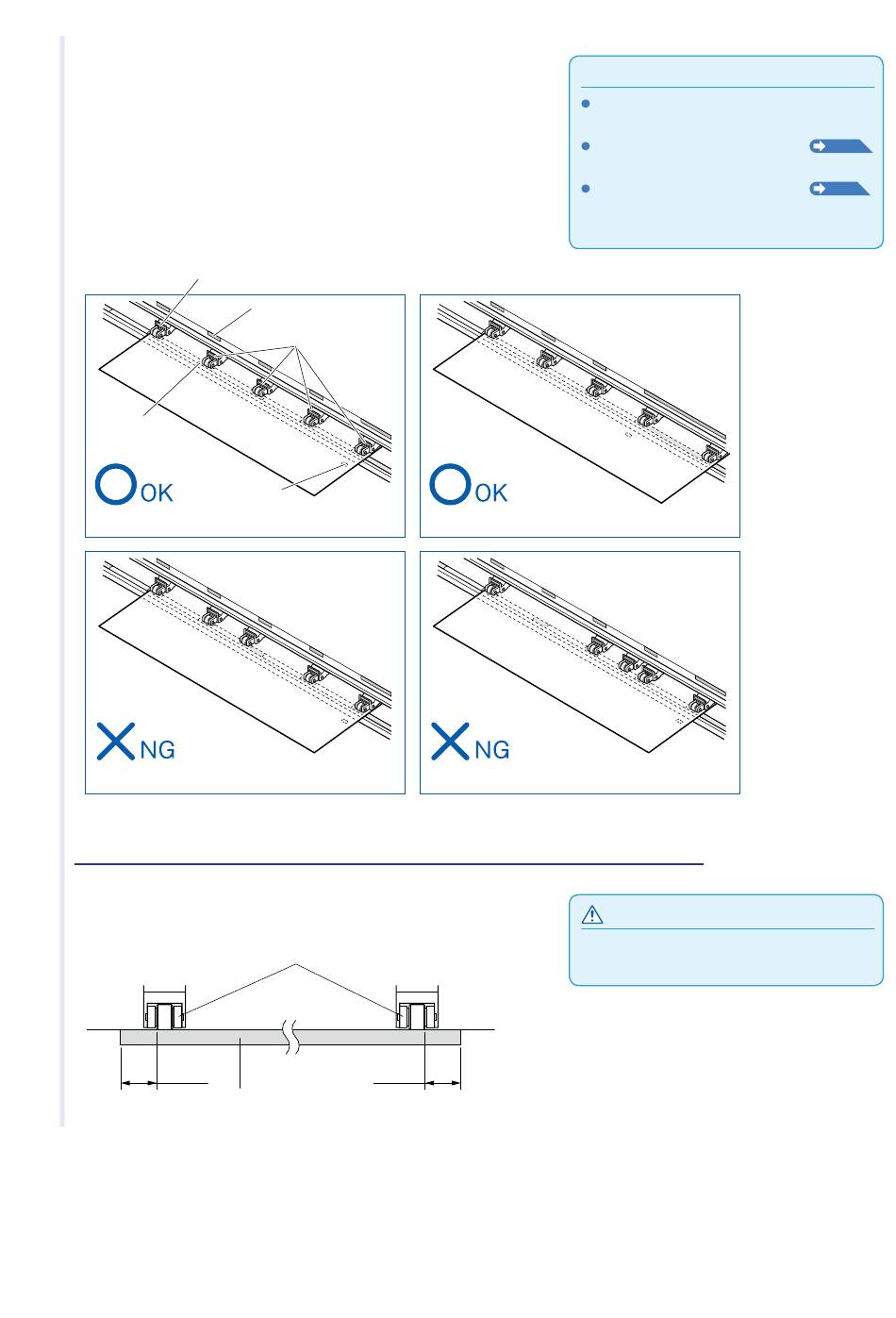

Push roller
Grit roller
(The push roller is on top of the grit roller.)
(The center push roller is not on top of the grit roller.)
When Feeding Long-axis Media (at exceeds 2 meters)
Position the push rollers at least 15 mm inside the edges of
the media.
15 mm
Grit roller position guide
Push roller
Media sensor
Push roller
15 mm
Media
Supplement
The media must always be positioned over
the media sensor.
See "2.4 Aligning the Push Rollers"
about the position of the push rollers.
See "2.4 Aligning the Push Rollers"
for information about center 3 push roller
hold-down force.
(The push roller is on top of the grit roller.)
(The center push roller is near the edge.)
When setting on inside more than 30mm, cut
cross is not available.
