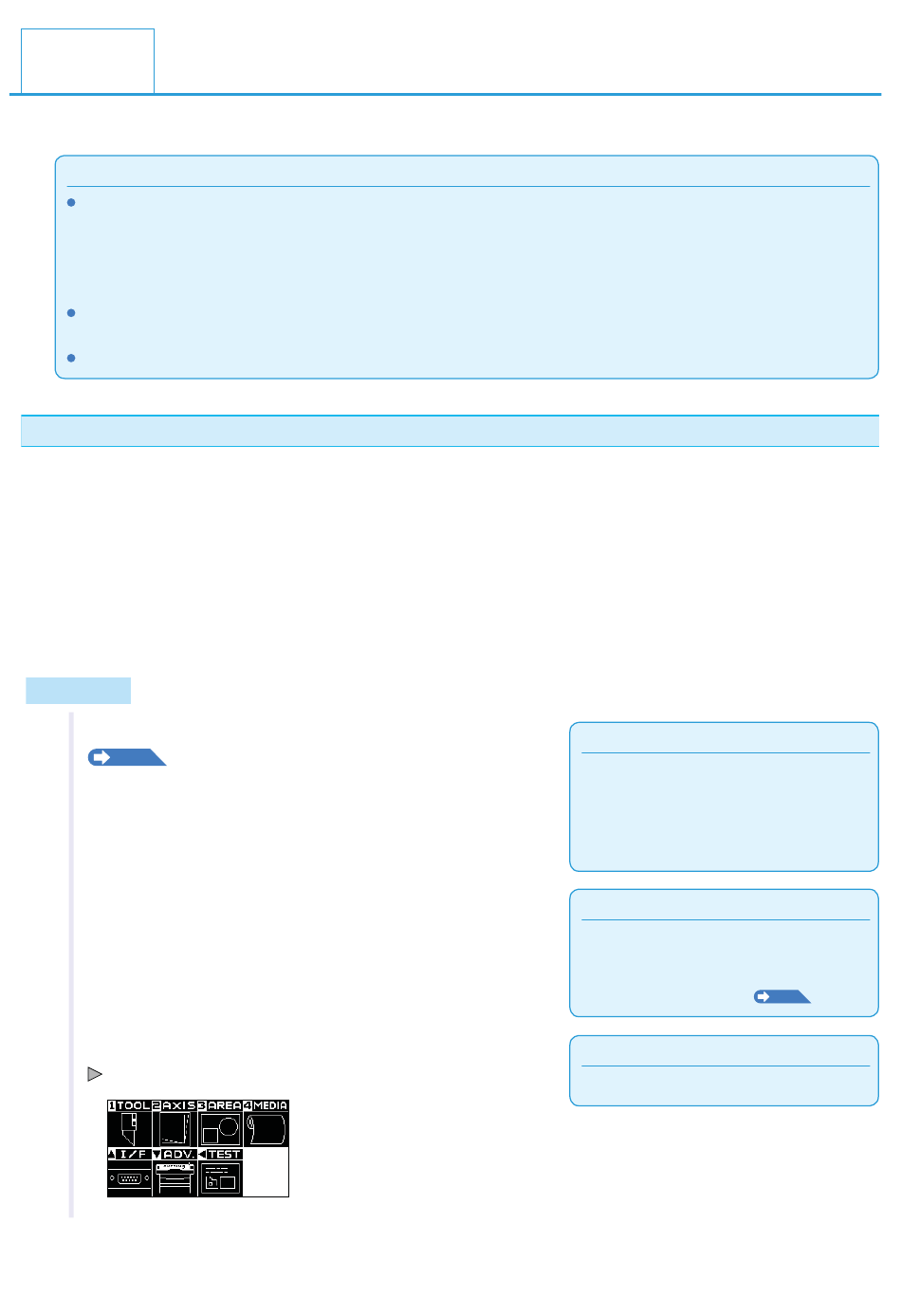

5.2

Adjusting coordinate Axes

The following explain how to adjust to coordinated axes.
Supplement
Adjustment will be cleared if following is done after setting the adjustment.
• Set new origin point.
• Set the media again.
• Set rotation or mirror. (Set the rotation or mirror prior to the axis adjustment)
Axis adjustment will convert in accordance with rotation or mirror in this case.
When the inclination of the axis is too large when setting the first and second point, "Angle adjustment error, please reset" will be
displayed. After setting the media so as to make the inclination small, please perform adjustment operations.
Axis adjustment will be cleared when point 1 and point 2 is set to same point.

Setting the start point

Adjust plot deviations on the X and Y axis and origin point.
This function also makes it possible to re-plot paper that has already been cut.
Before adjusting the coordinate axes, please make sure to plot the line of the X Axis and the Origin point, so that
it will be easier to tell where the Origin point and the coordinate axes are.
Please make sure to plot inside of the area parameters so that the machine can determine the line of the X axis
and the origin point even if the media is tilted.
Please note that if you plot the Origin point and the X Axis very close to the plotting range, the set position will
fall outside of the plotting range, meaning that adjustment will not be possible.
Operation
1
Load the media with adjustment mark in the plotter.
P.2-7 Loading Media (Paper).
2
Set a cutter plunger or a pen in the tool holder.
3
Press the [PAUSE/MENU] key.
MENU screen is displayed.
Supplement
Confirm that the push roller is steadily on the
media within the range of media movement.
This adjustment is based on assumption that
media is slightly tilted. Media might fall off if
the tilting of the media is too large.
Supplement
Please take care when setting cutter plunger in
the tool holder to position it front facing out in
tool holder 1. For more information on attaching
a tool, see "Attaching a tool"
Supplement
Perform the settings in Normal menu.
5-3
.
P.2-4
