Contents of Operation from Menu Screen

You can use the [SIMPLE] key on the default screen to switch between Simple menu and Normal menu.
In Simple menu you can change easy settings from the menu screen.
In Normal menu, you will be able to change more detailed settings.
Simple mode and Normal mode are independent from one another. The settings of the mode you're currently in
will take precedence.
P.2-43 See "About Simple menu" for more information.

Simple menu

In Simple menu, [1], [2], [3] keys can be used.
Contents of the operation and settings that is displayed in MENU screen with [PAUSE/MENU] key is as following:
[1] (MEDIA) : Set the setting of the condition for the media.
[2] (I/F) : Set the settings of the condition for the interfacing with the control computer.
[3] (ADV) : Make the settings of the conditions for the basic operation of the CE6000-120AP such as unit
of length.
[PAUSE/MENU] : It will close the MENU screen and return to default screen.
[FAST] : Displays the position key screen. When media is set, the tool point can be moved.
P.A-5 See the "Menu Tree" for list of the descriptions about each settings.

Normal menu

In Normal mode, [1], [2], [3], [4] and [ ], [ ], [ ] keys can be used.
Contents of the operation and settings that is displayed in MENU screen with [PAUSE/MENU] key is as following:
[1] (TOOL) : Set the setting for the operation of the tool.
[2] (AXIS) : Makes corrections on the axis bases on 2 points of comparison.
[3] (AREA) : Make the settings for area and rotation, etc., of the cutting.
[4] (MEDIA) : Set the setting of the condition for the media.
[ ] (I/F) : Set the settings of the condition for the interfacing with the control computer.
[ ] (ADV) : Set the settings of the conditions for the basic operation of the plotter, such as display
language, unit of the measurements.
[ ] (TEST) : Does the operation necessary for maintenance, such as self diagnostic test or printout of the
condition settings list.
[PAUSE/MENU] : It will close the MENU screen and return to default screen.
[FAST] : Displays the position key screen. When media is set, the tool point can be moved.
P.A-5 See the "Menu Tree" for list of the descriptions about each settings.

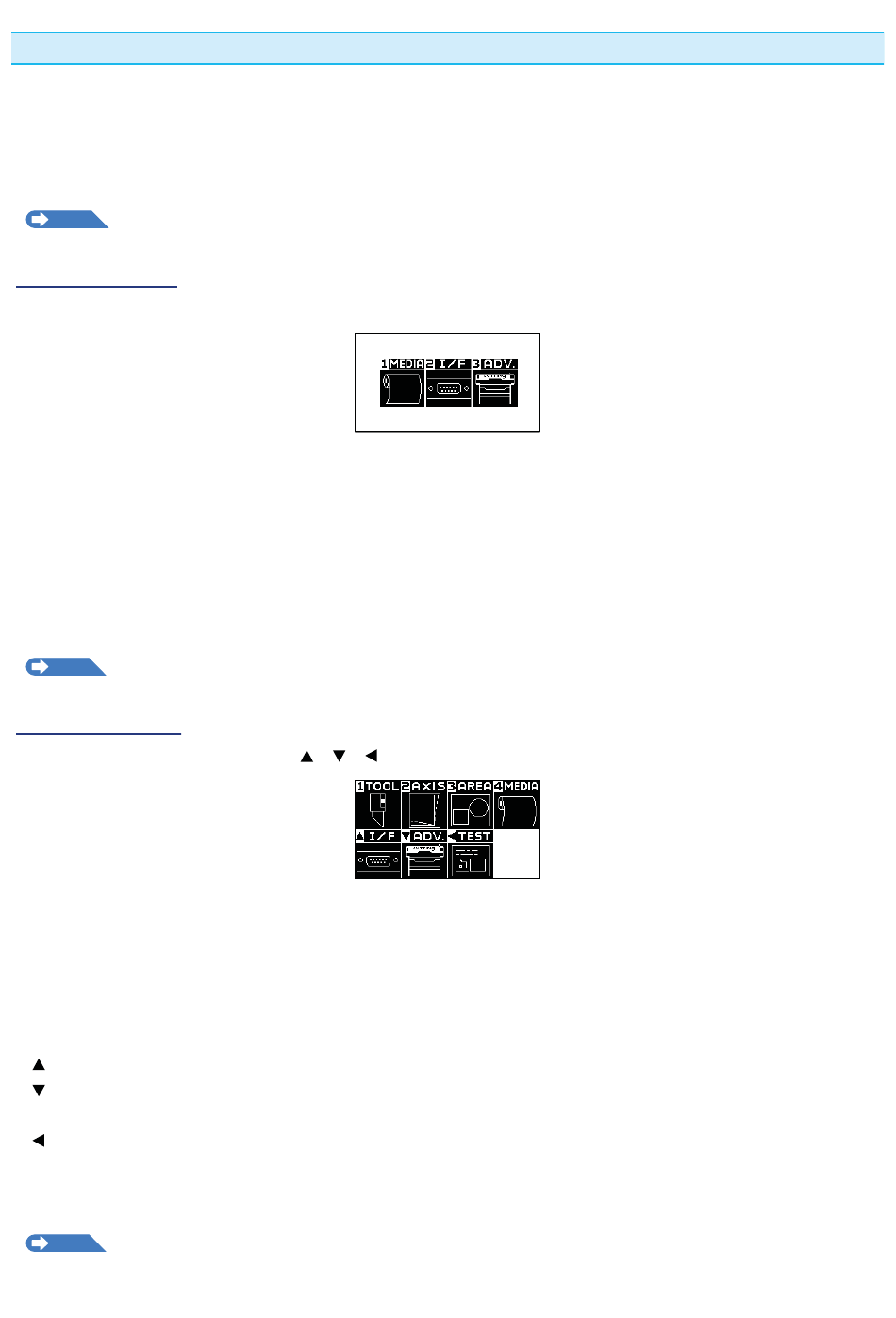

Menu screen (Simple menu)
Menu screen (Normal menu)
2-24
