Rear View - GRAPHTEC CE6000-120AP User Manual

USB interface connector ........Used to connect the plotter to the computer with a USB interface cable.
RS-232C interface connector ..Used to connect the plotter to the computer with a RS-232C interface cable.
Media stopper ..........................Stops the stock shaft from rotating when the paper (media) is being set-up.
Stock shaft ...............................A roller that takes in roll media.
Media flange ............................Fixes the paper roll (media) in place as per settings.
Media guide .............................Guides the paper (media) during the plotting/cutting process.

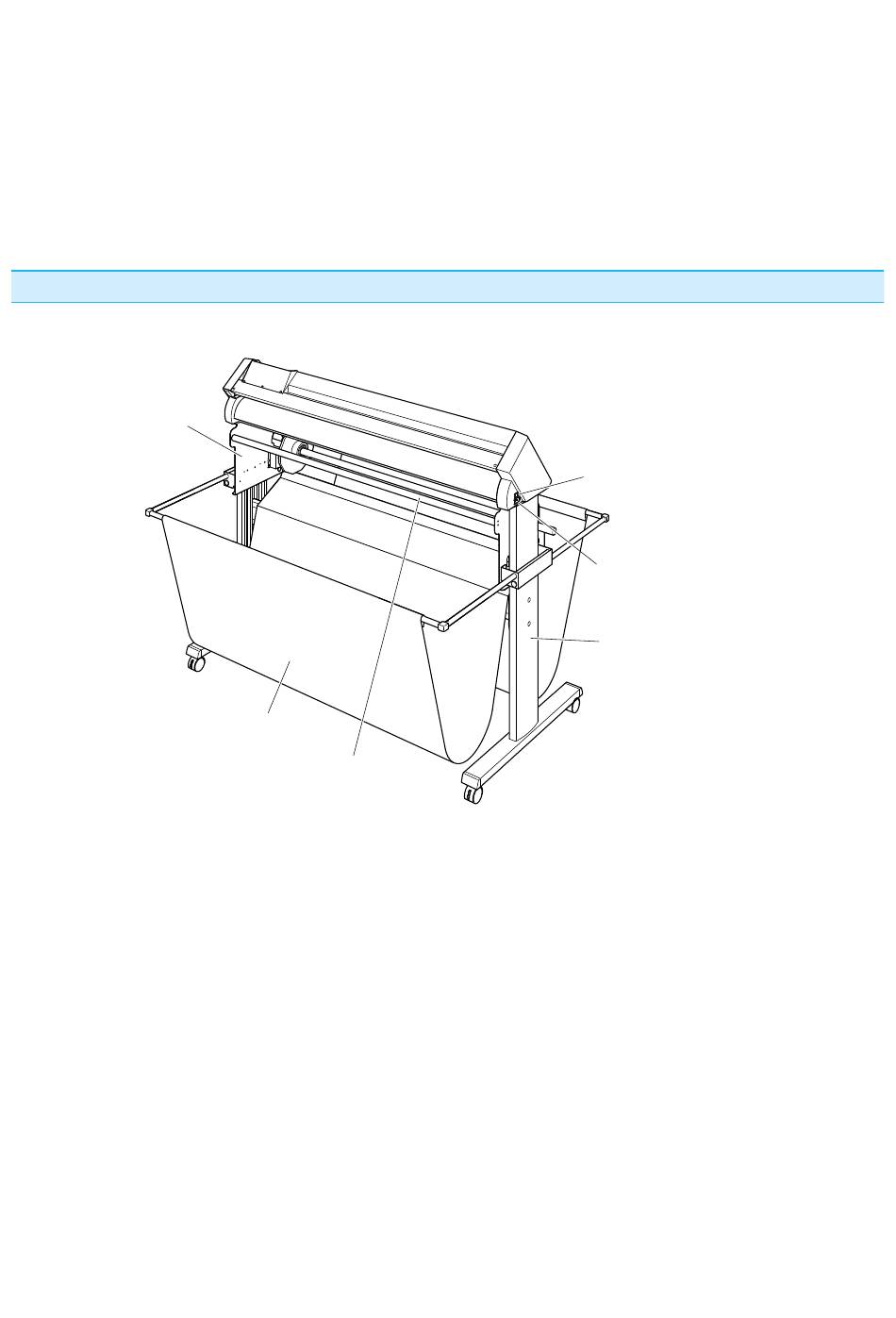

Rear View

Media stocker
Power switch ...........................Used to turn the plotter on and off.
AC line inlet ..............................Inlet where the power cable is connected.
Media stocker ..........................The stock to set roll media in.
Stand ........................................A stand to put the machine on.
Basket ......................................The seat that holds the blank paper.
Media guide bar .......................Shaft that used to set the roll media.
Use when pulling the (media) straight out.
Basket
Media guide bar
Power switch
AC line inlet
Stand
1-4
