8

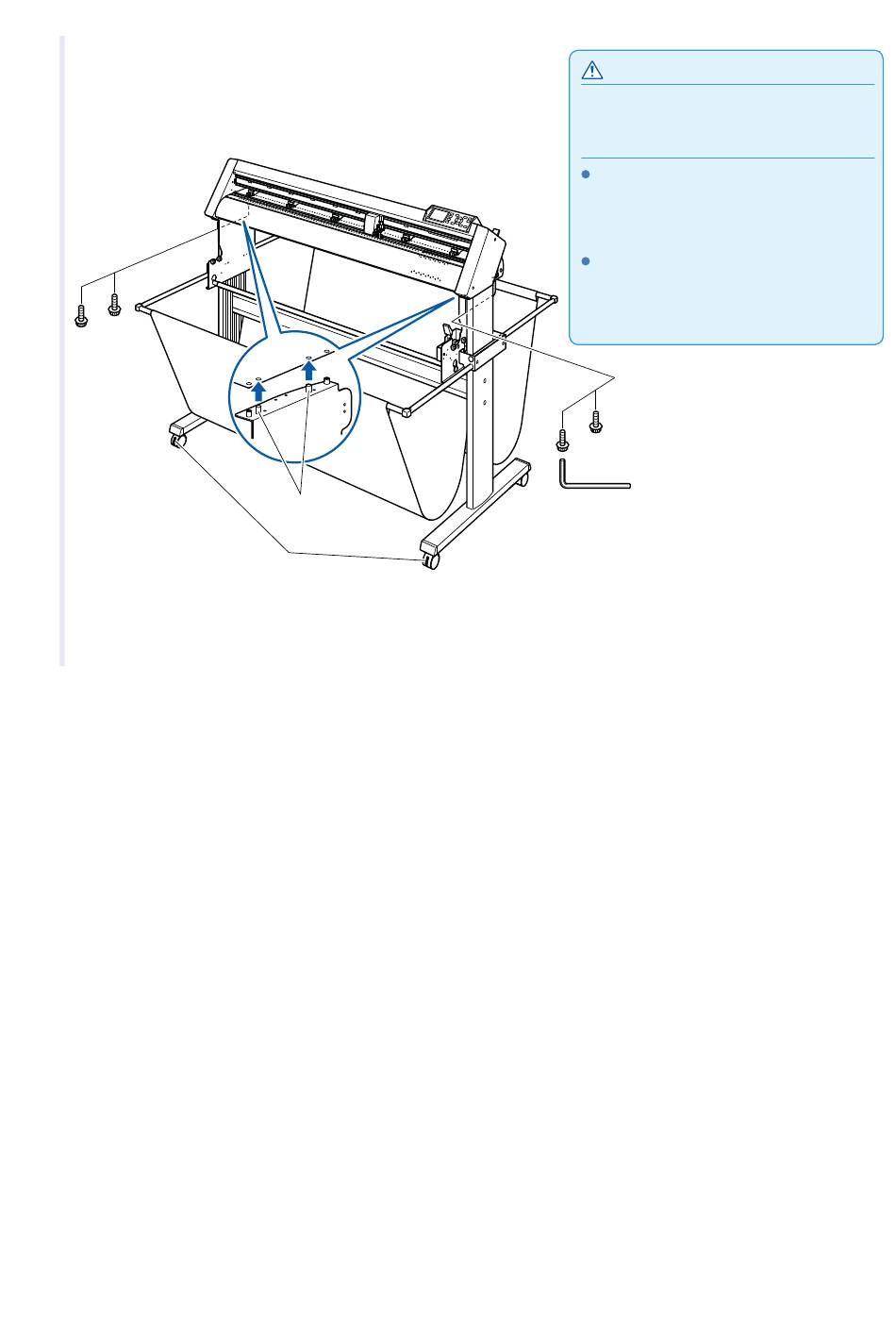

Mount the plotter on the stand by inserting the positioning
pins on the stand into the positioning holes on the underside
of the plotter. Fasten with four socket head cap screws (two
on each side), using the Allen wrench.
Socket head
cap screw
9
Tighten the socket head cap screws loosely fastened in Step 2.
Positioning pin
Caster stoppers
Please be careful not to get your hands pinched
or stuck when you secure the machine.
Supplement
Check that all of the screws used for
fastening have been tightened. The media
may not be fed correctly if even one of the
screws is loose.
When installing the plotter, make sure that
there are no objects in its vicinity. Leave a
clear space of at least 300 mm around the
plotter.
1-10
CAUTION
Socket head
cap screw
