4.1

Settings for Cutting

Settings such as area and width of cutting, page length, mirrored, enlarged, shrunk, etc., can be set.

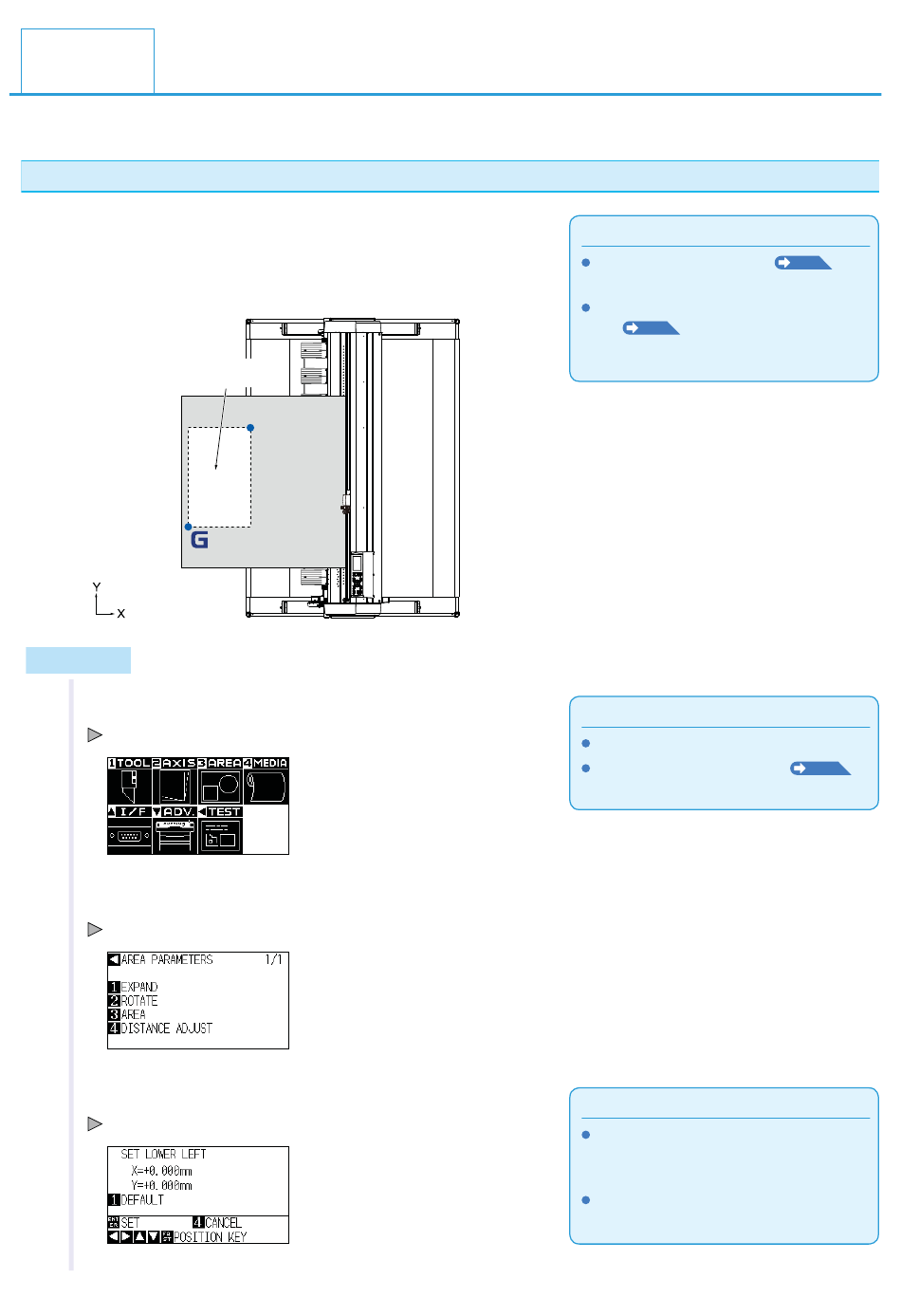

Setting Cutting Area

Origin point will be set at lower left of the AREA once the AREA is
set. It is possible to set the origin point at the center when the HP-GL
is selected.
Move the origin point to change the cutting position.
It will only cut within
this range
Origin
point
Operation
1
Press the [PAUSE/MENU] key in READY status.
MENU screen is displayed.
2
Press the [3] key (AREA).
AREA PARAMETERS setting screen (1/1) is displayed.
3
Press the [3] key (AREA).
SET LOWER LEFT screen is displayed.
Upper right set
position
Image already cut
Supplement
See "Setting the Origin Point"
about the moving the origin point.
See "Setting Origin Point When HP-GL is
Set"
HP-GL command.
Supplement
Perform the settings in Normal menu.
See "How to Use Control Panel"
for READY status.
Supplement
Coordinate value displayed here is the
distance to the tool carriage from the origin
point.
Press [1] key (DEFAULT) if the cutting are is
not to change.
4-2
P.3-7
for setting the origin point with
P.3-9
P.2-21
