3

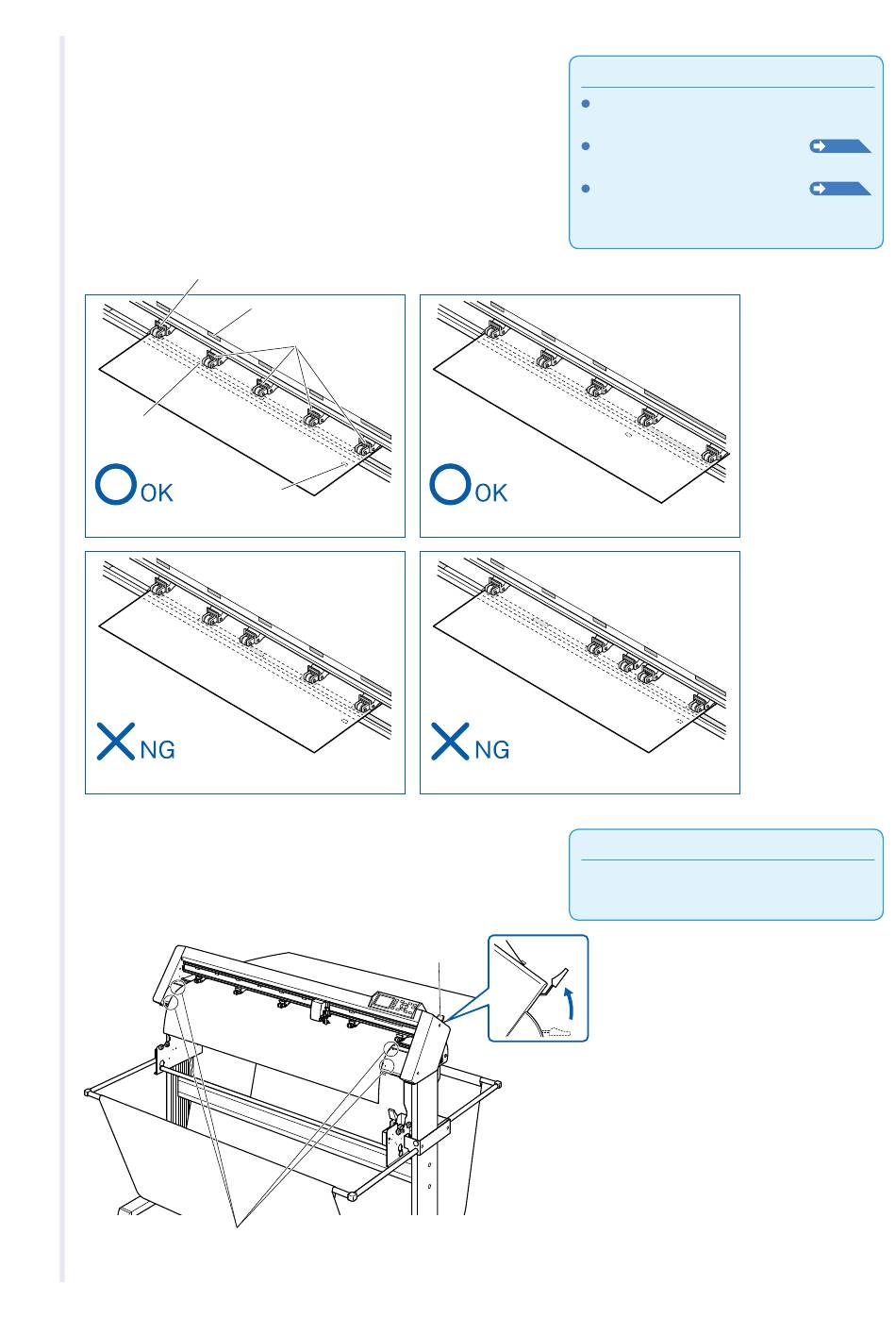

Position the media and the push rollers to correspond with
the width of the media.
Use the 5 push rollers to push down the sides and center of
the media. Use the grit roller position guide and make sure
the push rollers are on top of the grit rollers.
Use the grit roller position guide to make sure the push
rollers are set on top of the grit rollers.
You can adjust the center push roller's hold-down force.
Push roller
Grit roller
(The push roller is on top of the grit roller.)
(The center push roller is not on top of the grit roller.)
4
Straighten and align the end of the paper using the holes
above and below the media guide as a reference point.
Raise the set lever after confirming there is no slackening to
secure the sheet paper and push roller position.
Straightening
Grit roller position guide
Push roller
Media sensor
(The push roller is on top of the grit roller.)
(The center push roller is near the edge.)
Media set lever
2-15
Supplement
The media must always be positioned over
the media sensor.
See "2.4 Aligning the Push Rollers"
about the position of the push rollers.
See "2.4 Aligning the Push Rollers"
for information about center 3 push roller
hold-down force.
Supplement
Please ensure that the media passes over the
media sensor.
