Move Away the Tool Carriage

It is possible to move the tool carriage toward upper right. It makes it easier to confirm the cutting results if you
perform this operation after the cutting is completed.
To the top of the
maximum cutting area
Operation
1
Press the [1] key (VIEW) in READY status.
Tool carriage will move away.
To move the tool carriage to the origin point, do following:
Operation
1
Press the [2] key (HOME) in READY status.
Tool carriage will move to the origin point.

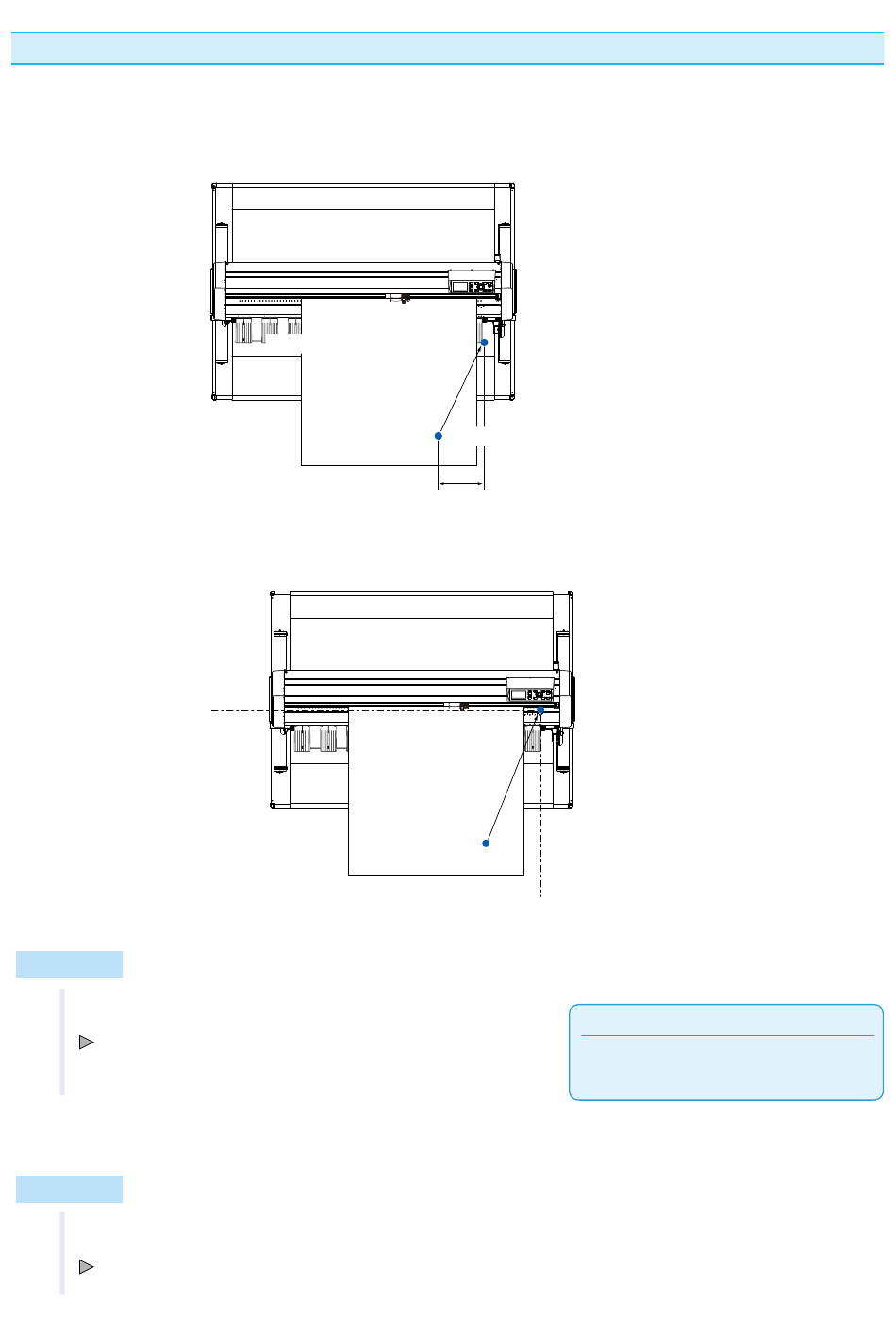

<When using Roll Media>: Seen from above
Standby position of the pen carriage
To the bottom of the cutting area
<When using Sheet Media>: Seen from above
Position of the pen carriage before moving away
(machine origin point)
Bottom of the operation area
(machine origin point)
3-5
Supplement
Tool carriage will move away to upper right by
continuously performing the same operation.
