Assembly
CAUTION
Please assemble with two or more people.
People can be accidentally injured by the machine's edges. Please be very careful.
Please be careful not to get your hands pinched or stuck when you secure the machine.
1

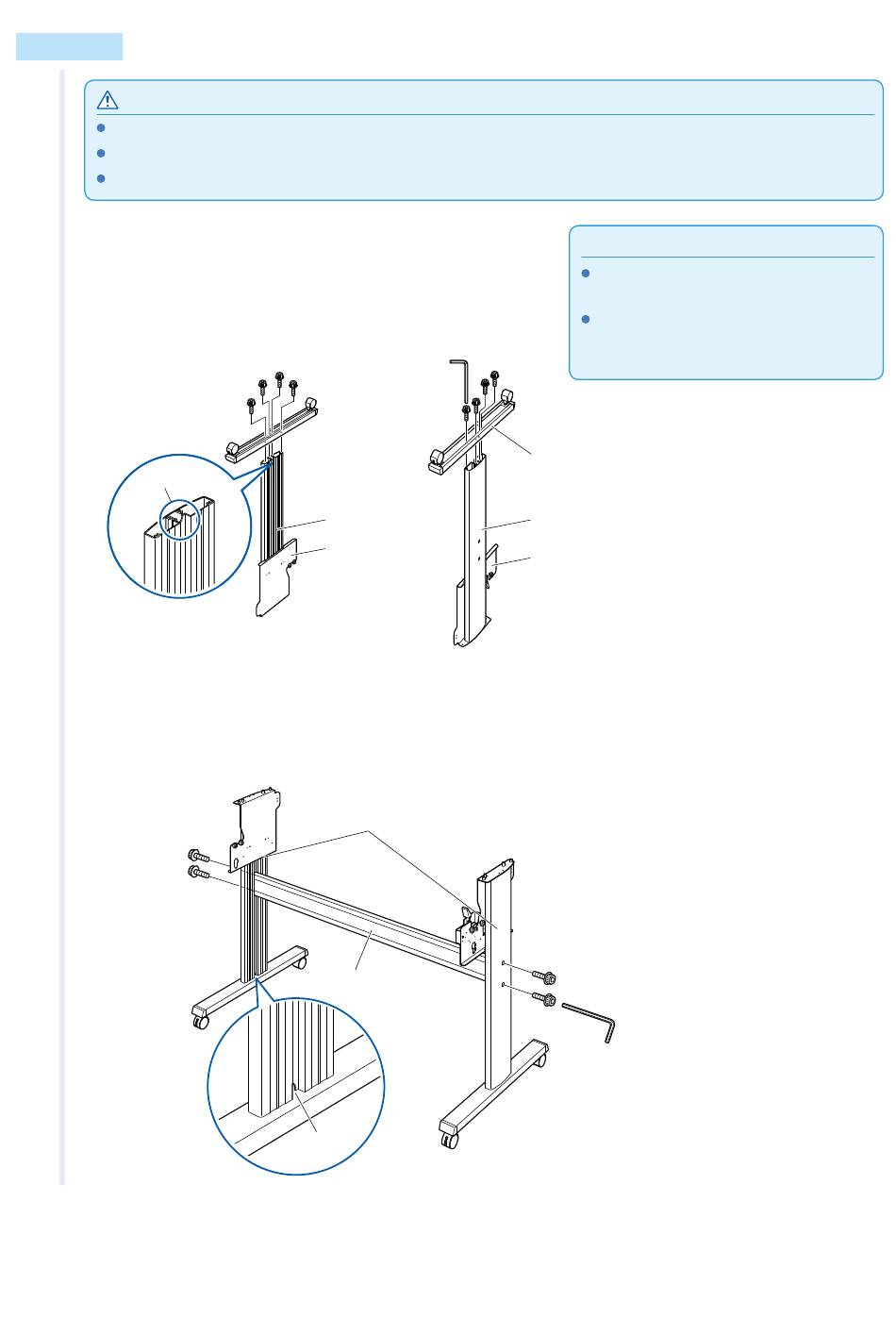

Assemble the left and right stand sides. (Attach both the left
and right sides of the base assembly.)
Fasten a stand foot to each of the stand side bars with two
socket head cap screws using the Allen wrench.
Cutout
2
Attach the center bar to each of the left and right stand sides
temporarily with two socket head cap screws, using the Allen
wrench. Mount the center bar so that each one of stand feet
of short side to be front side.
Socket head
cap screw
Socket head
cap screw
Stand side bar
Media stocker
Stand sides
Center bar
Cutout
1-6
Supplement
Set the stand side bar in properly so that it
matches the cutout in the stand foot.
Assemble the stand so that the front and rear
lengths of the stand foot are the same for
both the left and right stand sides.
Stand foot
Stand side bar
Media stocker
Socket head
cap screw
