7.1

Sorting the Cutting Data

Sorting the cutting area parameter data will increase cut efficiency by minimizing time spent by changing tools
and by grouping cuttings to happen all at once.
First plot the data from the pen plunger (Condition No.1), then plot (cut) the cutter plunger (Condition No.2 through
No.8).
Supplement
Sorting will start the process after all the data are stored in the buffer memory, so it takes time to start the cutting.
Sorting might not be effective for the data that is created efficiently.
Process may be faster to turn off the sorting on the plotter, if the data is already sorted using the software on the PC.

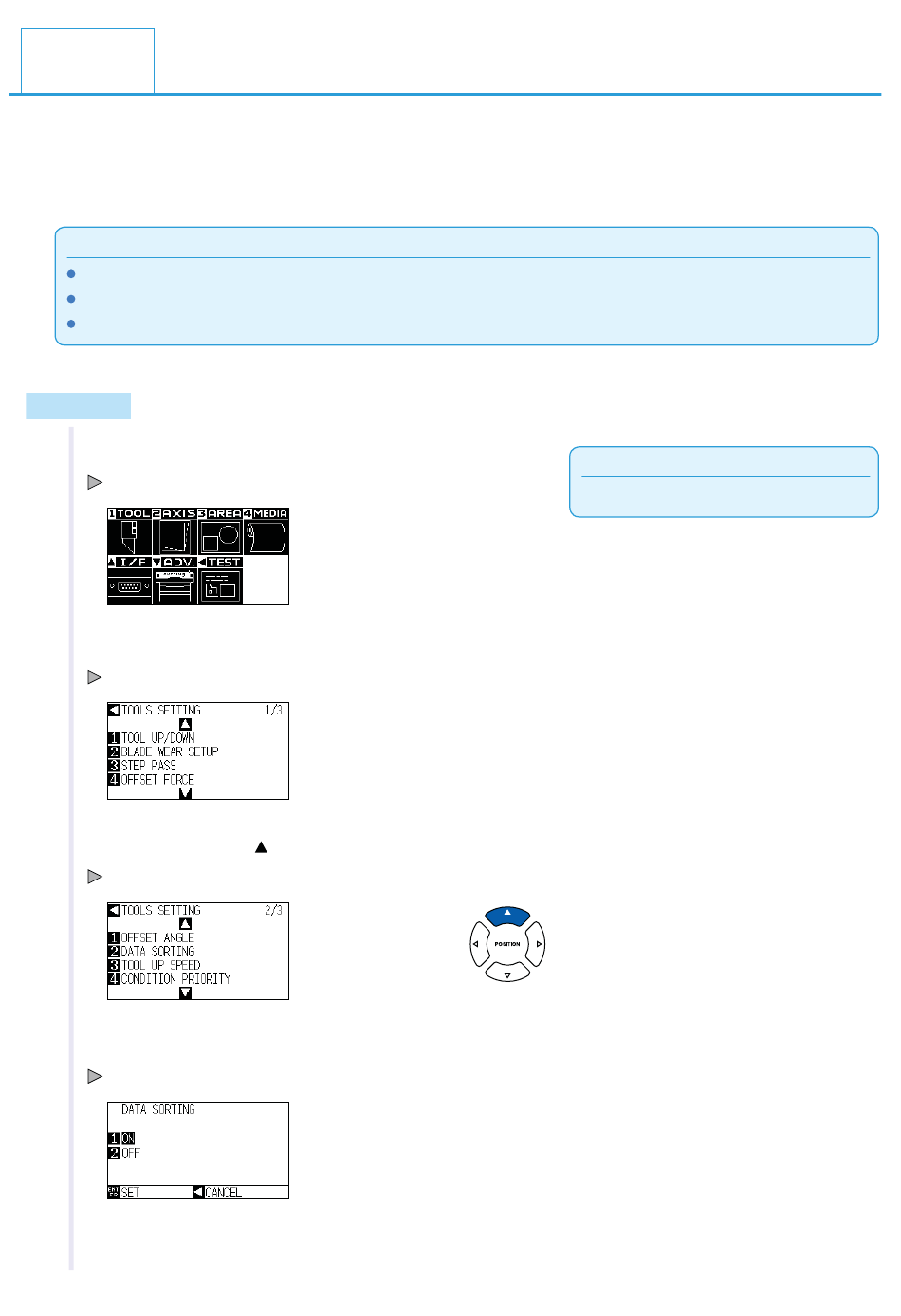

Operation
1
Press the [PAUSE/MENU] key.
MENU screen is displayed.
2
Press the [1] key (TOOL).
TOOLS SETTING screen (1/3) is displayed.
3
Press the POSITION ( ) key.
TOOLS SETTING screen (2/3) is displayed.
4
Press the [2] key (DATA SORTING).
DATA SORTING setting screen is displayed.
5
Press the [1] key (ON) or the [2] key (OFF).
Supplement
Perform the settings in Normal menu.
