2.13.1

Setting Page Length (Simple mode)

Use 1 Page Length when using Roll media.
If the machine receives data for a cut longer than the set page length, it will only cut for the set area parameters.
The excess area will not be cut.
This can also be set in Normal mode.
Reference
Default page length is 3 m. When doing long cuts, set the page length. Check the setting of the page length when cutting long length.
* Be sure to use the basket.
For the CE6000-120AP, the page length up to 50 m can be set. We give quality assurance for page feeding up to 3 m. (Under the
condition that the media described below is used.)
• Be sure to use the basket.
• Media: genuine Graphtec brand products
• Setting Conditions: Speed under 30, acceleration under 2.
• Perform pre feed for the amount to be used before cutting.
• Leave the media in environment to use for adequate time if the deviation of temperature and humidity is big.
• Set the both push rollers at least 15mm inside the edge of media.
• The paper needs to be reset after cutting 5 consecutive pages.
• Each page should be removed from the basket after it has been cut.
When setting media for long-plotting, set the tension on the left and right of the width of the media to a uniform value. If it is not
uniform, the media may be removed from the roller that presses it during plotting.
Make sure to level the whole of the media to get rid of unevenness before cutting. (See "Setting the number of pre feeds"
Also, pre feeding can be done automatically when the data is received (see "Perform Automatic Pre Feed When Cut Data is
Received"
P.7-4
Feed)" ).
P.7-6
* Pre feeding will stabilize the feed by acclimating the media, taking out the slack.
This setting is maintained even after the power is turned off.

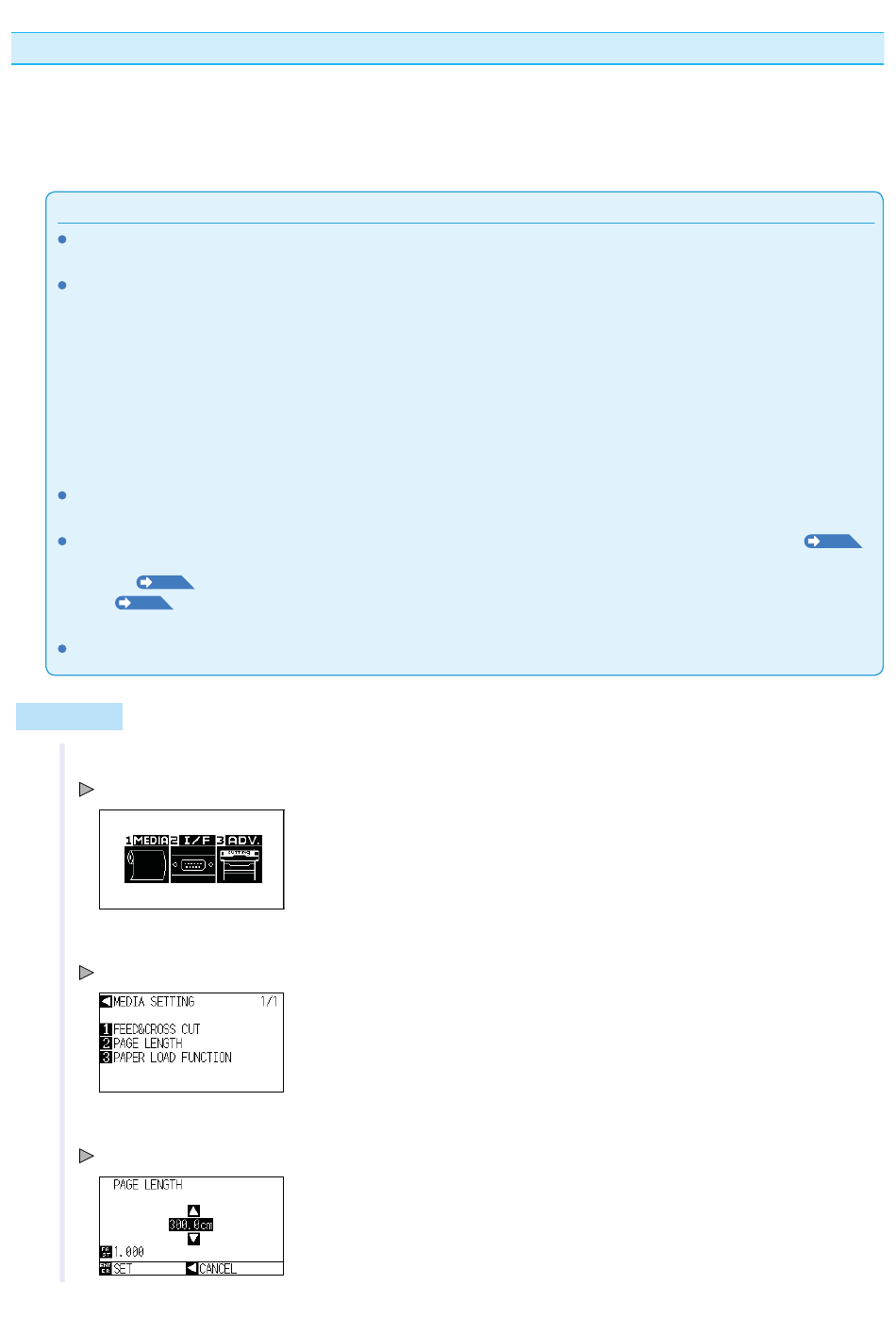

Operation
1
Press [PAUSE/MENU] key.
MENU screen is displayed.
2
Press [1] key (MEDIA).
MEDIA SETTING screen is displayed.
3
Press [2] key (PAGE LENGTH).
PAGE LENGTH screen is displayed.
), or done automatically when the media is loaded (see "Perform Automatic Pre Feed When Media is Set (Initial
2-44
).
P.4-7
