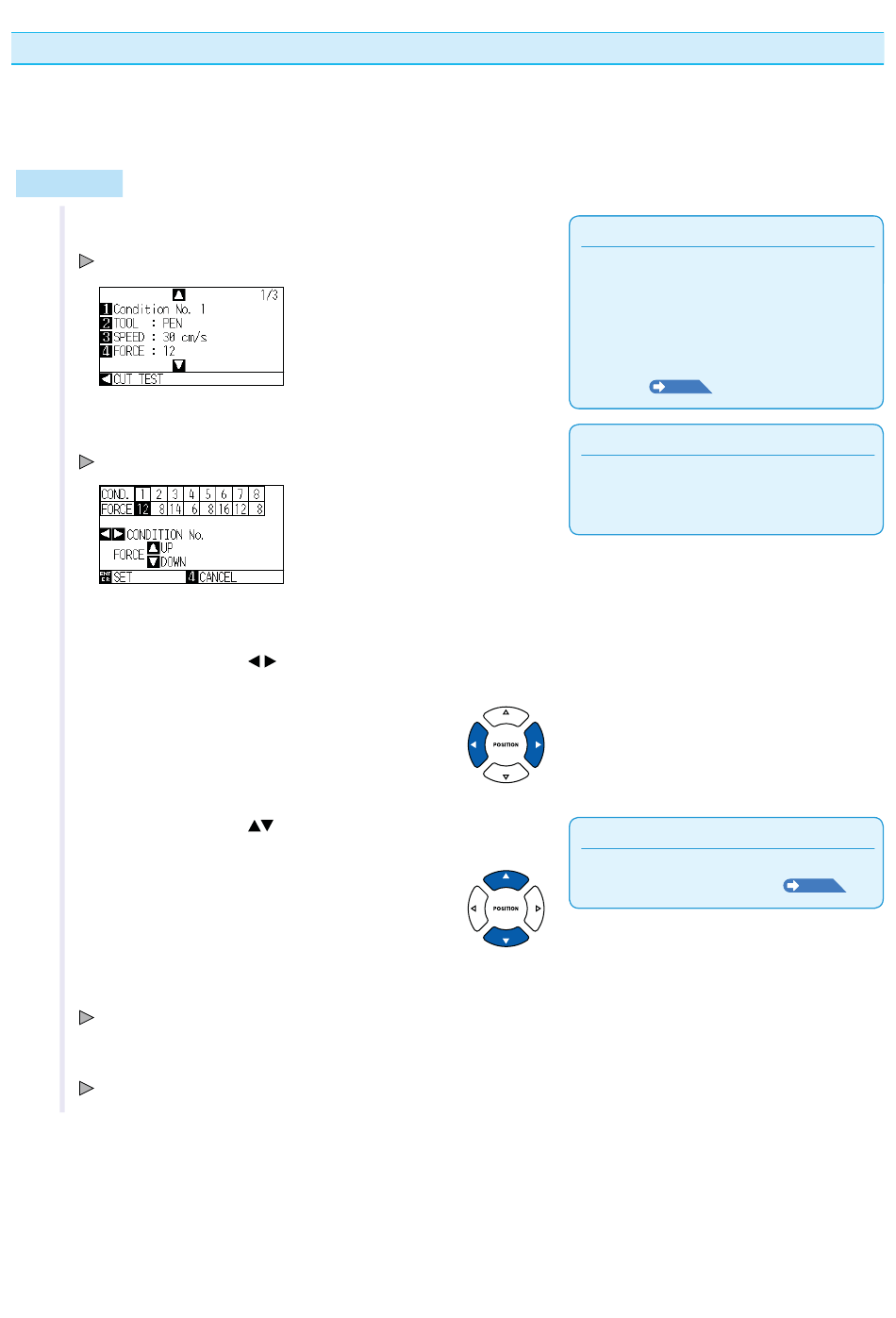

Setting the Force

Set the cutting force that is used in each of the condition numbers.
Setting range: Condition No.1: 1 to 31
Condition No.2 to No.8: 1 to 38
Operation
1
Press the [COND/TEST] key in the default screen.
CONDITION setting screen (1/3) is displayed.
2
Press the [4] key (FORCE).
FORCE setting screen is displayed.
* Display may vary depending on the selected condition number.
3
Press the POSITION (
number (CONDITION No.).
4
Press the POSITION (
setting value.
5
Confirm the setting and press the [ENTER] key (SET).
Setting will be set, and it will return to CONDITION screen (1/3).
6
Press the [COND/TEST] key.
It will return to default screen.
) key and select the condition
) key and increase or decrease the
2-35
Supplement
Supplement
Please select Condition No.1 under "Selecting
Perform the settings in Normal mode.
the Tool Conditions" when setting up tool
conditions for the pen plunger, and select from
Condition No.2 to Condition No.8 when setting
up the tool conditions for the cutter plunger.
For more information, see "2.10 Selecting Tool
Condition" .
P.2-29
Supplement
It will return to CONDITION screen (1/3)
without changing the settings when you press
the [4] key (CANCEL) .
Supplement
Guideline to set force
See "Setting the Tool Condition" .
P.2-30
