5

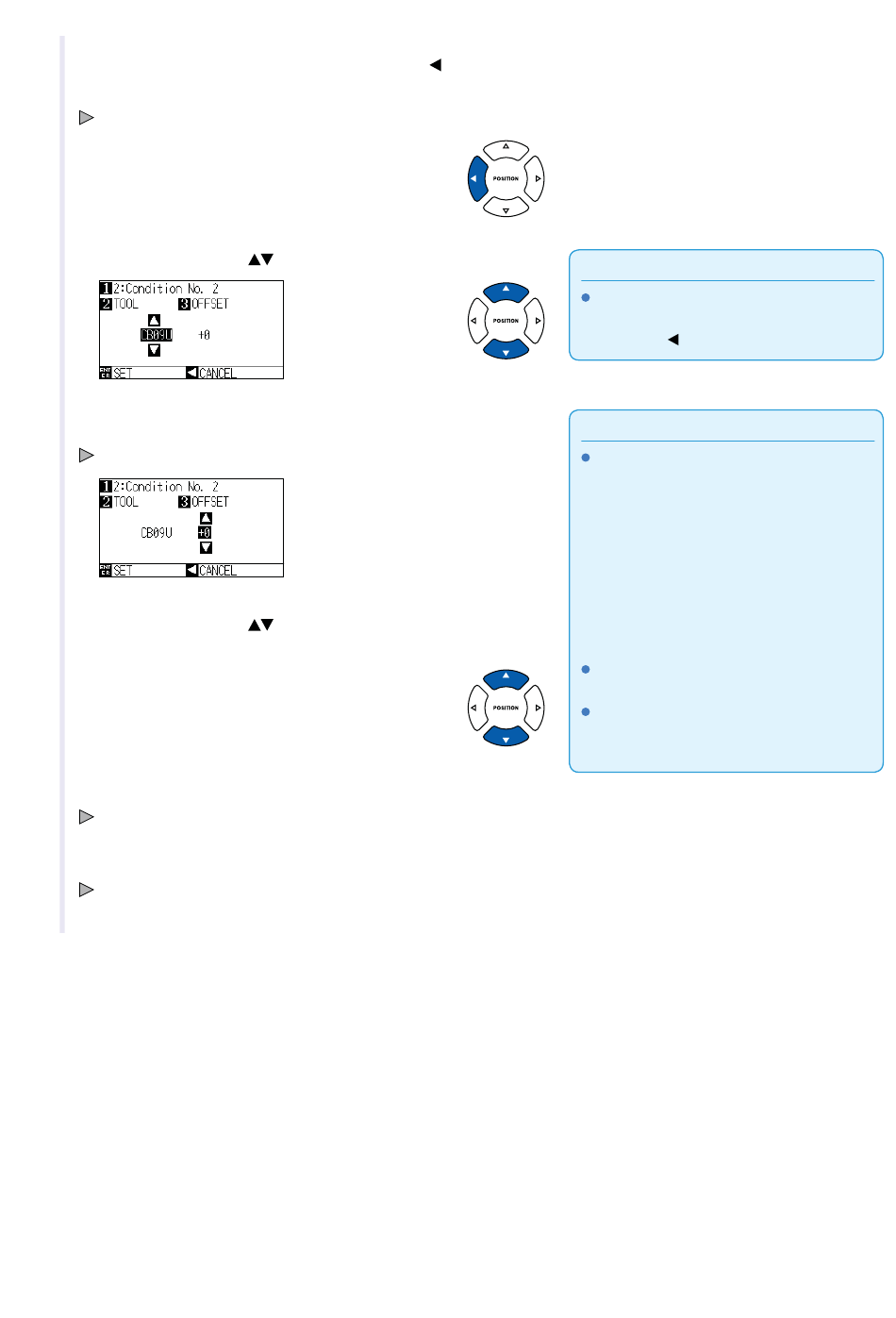

Confirm the setting and press the POSITION ( ) key
(PREVIOUS) .
CONDITION No. will get set and return to TOOL setting screen.
6
Press the POSITION (
7
Press the [3] key (OFFSET).
OFFSET setting screen is displayed.
8
Press the POSITION (
setting value.
9
Confirm the setting and press the [ENTER] key (SET).
Setting will be set, and it will return to CONDITION screen (1/3).
10
Press the [COND/TEST] key.
It will return to default screen.
) key, and set the tool.
) key and increase or decrease the
2-33
Supplement
It will return to CONDITION screen without
changing the settings when you press the
POSITION ( ) key (CANCEL) .
Supplement
What is Offset
It will adjust the difference between the tip
of the blade in the plunger and the center of
the plunger. There are standard adjustment
values for each cutter blades. Fine
adjustment will be made to that standard
values here. (Adjustment will be made with
standard value as 0.)
It is not necessary to set the offset if "PEN",
was selected in the tool settings. (not
displayed)
Guideline to Set Offset
Refer to the Cutter Blade Manual.
To return to continue the settings of other
tool condition number, return to step 3 by
pressing the [1] key.
