SET BLADE GROUP (blade wear group settings)

These will be recorded under the Condition No. group.
Operation

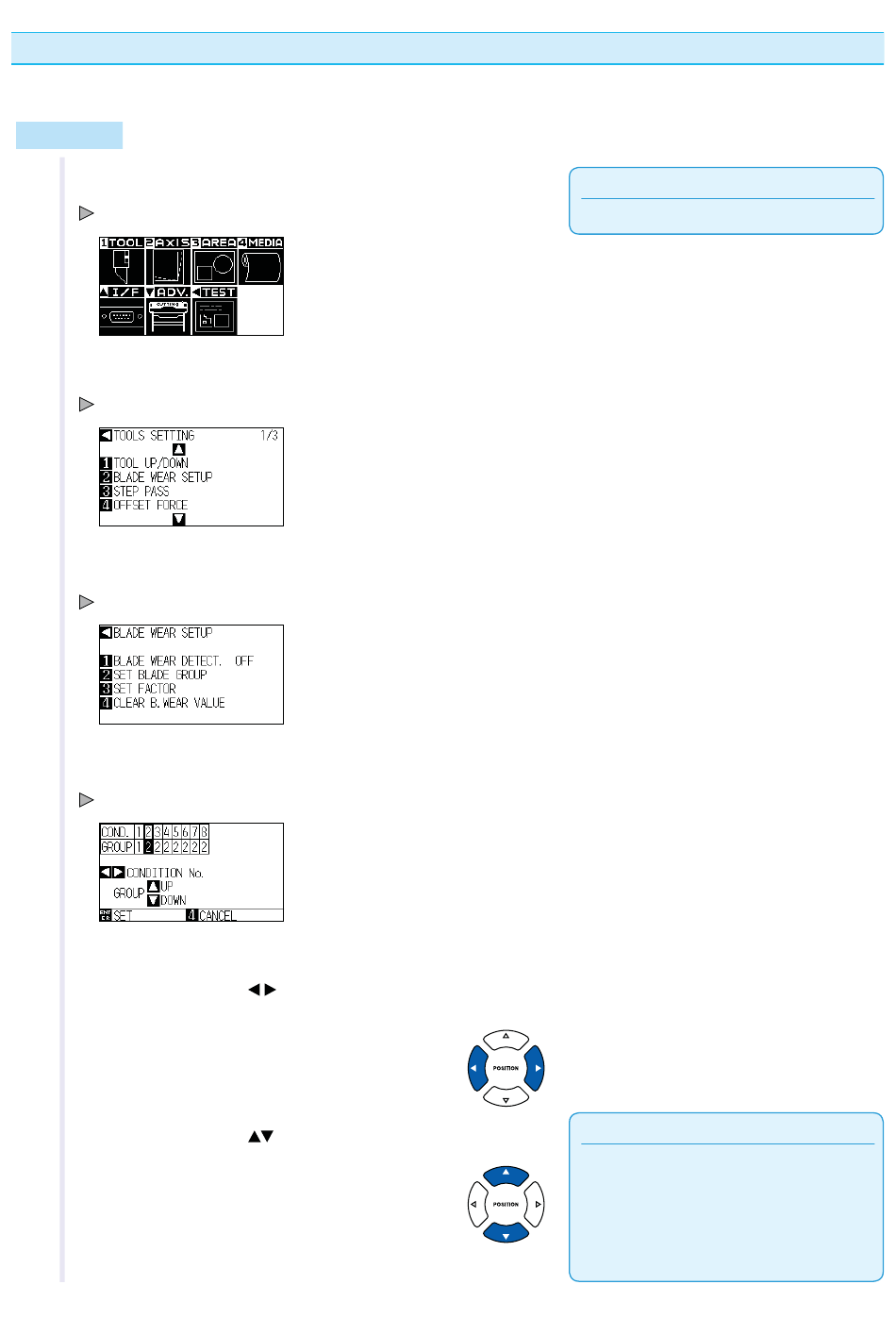

1
Press the [PAUSE/MENU] key.
MENU screen is displayed.
2
Press [1] key (TOOL).
TOOL SETTING screen (1/3) is displayed.
3
Press [2] key (BLADE WEAR SETUP).
BLADE WEAR SETUP screen is displayed.
4
Press [2] key (SET BLADE GROUP).
The Blade Group settings screen is displayed.
* Display may vary depending on the selected tool condition number.
5
Press the POSITION (
number (CONDITION No.).
6
Press the POSITION (
setting value.
)keys to select the tool condition
) key and increase or decrease the
6-17
Supplement
Perform the settings in Normal menu.
Supplement
The Condition No's. are divided into a maximum
of 9 available groups. Condition No.1 for
plotting pens and is fixed as group 1; however,
Conditions 0, and 2-8 and associated groups
can be altered. Please note that estimated
distance cannot be calculated in group 0.
