Adjust The Space Between Tools 1 And 2 - GRAPHTEC CE6000-120AP User Manual

11

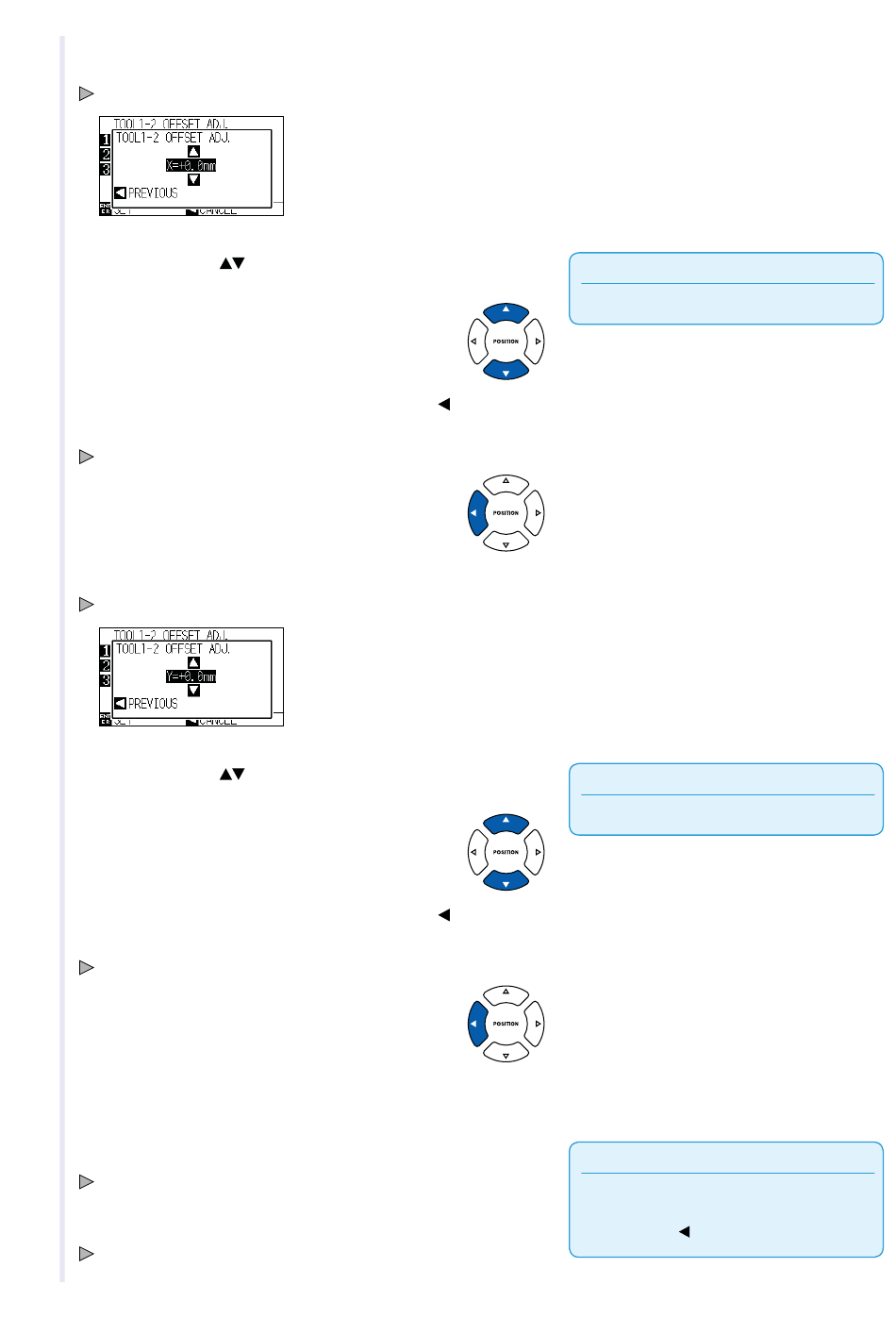

Press [2] key (X=+0.0mm).
Adjust the space between tools 1 and 2 (X) setting screen is displayed.
12
Press POSITION (
parameters.
13
Confirm the settings and press the POSITION ( ) key
(PREVIOUS).
Adjust the space between tools 1 and 2 (X) setting screen is displayed.
14
Press [3] key (Y=+0.0mm).
Adjust the space between tools 1 and 2 (X) setting screen is displayed.
15
Press POSITION (
parameters.
16
Confirm the settings and press the POSITION ( ) key
(PREVIOUS).
Adjust the space between tools 1 and 2 (X) setting screen is displayed.
17
Repeat steps 7 through 16 until there is no longer a gap
between the two tools.
18
Confirm the space and press the [ENTER] key (SET).
Setting will be set, and it will return to TOOL SETTING screen (3/3).
19
Press the [PAUSE/MENU] key.
It will return to default screen.
) keys to increase or decrease the
) keys to increase or decrease the
Supplement
You can set between -3.0mm and +3.0mm.
Supplement
You can set between -3.0mm and +3.0mm.
Supplement
It will return to TOOLS SETTING screen (3/3)
without changing the settings when you press
the POSITION ( ) key (CANCEL).
6-24
