2.13.4 Setting RS-232C interface (Simple menu)

When using the RS-232C interface, set the command settings, step size settings (when using GP-GL
commands), origin point settings for HP-GL (when using HP-GL commands), and transfer conditions for the RS-
232C interface.
In Normal menu, set the command settings, step size settings (when using GP-GL commands), origin point
settings for HP-GL (when using HP-GL commands). (
the Step Size", P.3-9
The transfer condition for RS-232C interface can be set from the control panel. The transfer condition should be
set to the same in the software used and in the CE6000-120AP. If there is a mistake in the settings an error may
display in the machine and lack of data can cause a malfunction. In such a case, please confirm the transfer
condition settings again.

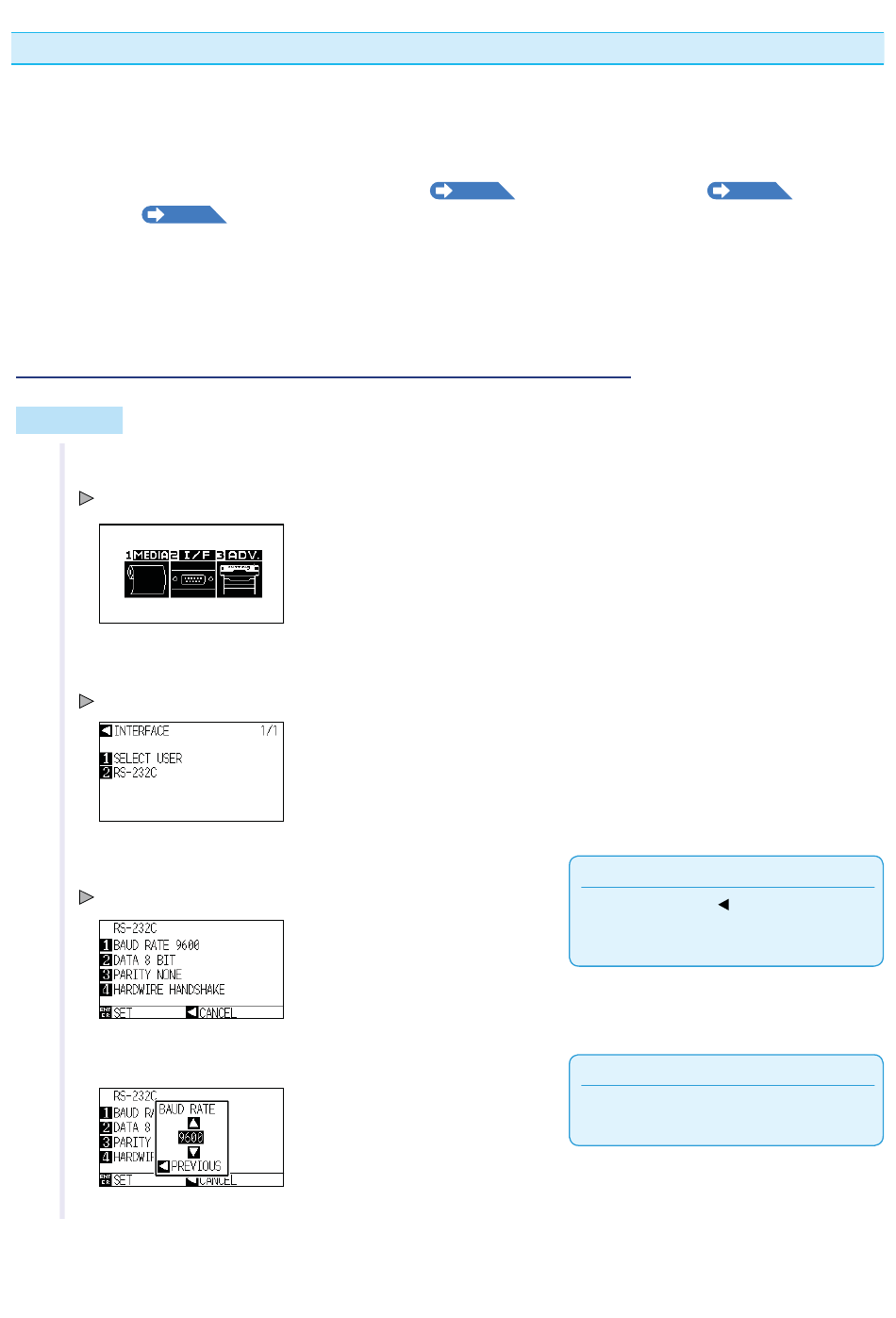

Changing and saving the RS-232C interface settings

Operation
1
In default screen, press [PAUSE/MENU] key.
MENU screen is displayed.
2
Press [2] key (I/F).
INTERFACE screen is displayed.
3
Press [2] key (RS-232C).
RS-232C screen is displayed.
4
Press [1] key (BAUD RATE).
"Setting Origin Point When HP-GL is Set")
P.10-2 "Setting the Command",
Supplement
Press the POSITION ( ) key (CANCEL) to
return to the INTERFACE setting screen
without changing any settings.
Supplement
Baud rate can be set to 19200, 9600, 4800,
2400, 1200, 600, or 300.
2-49
P.10-4 "Setting
