7

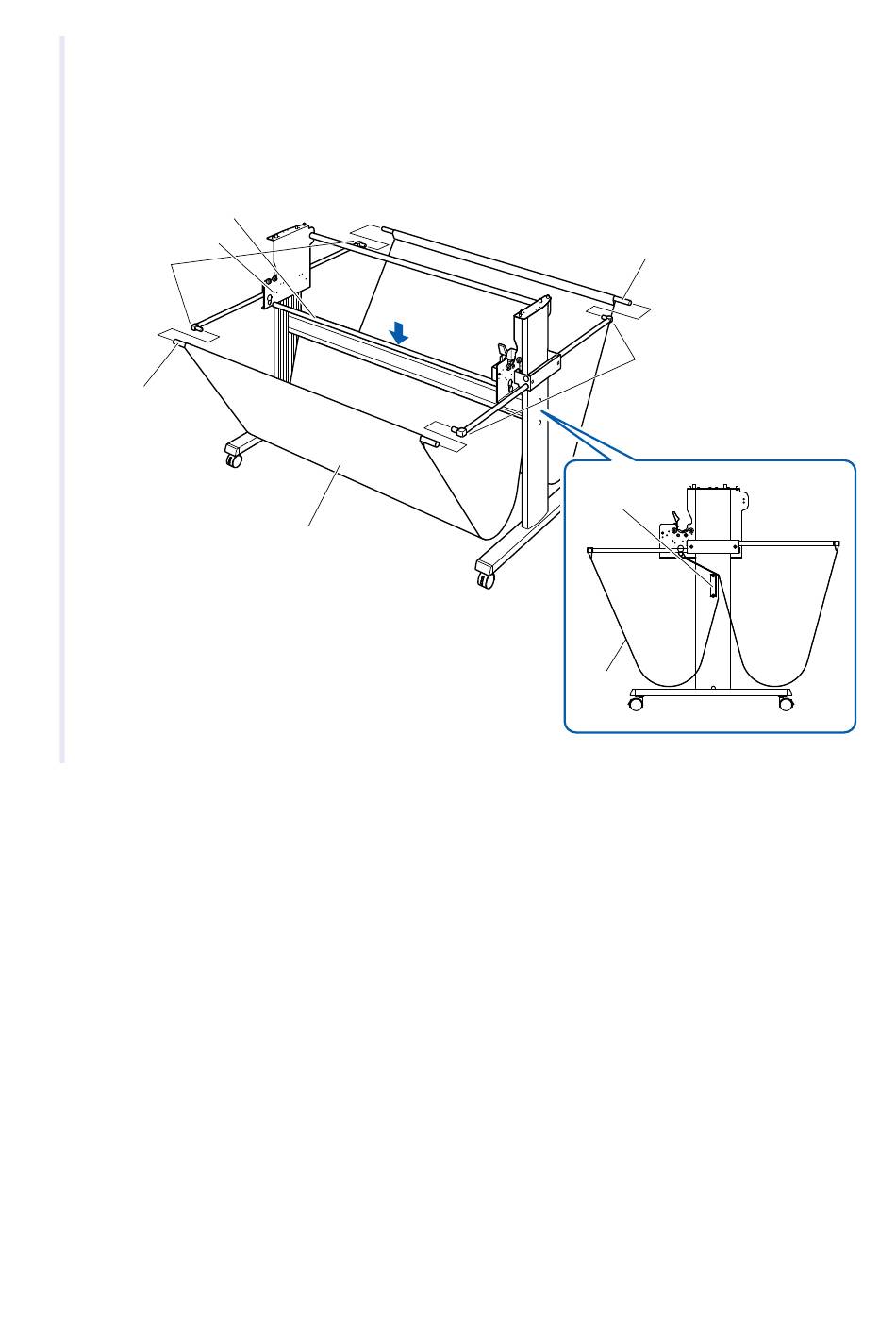

Using the middle sheet supporting pipe, attach the basket
assembly from step 6 to the media stocker, then attach
the joints from the assembly from step 5 to the long sheet
supporting pipe from step 6.
The middle of the basket should pass over the back end of
the center bar.
Sheet supporting pipe (middle)
Media stocker
Joint
Sheet supporting
pipe (long)
Basket
1-9
Sheet supporting pipe (long)
Joint
Center bar
Basket
