Administrative connections

module. An administrative IP connection can also be established through the
network supported by the Gigabit Ethernet port found only on the IP2000 module.
The following information describes these physical connections.

Serial connection to a console

Figure 4-1 shows a cable connection from a Stinger CR ATM DSLAM unit to a
console terminal.
Note
Although an IP2000 module is depicted, the same connection is made to a
control module in the same way. For connector details, see "Control module
interfaces" on page 2-8, and "IP2000 interfaces" on page 2-10.

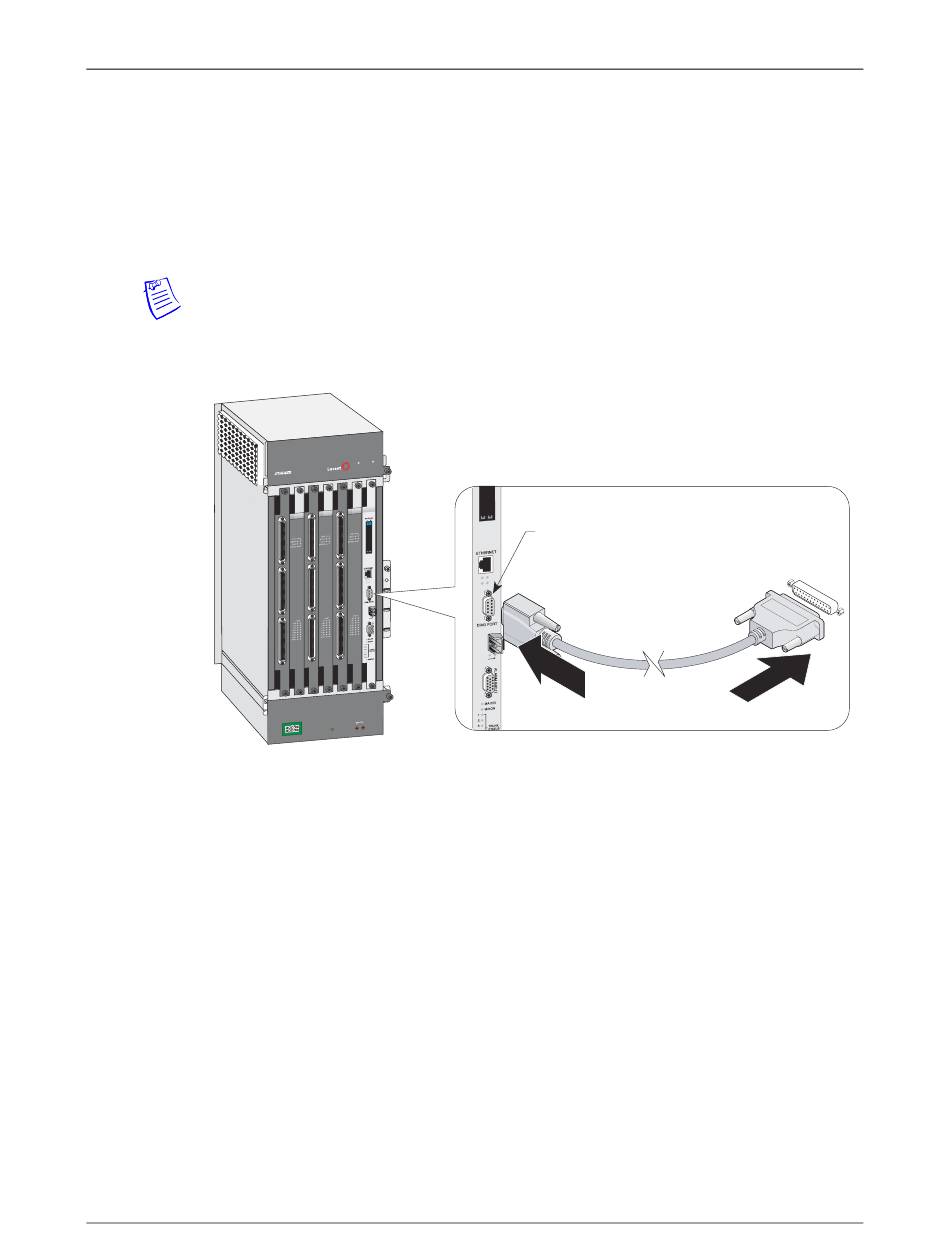

Figure 4-1.
To connect the console terminal to the Stinger CR ATM DSLAM unit, connect one
end of a shielded straight-through cable to the diagnostic port (DIAG PORT) on the
IP2000 or control module. Then connect the other end of the cable to the serial port
on the console device.
The diagnostic port on the controlling module in the COP slot consists of a female
DB-9 connector. Examine the serial connector of your PC or dumb terminal to ensure
that your shielded straight-through cable has the proper connectors. If needed, you
can use DB-9-to-DB-25 converters or gender converters to complete this connection.
See Appendix C, "Cables and Connectors," for detailed information about the pinouts
on the console serial port.

10/100 Ethernet connection to a workstation console

After the IP address for the 10/100 Ethernet port of a Stinger unit is configured, and
the unit is connected to a 10/100 Ethernet network, an administrative Telnet
connection can be established through the network. Figure 4-2 shows an Ethernet
4-2
Serial management connection to a Stinger CR ATM DSLAM unit
COOLIN G UNIT
COOLIN G UNIT
TUS
STATUS
ST
EXTER NAL
EXTER NAL
INTERN AL
INTERN AL
RED - F
RED - FAUL ULT
GREEN - A
GREEN - ACTIVE
CTIVE
- INITIALIZI NG
- INITIALIZ ING
BLINKING GREEN
BLINKING GREEN
CT REMO TE
TE
COMP ACT REMO
COMP
COP
3
3
LIM
LPM
LIM
2
LPM
2
1
1
LIM
LPM
10
LINK
ACT
100
Gig. E
ACT
LINK
COP
3
3
LIM
LPM
LIM
2
2
1
LPM
1
LIM
LPM
WER INPUT S
S
V.CHE CK
.CHEC K
POWE R INPUT
PO
-48V
0V
STATU S
TUS
ST
+190V
TE POW ER SUP
WER SUP PLY
PL
-190V
PO
CT REM OTE
O
COM P
COM PAC T REM
The Stinger® Compact Remote ATM DSLAM Getting Started Guide
Diagnostic
port
LIN K
10
ACT
100
Gig . E
ACT
LINK
To console
serial port
