Initial Stand-alone Configuration
Administrative connections
Figure 4-3.
To connect a management workstation to the Stinger CR ATM DSLAM unit using an
indirect Ethernet connection:
1 Connect the optical fiber to the Gigabit Ethernet port on the IP2000 module.
2 Connect the other end of the optical fiber to an optical switch that provides access to the
management network.
3 Ensure that the management workstation has connectivity to the management network on
which the unit resides.
4 Ensure the Ethernet transceivers are connected properly to the network.

Modem connection to a workstation console

The STGR-CM-B control module is equipped with an internal modem. This modem is
configured by default to automatically answer any incoming calls. For this reason,
you need only connect a standard analog telephone line to the RJ-11 jack on the face

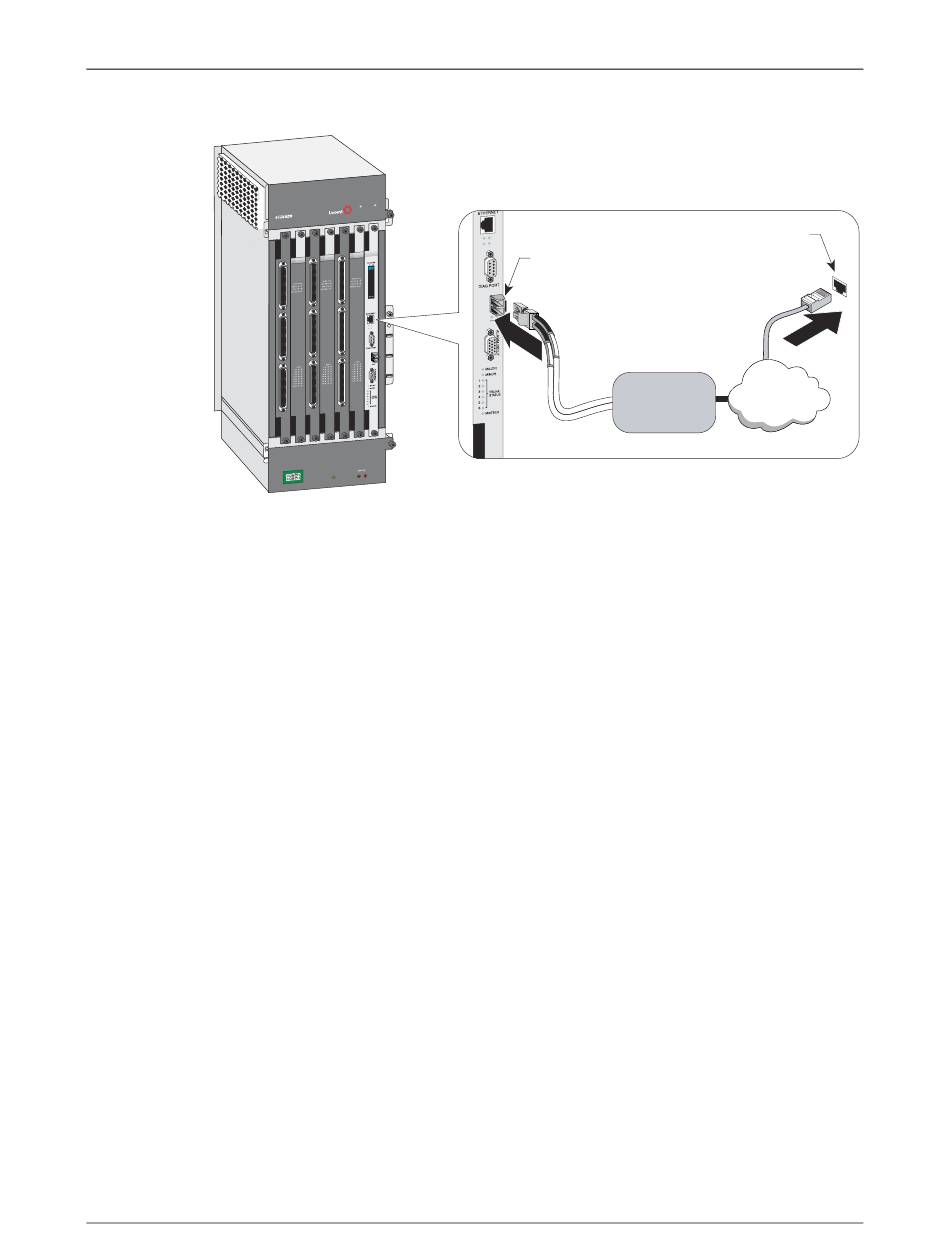

of the control module. Figure 4-4 shows the Compact Remote ATM DSLAM jumper
connection for the internal modem.
