Enclosure and Component Installation
Stinger CR enclosure Mounting hardware

Pedestal mounting hardware

The Stinger Compact Remote can be mounted on an outside pedestal. The pedestal
cable cover and splice cover hardware can be ordered in kit #300719564. The
pedestal mounting hardware can be ordered in kit #300719572. These kits can also
be ordered combined as kit #300716735. This hardware is shown in Figure 3-4.
Figure 3-4.
Combined kit
#300716735

Inside rack mounting hardware

Side rack mounting brackets can be attached to the enclosure for mounting in an
equipment rack that has rails that are 23 inches apart, with 1.75in. hole spacing.
These brackets are ordered with kit number 109567164, and are shown in
Figure 3-5.
3-6

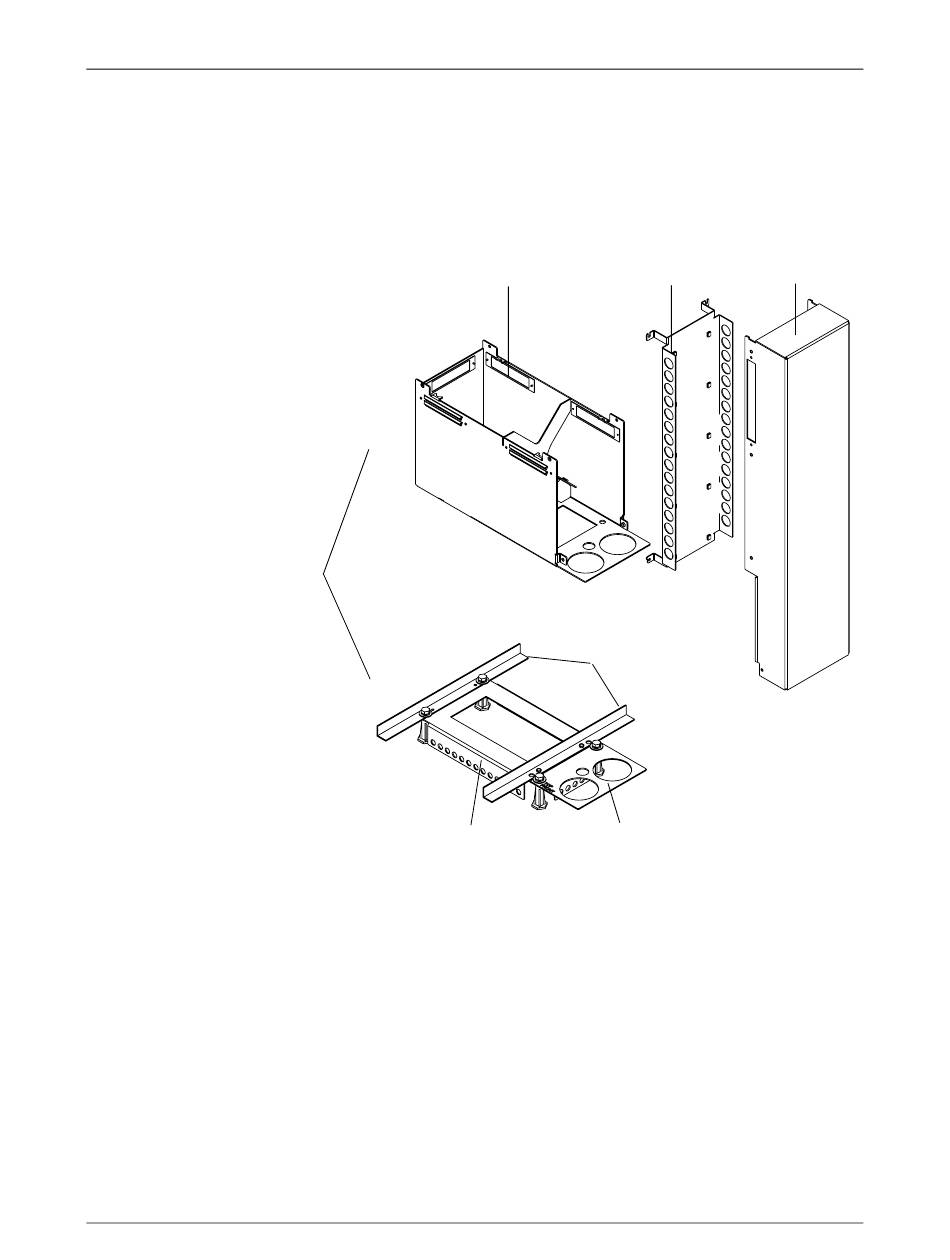

Pedestal mounting kit hardware
Pedestal cable cover
Kit #300719564
Kit #300719572
Pedestal bracket
The Stinger® Compact Remote ATM DSLAM Getting Started Guide
Splice bracket
Splice cover
Outrigger brackets
Duct alignment plate
