Enclosure and Component Installation
Mounting the enclosure on a pole
5 Place washers and nuts on the threaded ends of the two bolt ends and use a
15/16in. combination wrench to tighten the nuts until the washers begin to
become concave into the pole.
Note
head with a 15/16in. socket with a 2in. extension (min.) and handle.
6 Slide the lag bolt tabs on each of the pole mounting brackets so that the tabs are
in contact with the pole. Then use a 9/16in. socket to tighten the two nuts on
each mounting bracket that hold the lag bolt tabs in place (see Figure 3-6 on
page 3-8).
7 Of the three lag bolt holes, select the one that is in direct contact with the pole.
Drill into the pole through this lag bolt hole to a depth of at least 4 inches with a
5/16in. drill bit. Or, you can use a drill bit with the smallest diameter between
0.3in. and 0.4in. that allows the lag bolts to be threaded into the pole without
excessive force.
Note
provides access for drilling the upper lag bolt hole with a drill bit that has an
extension at least 10 inches long. If a drill bit with an extension of this length is
not available, the rear mount bracket must be removed from the pole mounting
brackets to drill the upper lag bolt hole.
8 Install the lag bolts with a 5/16in wrench.
9 Attach rear mount hanger bracket to the back of the Stinger Compact Remote
chassis, as shown in Figure 3-8.
Figure 3-8.
10 Lift the chassis so that the hanger bracket on the back of the chassis is over the
mounting tab on the top of the rear mount bracket plate (see Figure 3-1 on
page 3-2). Then carefully lower the enclosure until it is hanging from this tab.
This tab will temporarily support the enclosure while it is being secured.
11 Remove the bolts that hold the shipping brackets to the bottom of the chassis and
remove the shipping brackets.
3-10
While tightening the nut on the threaded end of the bolt, hold the bolt
A cut-out area on left side of the top edge of the rear mount bracket

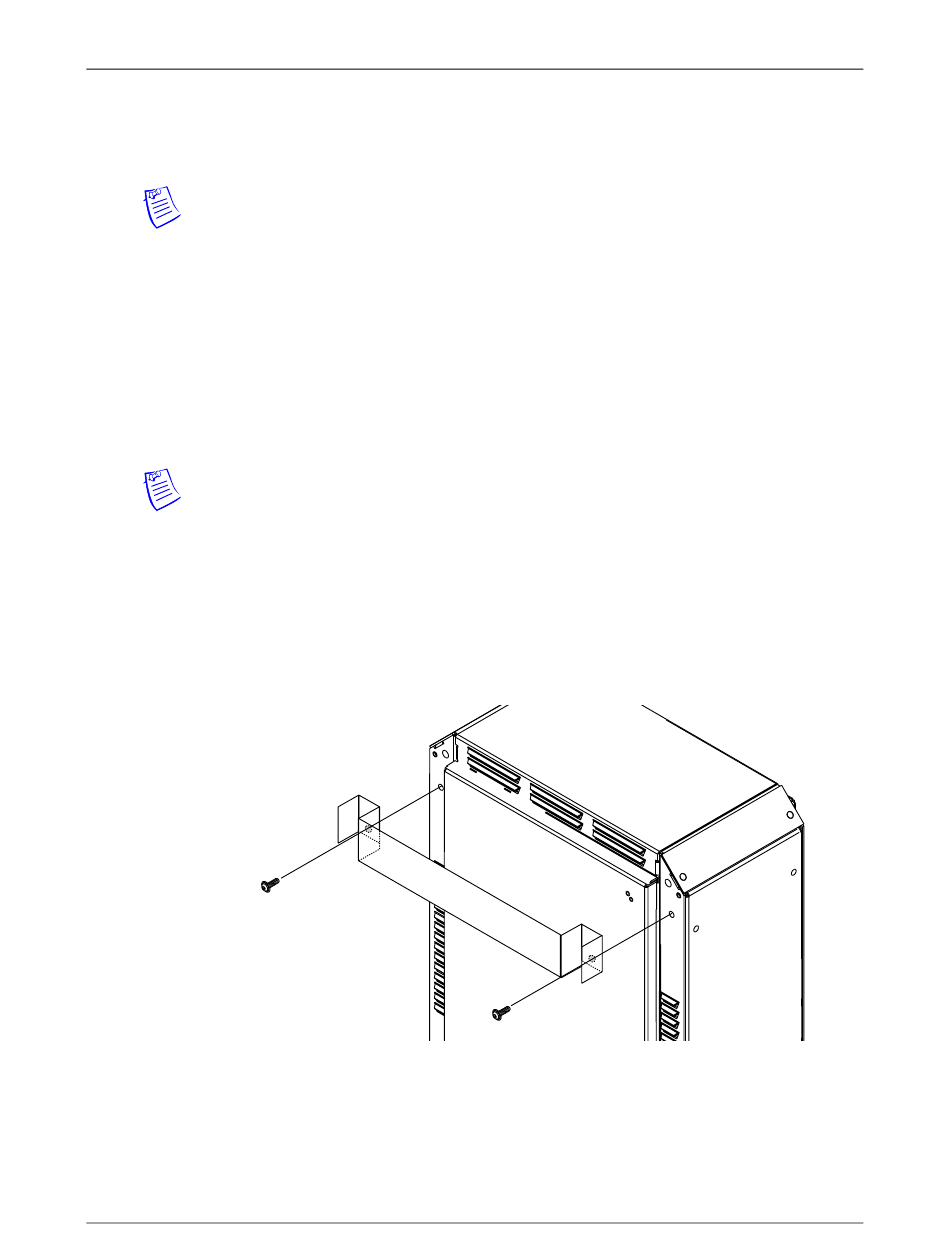

Attaching the Stinger enclosure rear mount hanger bracket
The Stinger® Compact Remote ATM DSLAM Getting Started Guide
