Enclosure and Component Installation
Status lights

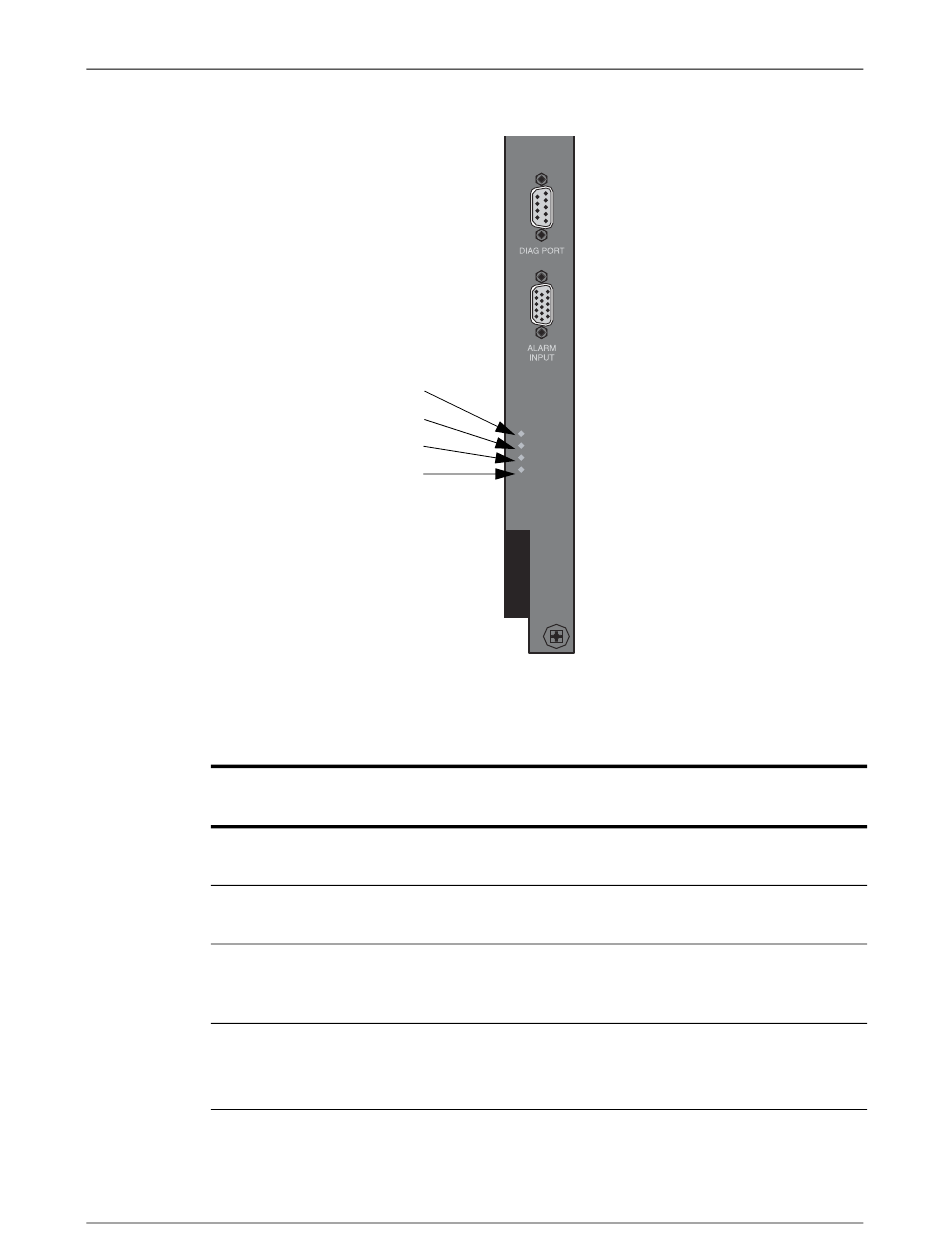

Figure 3-33. COP status lights
The FAULT LED momentarily turns ON just after startup After the system starts up,
each light monitors a state as described in Table 3-4.
Table 3-5. Status lights on the COP module
Status
light
FAULT
TA
MISC
FAC
3-44
FAULT LED
TA LED
MISC LED
FAC LED
Color
Condition Indicates
Red
ON
The system is booting or the system is in a failure
mode.
Green
ON
A test relay has been operated on an LPM to test
the copper ADSL facilities.
Yellow ON
The COP has detected a relay closure on one of
the seven pairs connected to the ALARM
connector.
Green
ON
The optical connection for the COP is operating
properly.
The optical connection for the COP has failed.
Yellow
ON
The Stinger® Compact Remote ATM DSLAM Getting Started Guide
FAULT
TA
MISC
FAC
