LIM status lights

Several status lights on the front panel of the LIM ADSL low-power 48-port LIM
indicate the status of the module and its ports. Figure 3-34 shows the front panel and
status lights of the ADSL low-power 48-port LIM. The front panel of the T1-IMA LIM
has identical lights, except that there are fewer port status lights.

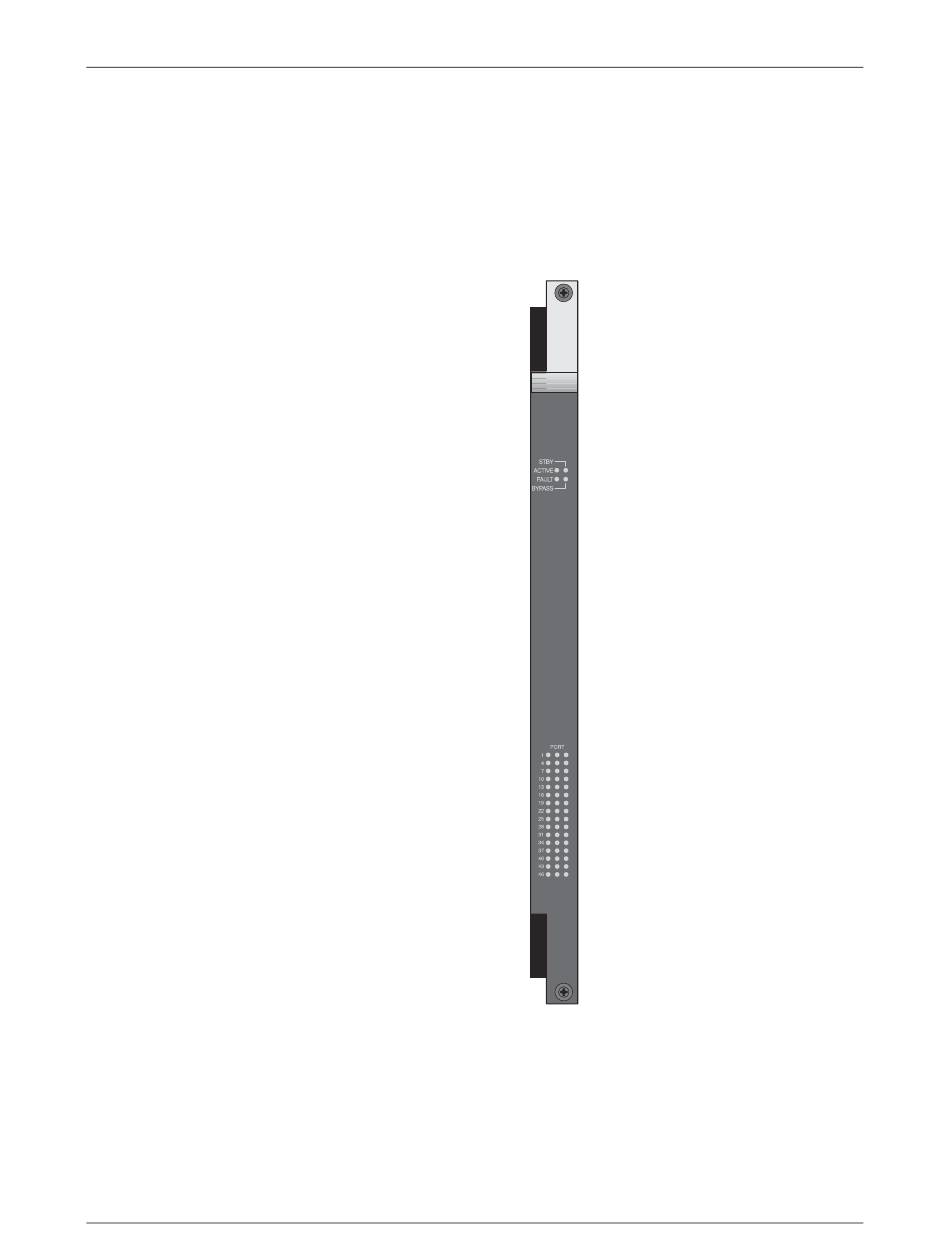

Figure 3-34. ADSL 48-port low-power LIM
All status lights illuminate briefly upon startup or restart, then remain dark until the
module passes its power-on self test (POST). When the module passes the POST and
becomes operational, the ACTIVE light illuminates. It is the only light that is on
during normal operation.
Table 3-6 explains the ADSL 48-port status lights.
