Enclosure Cable Exit Points; Optical Connectors - Lucent Technologies Stinger Compact Remote Getting Started Manual

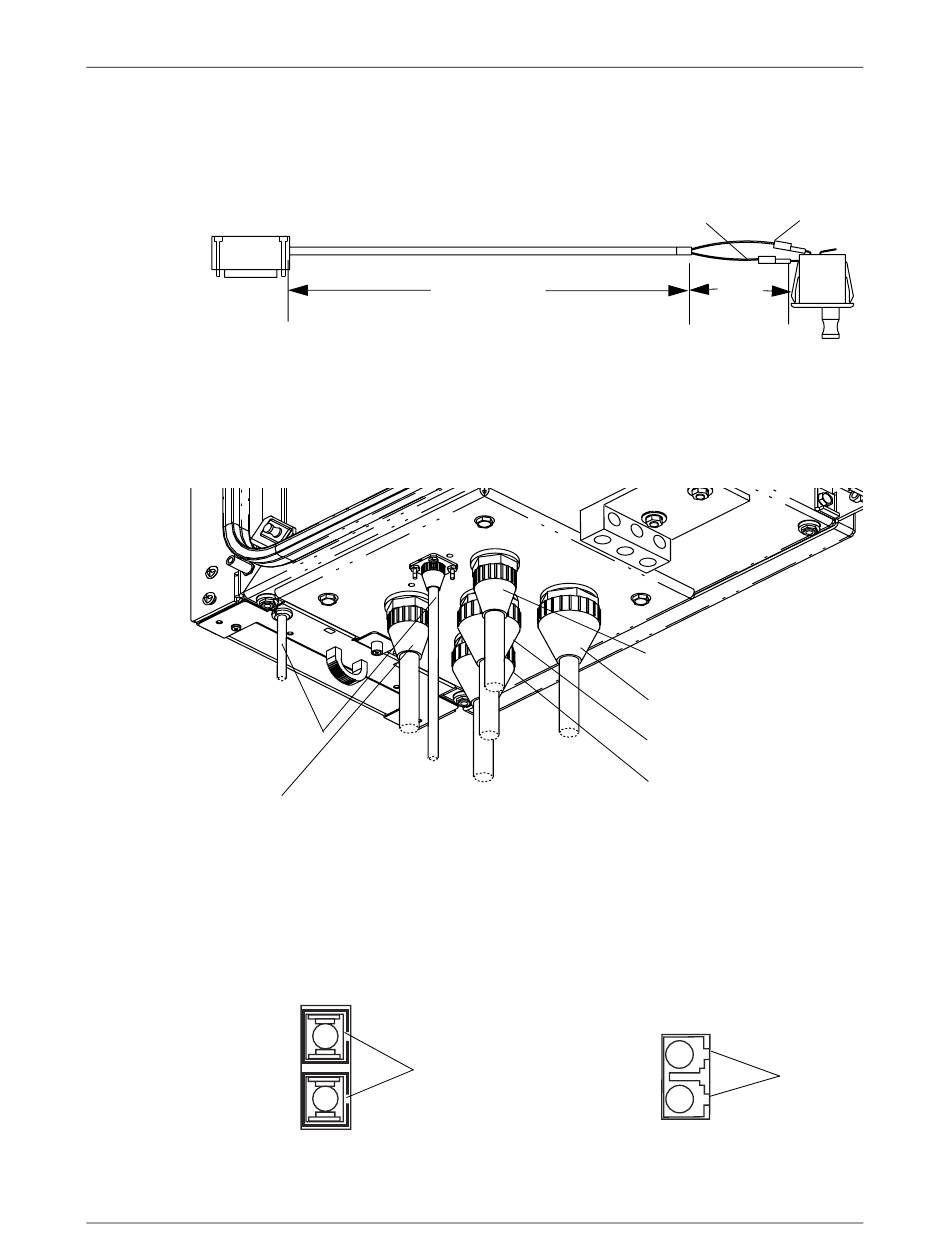

special cable connects the door alarm for the enclosure to the ALARM connector of
the IP2000 or control module. This cable is illustrated in Figure C-12.
Figure C-12.
DB-15
connector

Enclosure cable exit points

All cables and fiber that connect to the Stinger CR enter the enclosure through the
bottom of the unit. The following illustration identify each of these cables.
External fan cable
Power input

Optical connectors

Stinger OC3-ATM trunk modules use SC optical connectors. Other modules,
including the OC12-ATM, COP, and OLIM use LC small form factor connectors. The
keyways and the transmit/receive orientation of these connectors are illustrated in
Figure C-13.
Figure C-13.
Transmit
Receive
The Stinger® Compact Remote ATM DSLAM Getting Started Guide
Door alarm cable for stand-alone operation
(142.2cm)
Optical Connectors
Keyways
SC connector
52 in.
Fiber input
OSP 1
OSP 2
OSP 3
Transmit
Receive
Small form factor
LC connector
Cables and Connectors
Enclosure cable exit points
White wire
Black wire
from pin #1
from pin #2
2 in.
(51cm)
Keyways
C-21
