Enclosure and Component Installation
Status lights
Table 3-6. ADSL 48-port Annex A LIM status lights
Light
STBY
ACTIVE
FAULT
BYPASS
PORT
Note Detailed physical and configuration information for the 48-port low power
ADSL LIM is included in the Stinger ADSL Annex-A LIM Guide for LIMs with ADSL2+
Capability.

Cooling unit status lights

The Stinger CR cooling unit is shown in Figure 3-35.

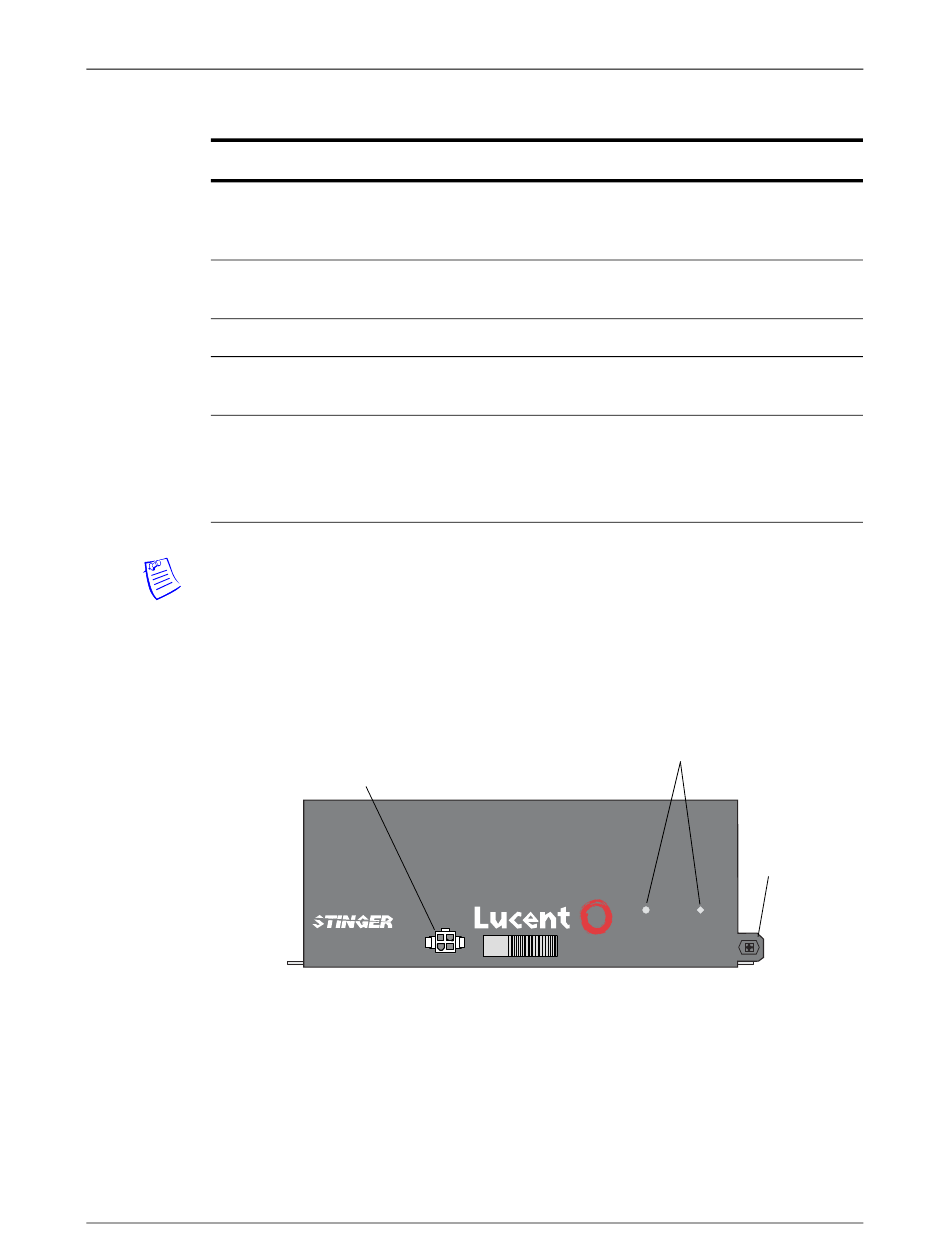

Figure 3-35. The Stinger CR cooling unit
Enclosure ventilation fan
power connector
3-46
Color Indication
Orange The module is a designated spare. The control
module switches traffic to the module if one of
the other modules fails.
Green The module or port is fully operational and no
errors have been detected.
Orange The module failed to pass its POST.
Orange The module is in bypass mode. (The module
redundancy feature is activated.)
Green The local and remote ends of the physical line
have achieved frame synchronization, and the
local end of the link has achieved cell delineation.
If the light is not illuminated, the port is inactive.
COMPACT REMOTE
The Stinger® Compact Remote ATM DSLAM Getting Started Guide
Status lights
COOLING UNIT STATUS
INTERNAL EXTERNAL
BLINKING GREEN: INITIALIZING, GREEN: ACTIVE, RED: FAULT
Locking
screw
