Figure 3-28. Connecting the door alarm to the ALARM input port
The alarm relays of external devices can be either normally opened or normally
closed. The Stinger unit can be configured to sense an alarm condition for the
opening of a normally closed relay, or the closing of a normally open relay. For
information on their configuration see "Alarm input port pinouts" on page C-3.

Modem port

The STGR-CM-B control module has an internal modem that provides dial-in access
to the TAOS interface. Analog service for this modem passes through one of the
protectors and is available on Molex connector P9 beneath the protection blocks. A
jumper cable connects this Molex connector to the RJ11 connector on the control
module. For additional details about the modem jumper cable and its connection, see
"Modem jumper cable" on page C-2.

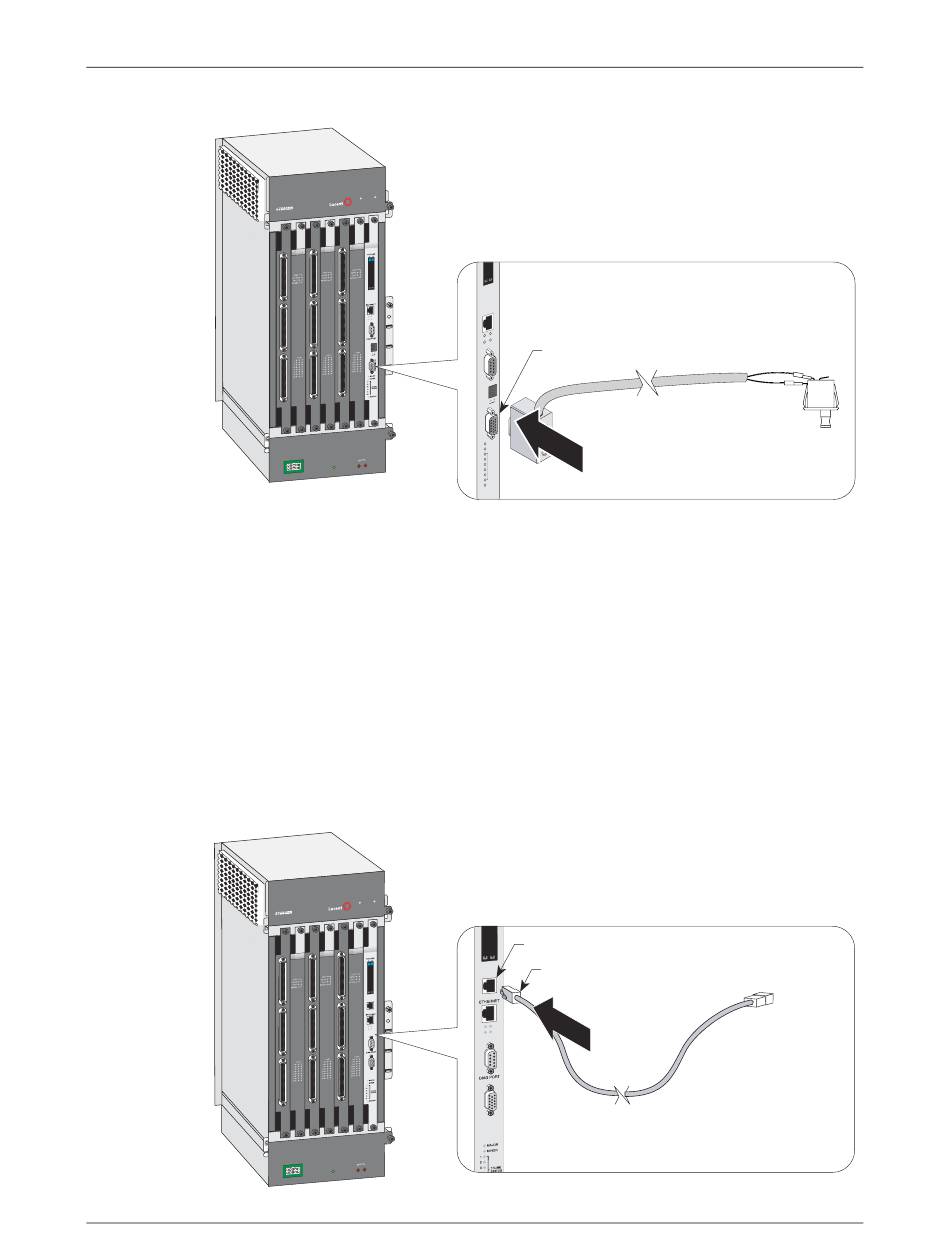

Figure 3-29. Control module modem jumper connection
The Stinger® Compact Remote ATM DSLAM Getting Started Guide
