Introduction to the Stinger Compact Remote ATM DSLAM
Stinger Compact Remote ATM DSLAM overview

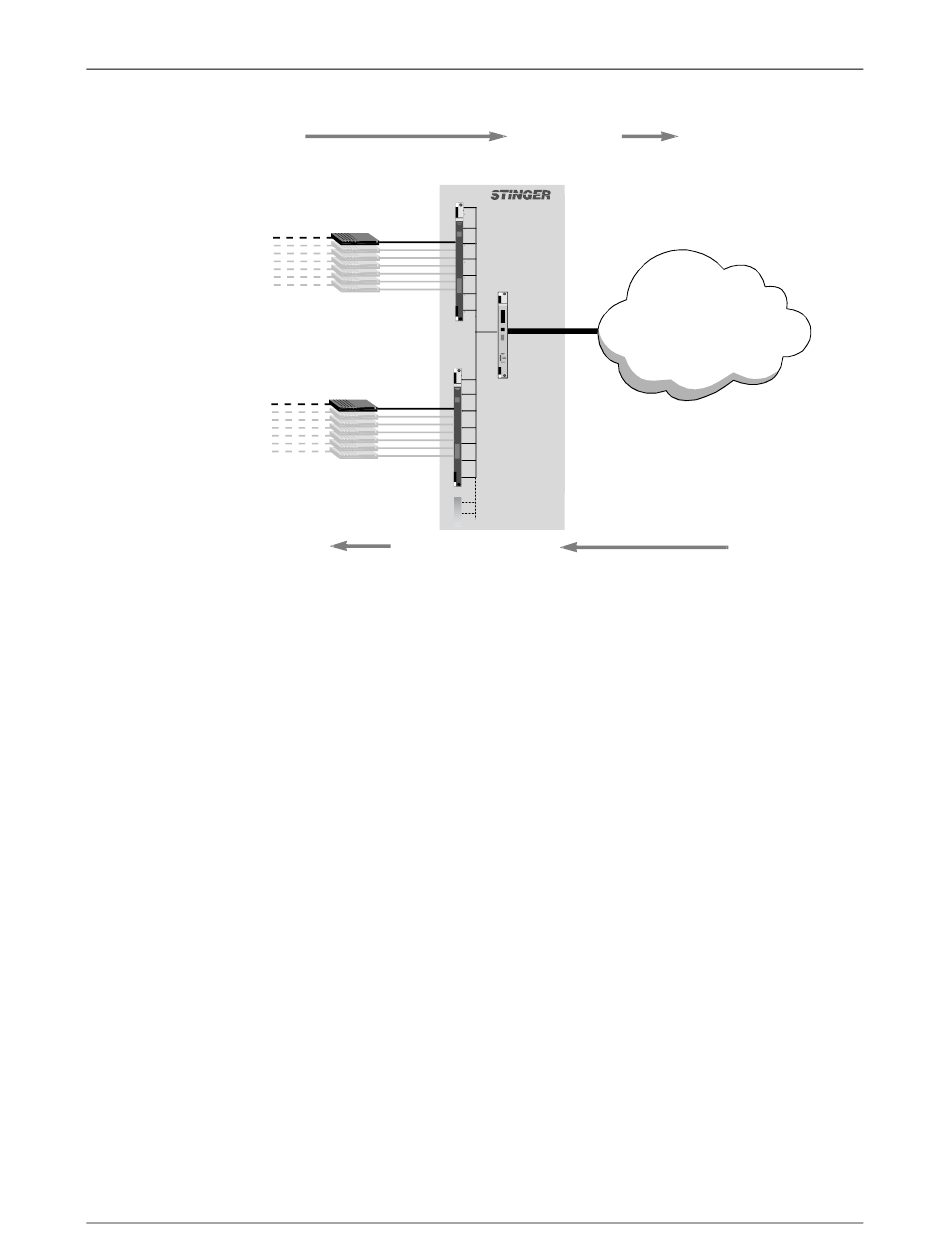

Figure 1-1. Example of Compact Remote ATM DSLAM stand-alone operation

Operation with a standard control module

A Stinger Compact Remote ATM DSLAM unit can be equipped for stand-alone
operation with a standard Revision 2 control module (STGR-CM-A or STGR-CM-B),
or the Revision 2.1 control module (STGR-CM-A2). The standard control module is
equipped with a 10/100 Ethernet port for connection to a management network. The
STRG-CM-B model is also equipped with a port for an analog dial-up management
connection to an internal modem.
The standard control modules are not equipped with a port that provides bandwidth
for end-user traffic. A temperature hardened T1 module (STGRRT-LIM-T1-8 or
STGRRT-LIM-T1-24) can be installed in a LIM slot to provide interfaces with
bandwidth for end-user traffic. Physical connections for the T1 span lines are
provided by the 48-port LPM with splitters, installed in the adjacent LPM slot. For
wiring details, see Appendix C, "Cables and Connectors."
The information for basic configuration of a unit with a control module is included in
this document. These configuration tasks establish an administrative network
connection so that complete configuration of the unit and its individual lines can be
accomplished from a remote administrative terminal.
Complete information about the TI-IMA LIMs and configuration of T1-IMA
interfaces is contained in the Stinger T1/E1 with Inverse Multiplexing for ATM (IMA)
Module Guide. Complete information about connecting 4-wire circuits through a
standard LPMs without protection is contained in the Stinger Line Protection Module
(LPM) Guide.
