The COP

The Stinger Compact Remote ATM DSLAM operates in the hosted mode with a COP.
Unlike the IP2000 module that supports standalone operation, the COP does not
provide a local management interface for configuration of the unit. It depends upon a
155Mbps optical link to a host Stinger unit for configuration and management. This
optical link, located on the COP, also carries network traffic for DSL users that are
connected to the Compact Remote ATM DSLAM unit.

COP interfaces

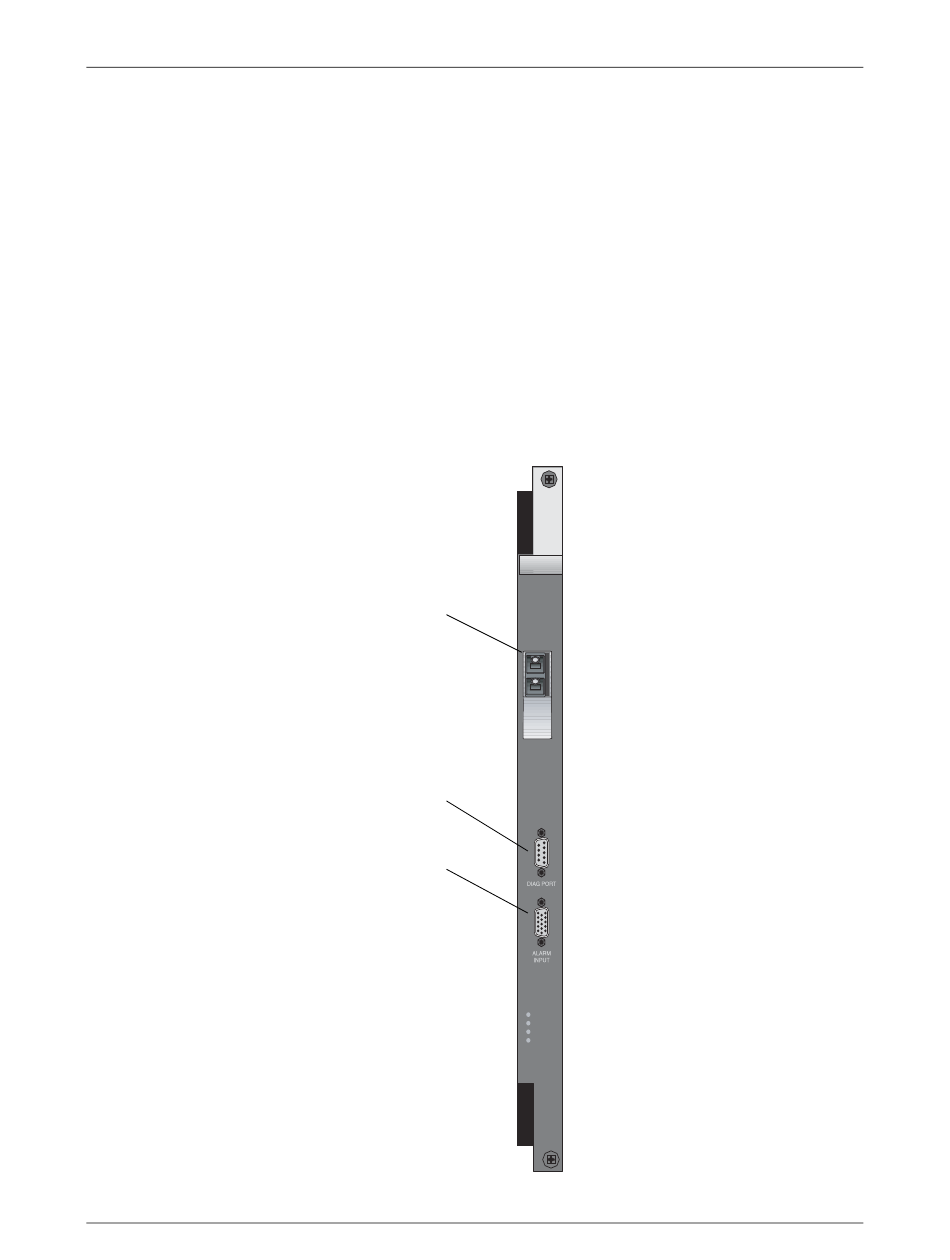

Figure 2-7 shows the location of the 155Mbps optical port, serial diagnostic port, and
alarm input port on a COP. On units that are shipped with the COP installed, the
diagnostic port is not used.
Figure 2-7.
The Stinger® Compact Remote ATM DSLAM Getting Started Guide
Control and optics pack
155Mbps optic port
Diagnostic port
Alarm input port
