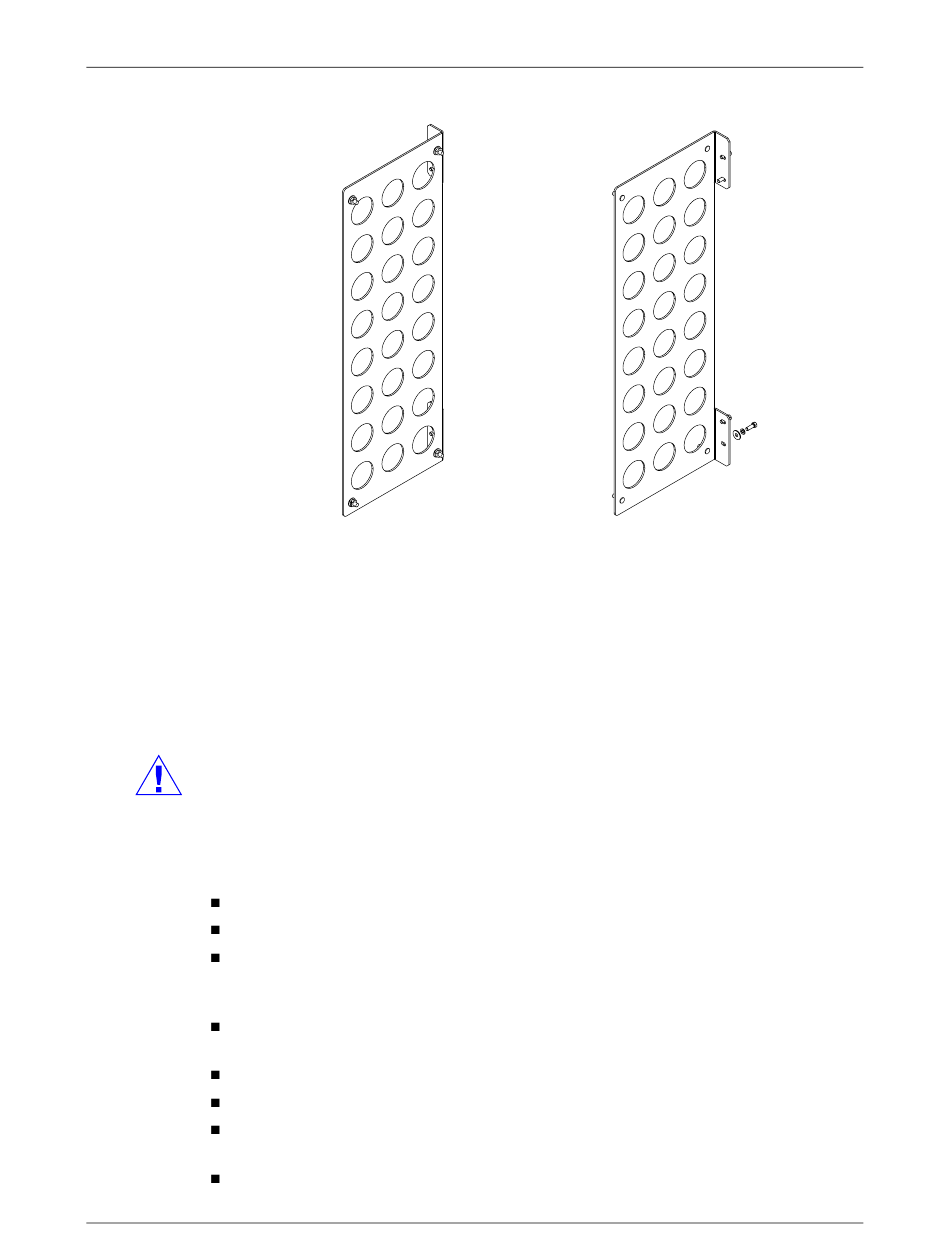

Figure 3-5.
The Stinger CR enclosure has integrated mounting brackets that are used for
mounting the enclosure. These brackets attach to vented covers on the side of the
enclosure. These mounting brackets are used with all kits except the pedestal mount
kit.
Mounting the enclosure on a pole
The Stinger Compact Remote ATM DSLAM is delivered in its integrated outdoor
enclosure with all ordered components installed prior to shipment.
Warning
make the enclosure awkward or unstable. Take all necessary precautions to anchor
the enclosure securely before installation. For detailed weight information see
"Weight and lifting requirements" on page D-10.
To install a Stinger Compact Remote enclosure on a pole, you need the following
items:
The Stinger Compact Remote enclosure
The Stinger pole mounting hardware (see Figure 3-1 on page 3-4)
2 locally supplied pole mounting bolts, 5/8in. in diameter, with a 15/16in.
hexagonal head, and a threaded length that is at least 1.25 in. (3.175cm) greater
than the diameter of the pole
An antistatic wrist strap (Lucent number: R-4987C or equivalent) for handling
components
An electric drill
A 5/16in. diameter drill bit with at a 10 inch extension.
An 11/16 inch diameter drill bit, or a drill bit 0.625 to 0.7 in. (15.875mm to
17.78mm) in diameter, that is long enough to pass completely through the pole
A 15/16 in. combination wrench
The Stinger® Compact Remote ATM DSLAM Getting Started Guide
Side rack mounting brackets
The weight and position of the components within the enclosure might
Enclosure and Component Installation
Mounting the enclosure on a pole
3-7
