Hosted System Configuration

Setting the chassis ID (optional)

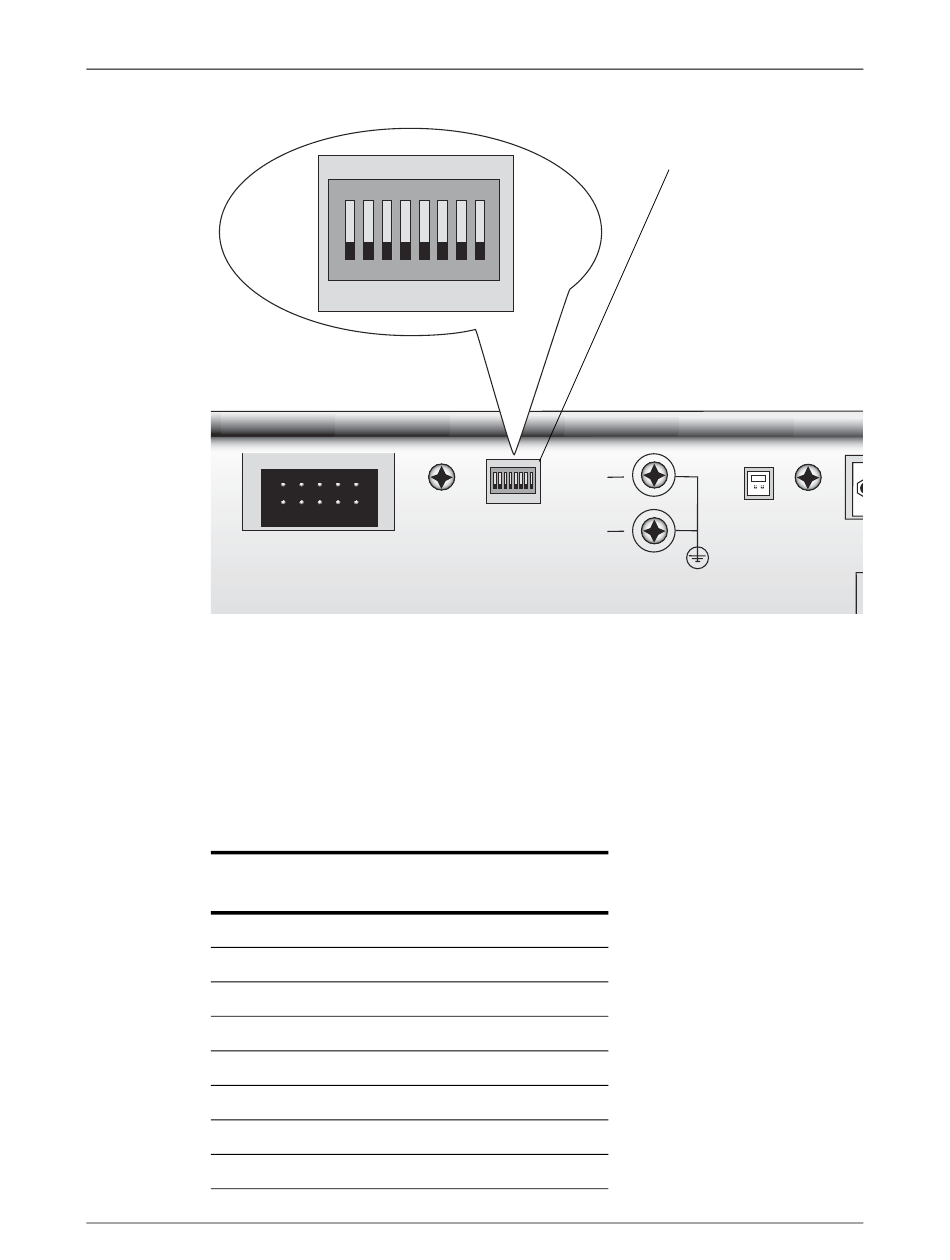

Figure 5-1.
FAN
Each DIP switch represents a single bit in an 8-bit ID number. The switches are
configured to provide the binary equivalent of decimal values from 0 (all switches
off) to 255 (all switches on). Valid Chassis ID numbers must be from 1 to 255. A
chassis ID of 0 is not allowed.
Each switch produces a binary 1, when it is set in the ON position. DIP switch
number 1 sets the most significant bit in the binary number produced by these
switches. The following table details the binary and decimal value for each of the
individual DIP switches.
Table 5-1. Validation ID DIP switch setting values
Switch
number
1
2
3
4
5
6
7
8
5-2
Chassis validation ID DIP switches
ON
1 2 3 4 5 6 7 8
Value on Value off
(binary)
1 0
1 0
1 0
1 0
1 0
1 0
1 0
1 0
The Stinger® Compact Remote ATM DSLAM Getting Started Guide
Chassis ID DIP switches
SIGNAL
ID
-48V
RETURN
Value on
(decimal)
128
64
32
16
6
4
2
1
DOOR
ALARM
