Interpreting OLIM status lights

Interpreting OLIM status lights
The OLIM has status lights that indicate the overall status of the card and each of its

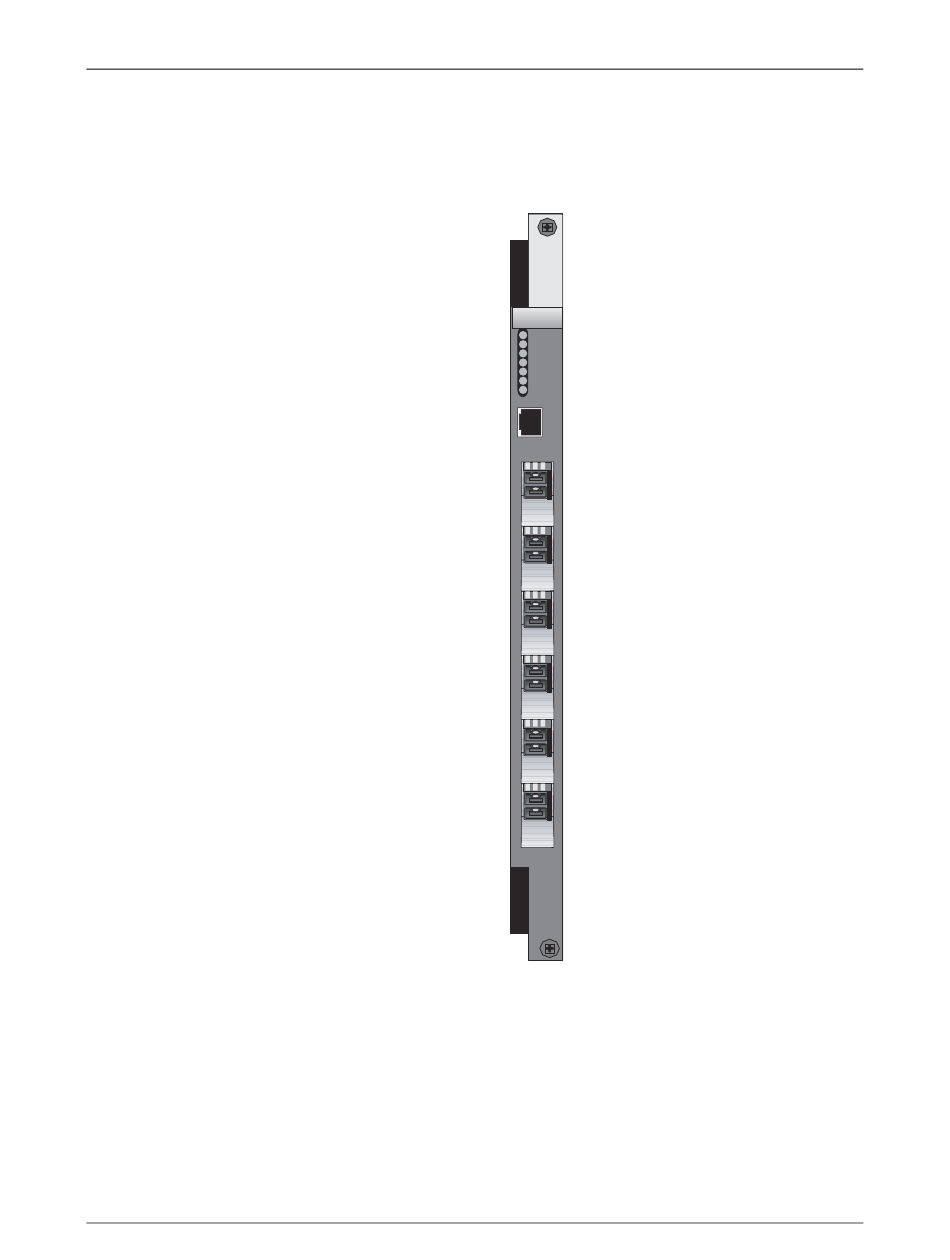

six optical interfaces. Figure B-1 shows the Stinger OLIM.
Figure B-1.
B-2
the Stinger OLIM
The Stinger® Compact Remote ATM DSLAM Getting Started Guide
FAULT
FAC 1
FAC 2
FAC 3
FAC 4
FAC 5
FAC 6
PORT 1
PORT 6
