Enclosure and Component Installation
Installation and replacement of Stinger CR components

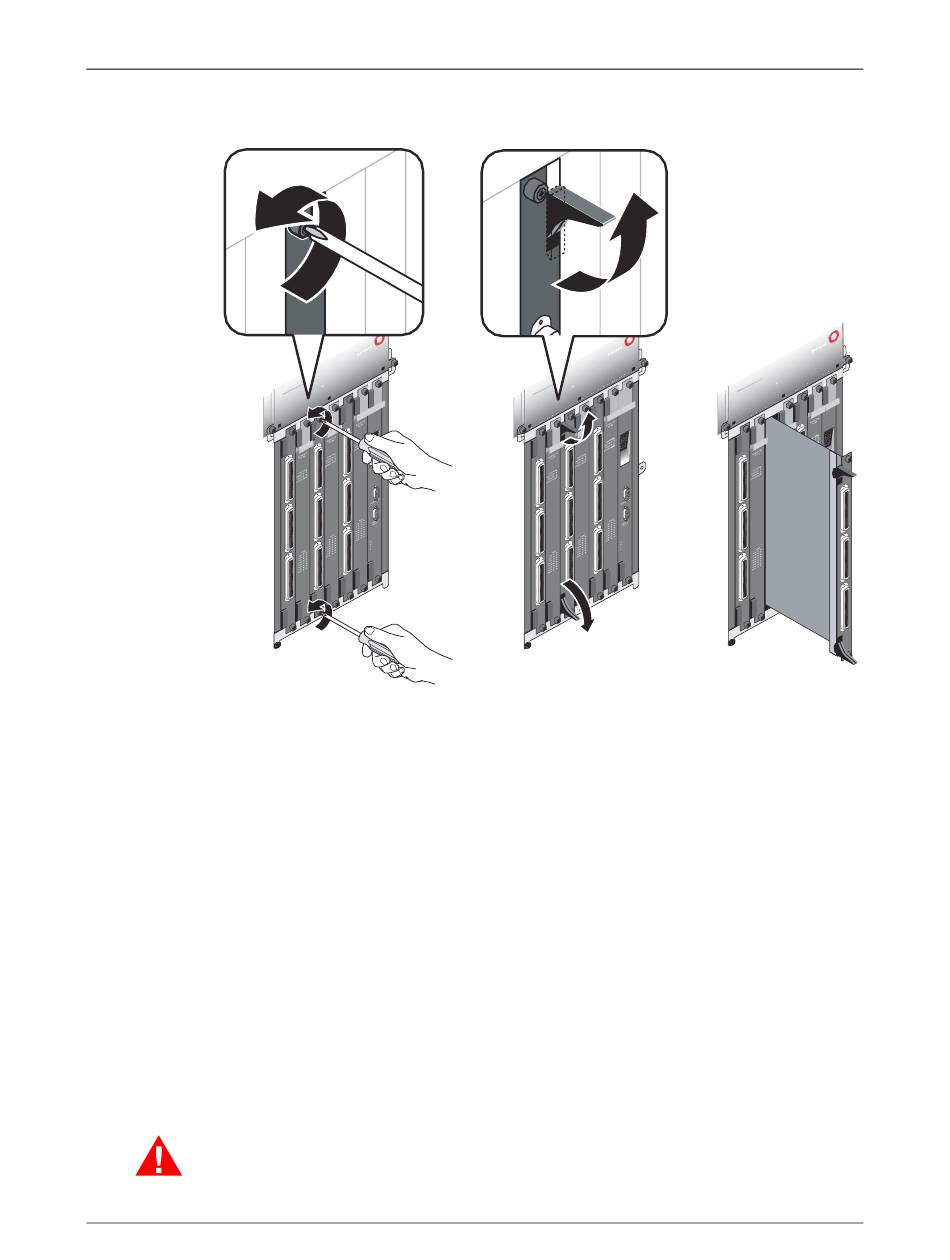

Figure 3-19. Removing LPMs
L I M
4
Lift the top and bottom card ejectors simultaneously to remove the module from
the unit. Lift both ejectors simultaneously to avoid damage to the module.
5
Carefully slide the LPM out of the unit and place it into an antistatic container.
6
Align the new or replacement LPM with the card guides and carefully slide the
module into the unit. Press firmly to be sure it has engaged the midplane
connectors.
7
Depress the ejectors simultaneously.
8
Using a number 2 Phillips screwdriver, secure the module into the unit by
tightening the thumbscrews on the LPM.
9
Reconnect the cables, as described in "Connections to the LPMs" on page 3-38.

Replacing the chassis cooling module

It is not necessary to remove power to replace the cooling module. However, the
cooling module must be replaced as quickly as possible to avoid overheating other
modules in the unit. Unpack the replacement cooling module unpacked so that it is
ready for installation before removing the cooling module being replaced.
Warning
not completely remove the cooling module until the internal fan has stopped
moving, as detailed in step 3 and step 4 below.
